Description

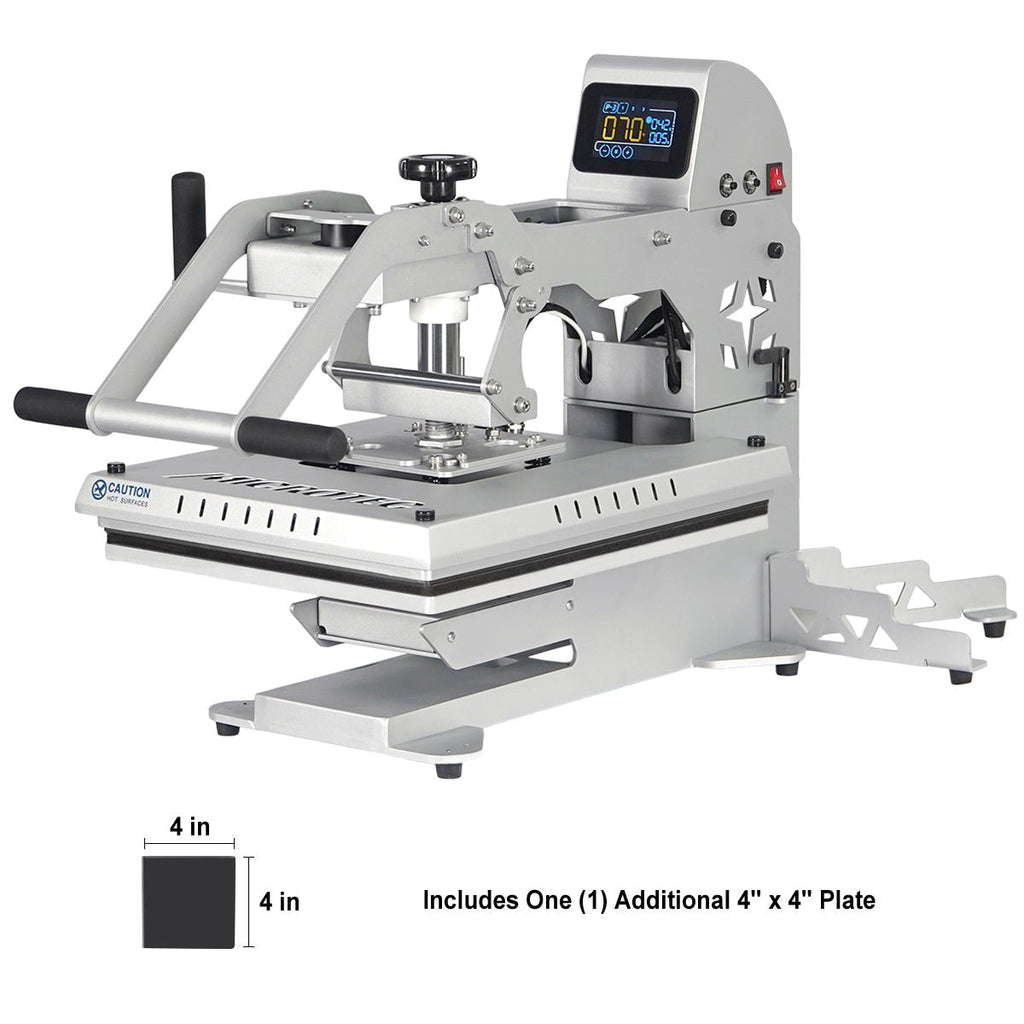

The TITAN T1620-PRO is a practical and efficient swing-away heat press designed for professional textile finishing and transfer printing. With a 16" x 20" working area, it is well suited for larger designs and everyday production needs.

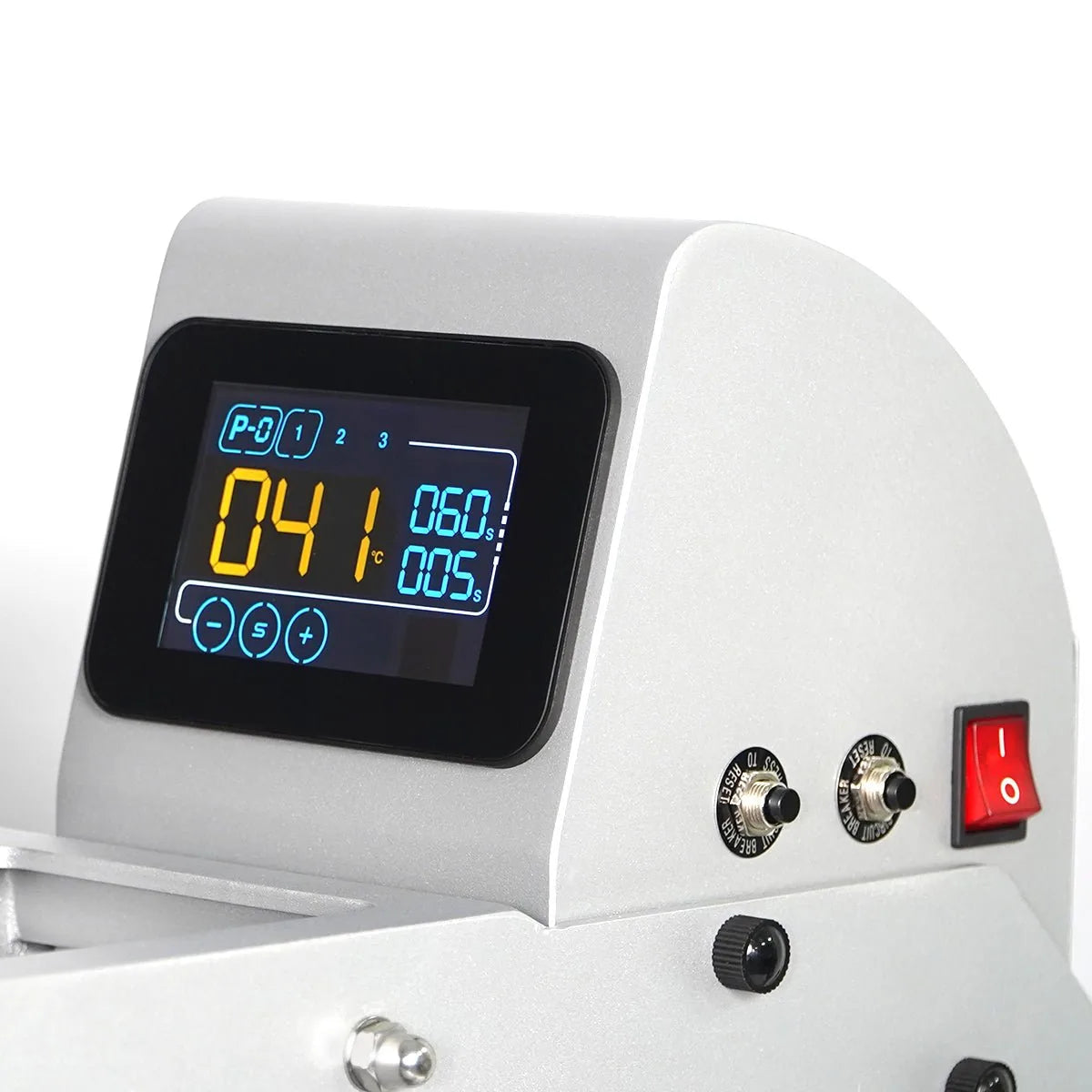

The T1620-PRO supports all common transfer applications, including flex, flock, sublimation, and DTF transfers. Its advanced touchscreen control system features pressure detection and three memory preset functions, allowing users to save commonly used settings for faster and more convenient operation. Time and temperature adjustments are simple and intuitive, helping improve daily consistency and ease of use.
Built with a modular design, the machine is easy to adapt for different production needs. It can also be upgraded with optional accessories such as interchangeable platens, slide extension, or a membrane heating plate for greater flexibility and productivity.
Our heat press is designed with two circuit breakers to enhance system reliability. This redundant configuration ensures that if one breaker becomes inoperative, the second breaker can maintain protection and allow continued operation. This design reduces unexpected downtime and supports stable, uninterrupted production
With auto-open function, adjustable pressure, and a high-quality heating platen with protective cover, the TITAN T1620-PRO is a reliable solution for users who want solid performance, easy operation, and upgrade flexibility in one machine.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up to 120 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1700W |
| Voltage | 120V |
| Amps | 14.2A |
| Machine Dimensions | 38.6" x 19.7" x 32.5" |
| Shipping Size | Carton 1: 25" x 22" x 16" · Carton 2: 35" x 19" x 27" |
| Net Weight | 127 lb |
| Shipping Weight | 163 lb |
| Method of Operation | Auto-Open & Swing-Away |
| Machine Line | TITAN |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
See it in action
Key features

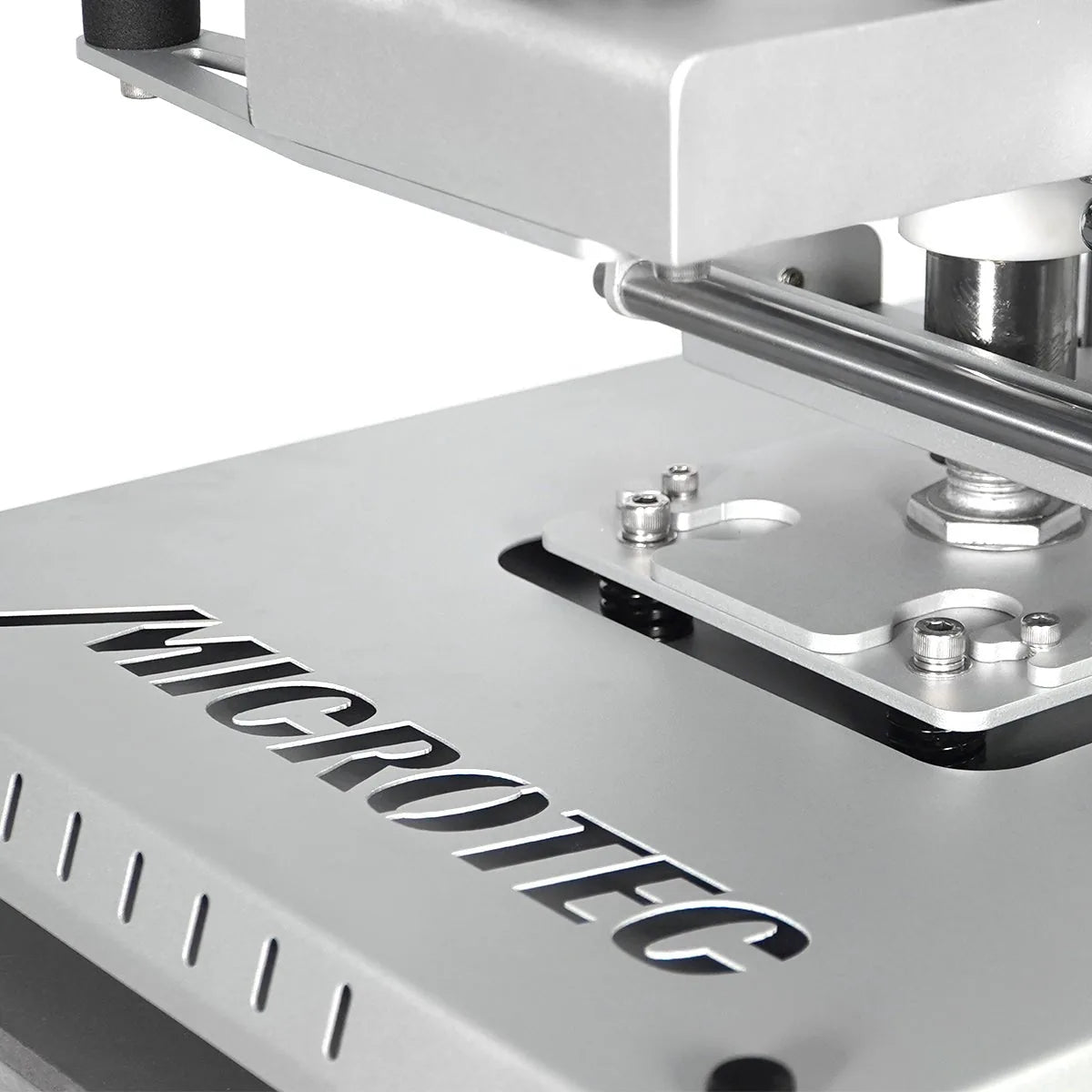

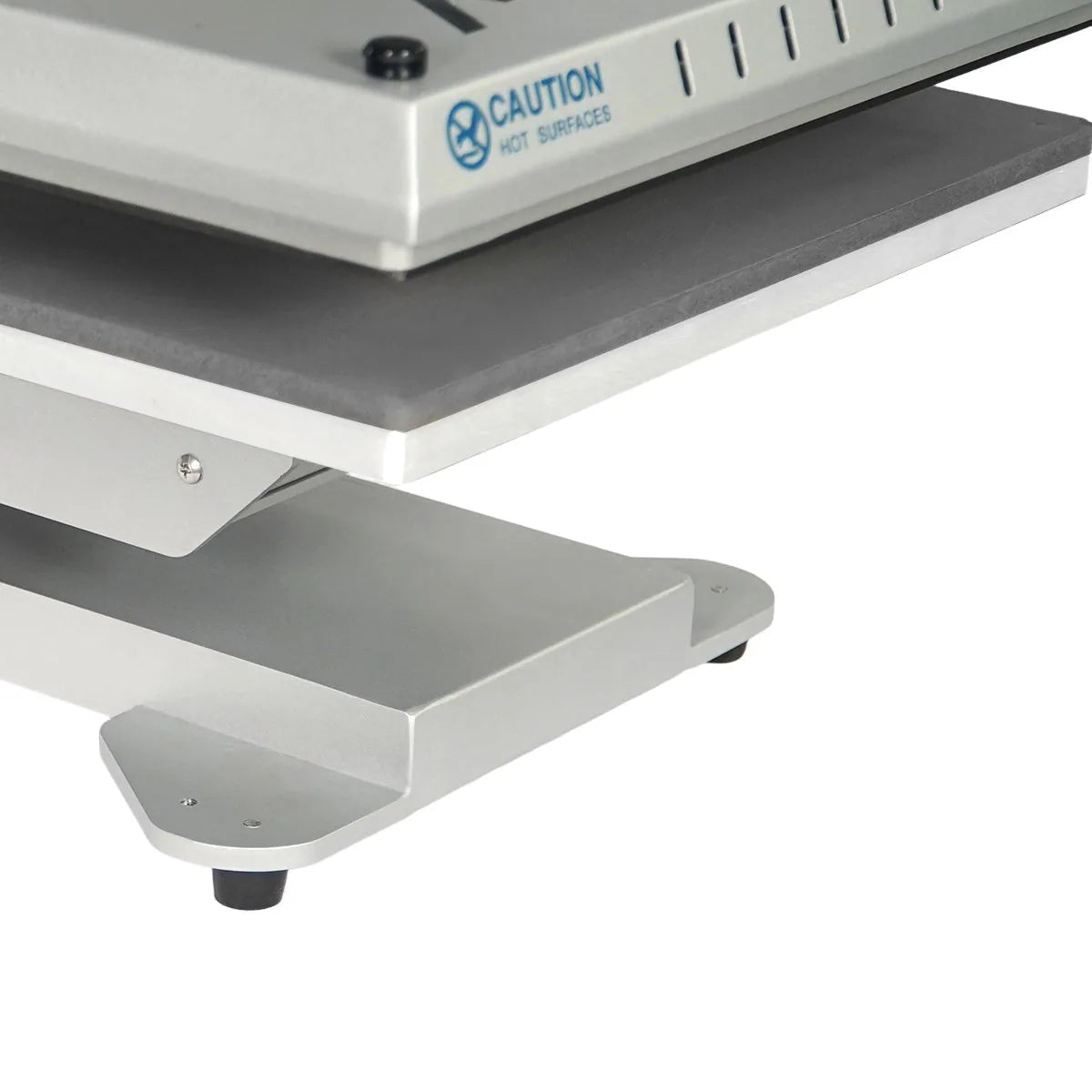

- 21% thicker platen than the Vector series 21% thicker platen than the Vector series | More thermal mass, flatter heat across the surface, faster recovery between presses.
- Reinforced Titan frame Reinforced Titan frame | Built for continuous production, not intermittent use.

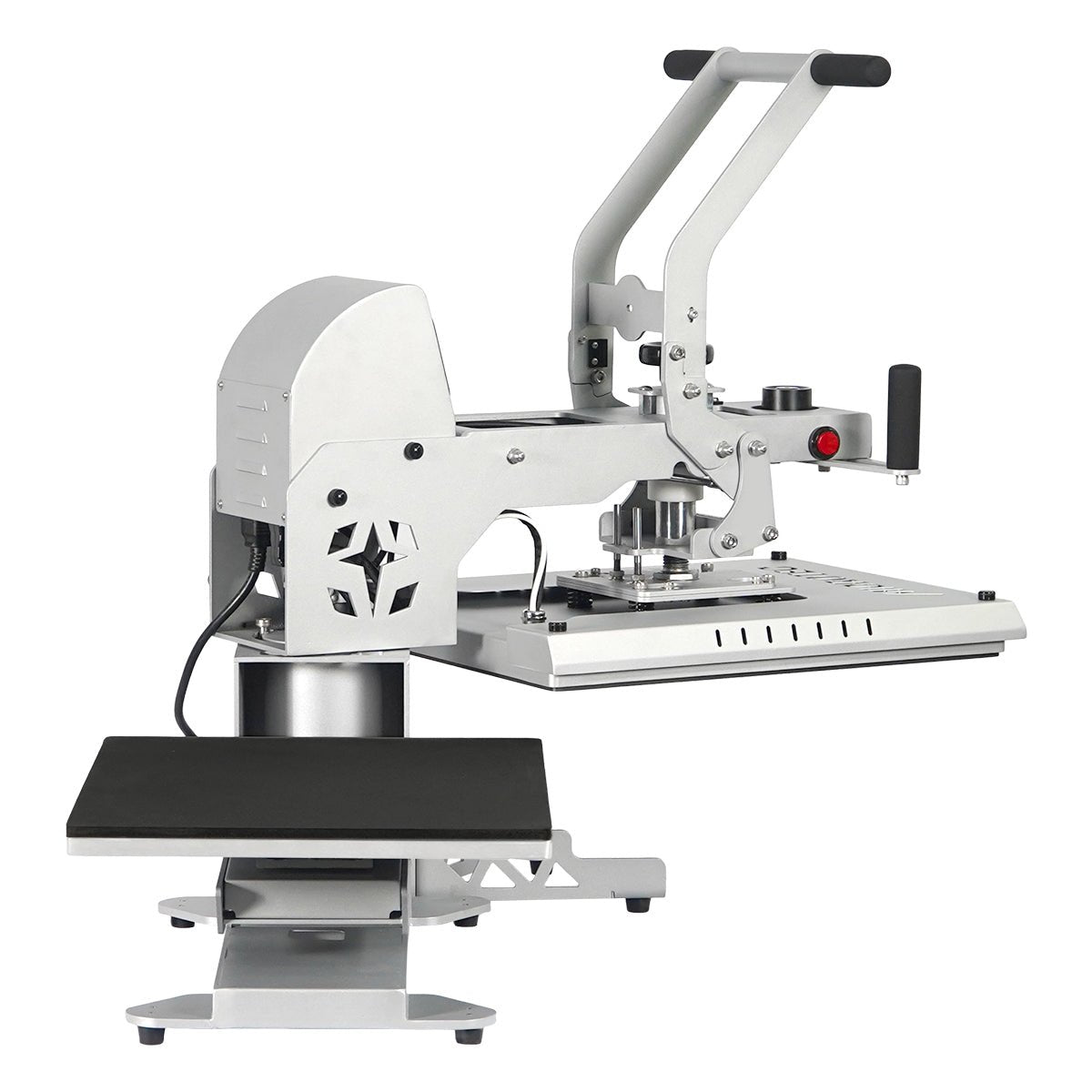

- Swings clear past 100 degrees Swings clear past 100 degrees | The upper platen moves fully off the work area, so nothing is suspended over your hands.

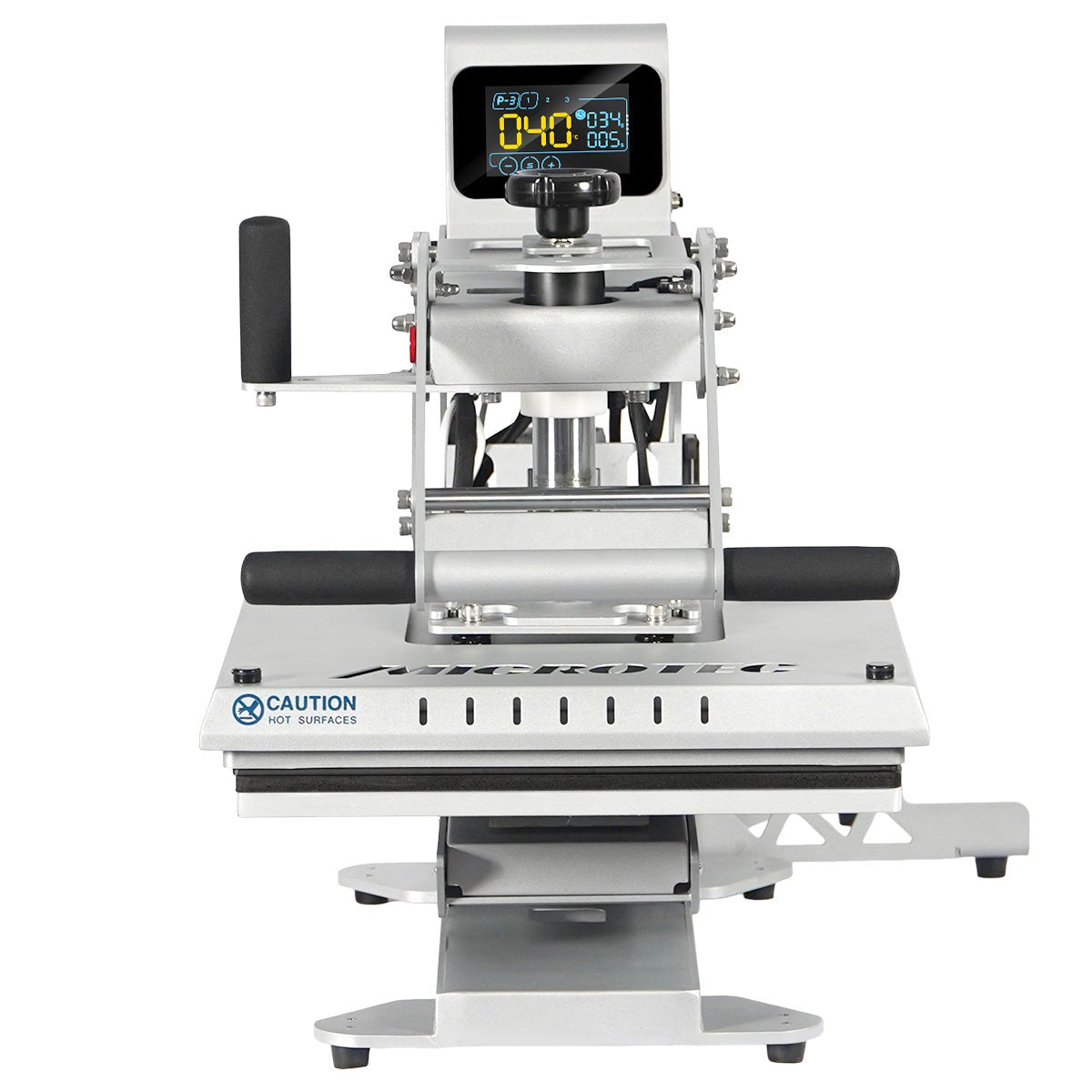

- Straight vertical press Straight vertical press | Even pressure across rigid substrates like wood, tile and crystal.

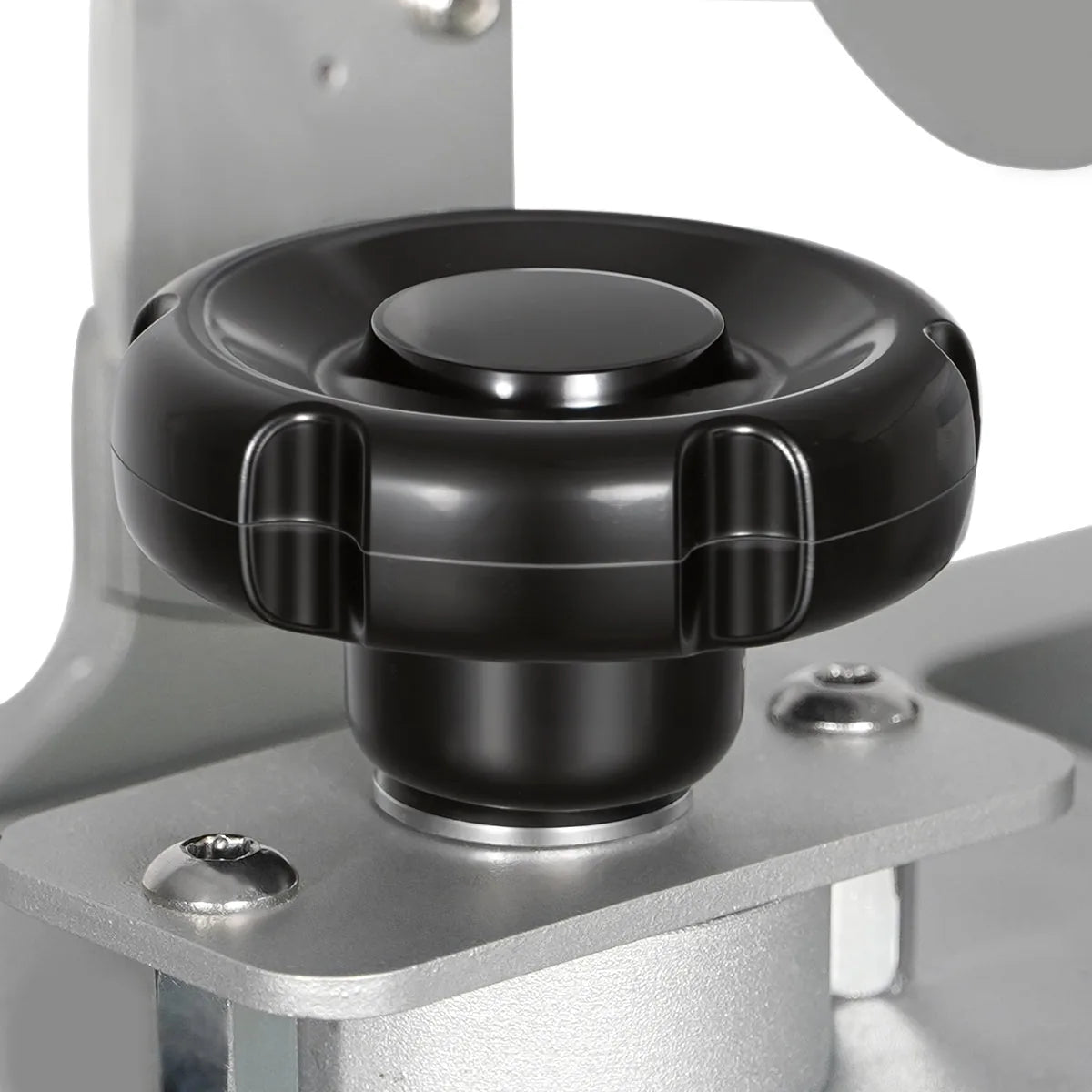

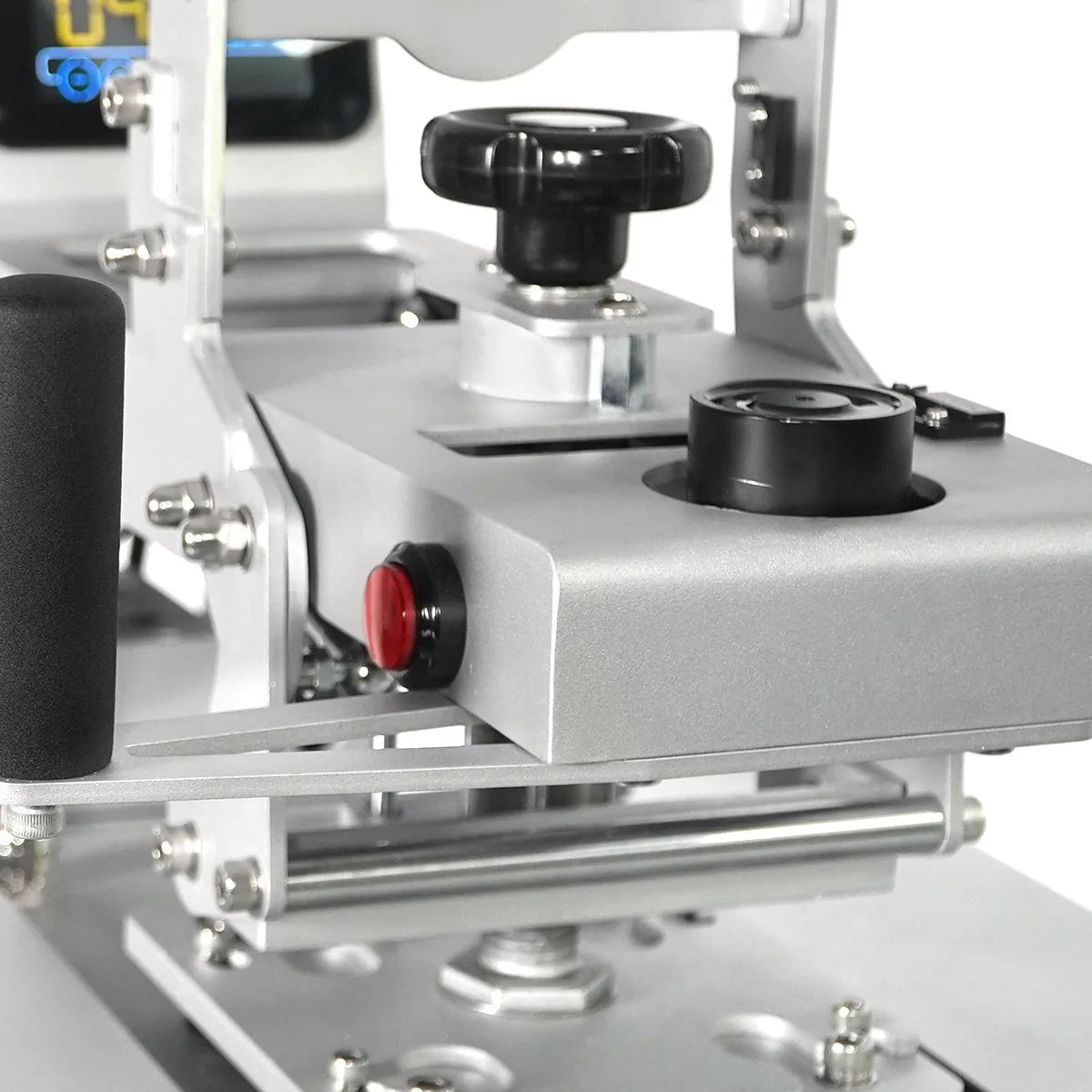

- Pressure readout Pressure readout | Record the setting that worked and reproduce it exactly next time.

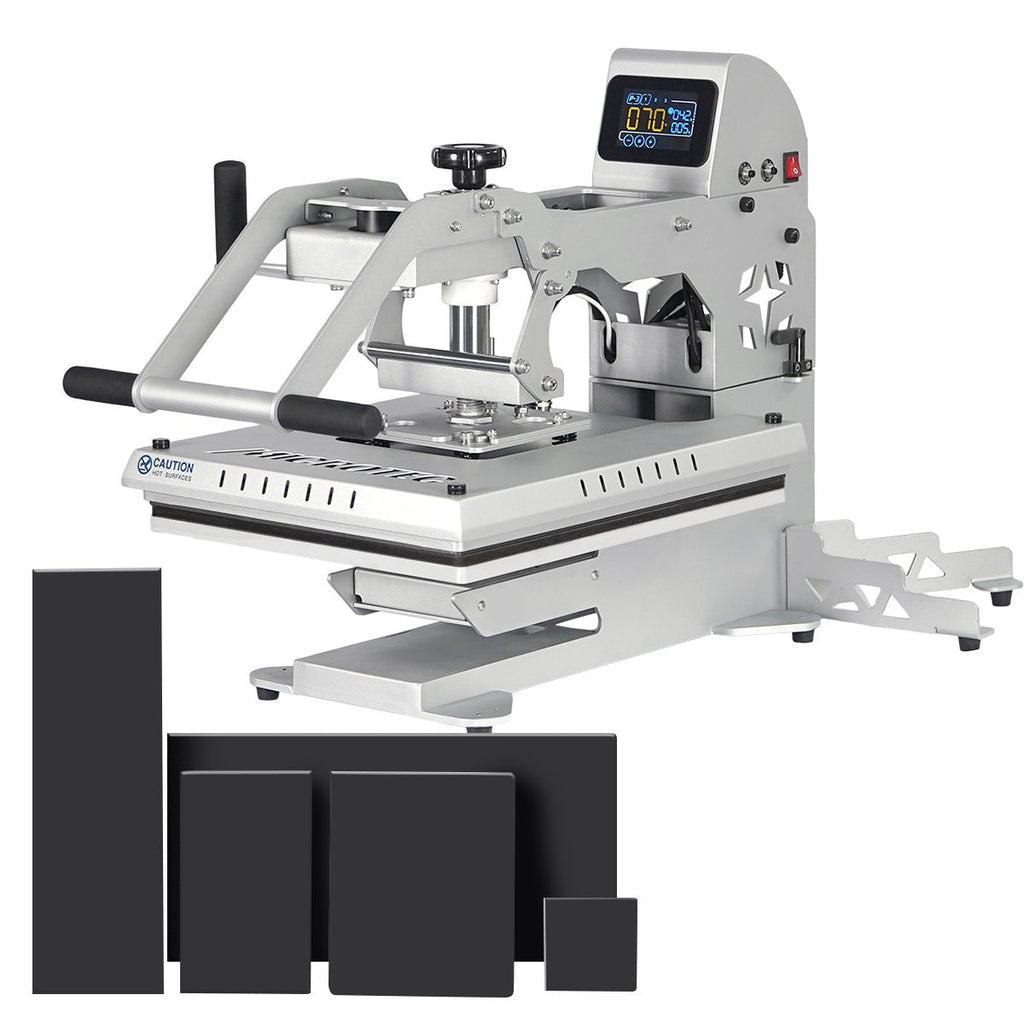

- Up to 12 interchangeable lower platens Up to 12 interchangeable lower platens | Sleeves, pant legs, bags, labels, youth sizes and awkward placements. Platens sold separately.
Calculate your return on investment
Enter your numbers to estimate output, profit and how quickly this machine pays for itself.
