Description

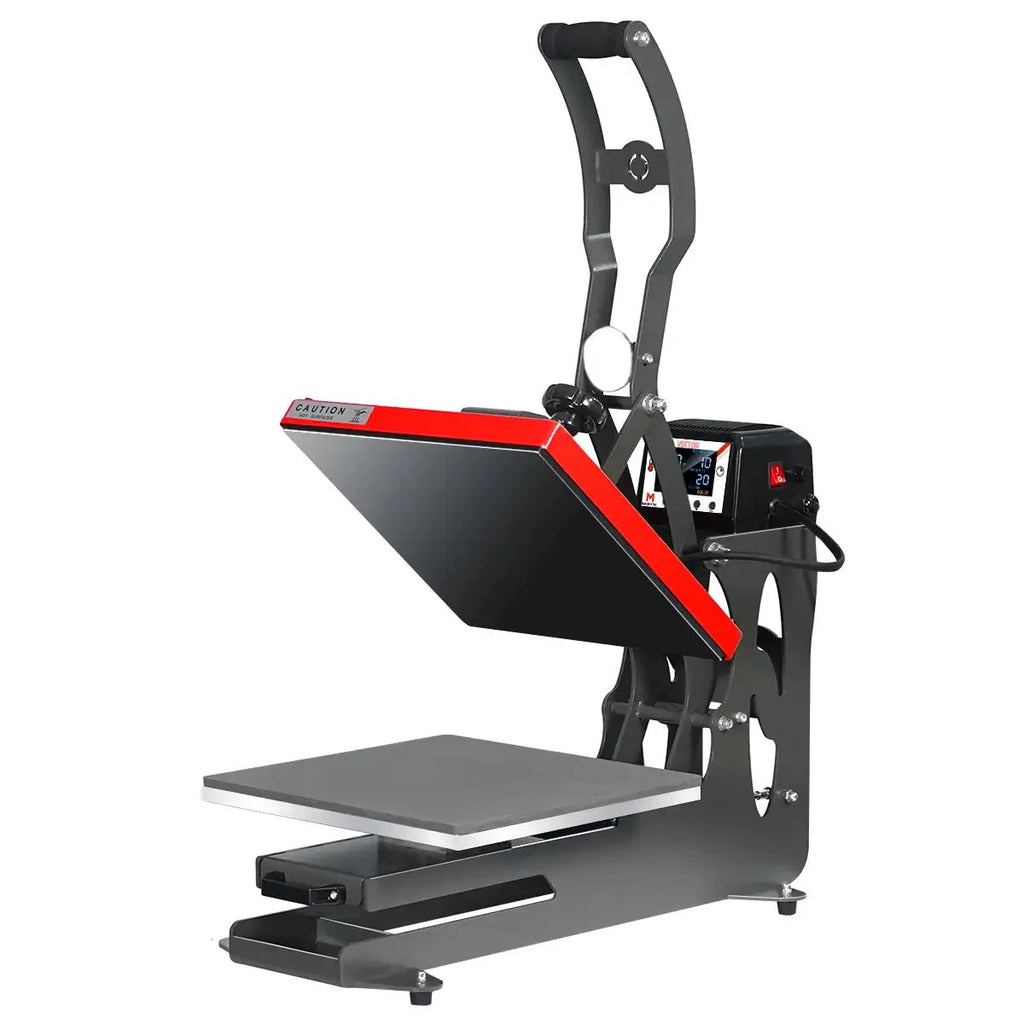

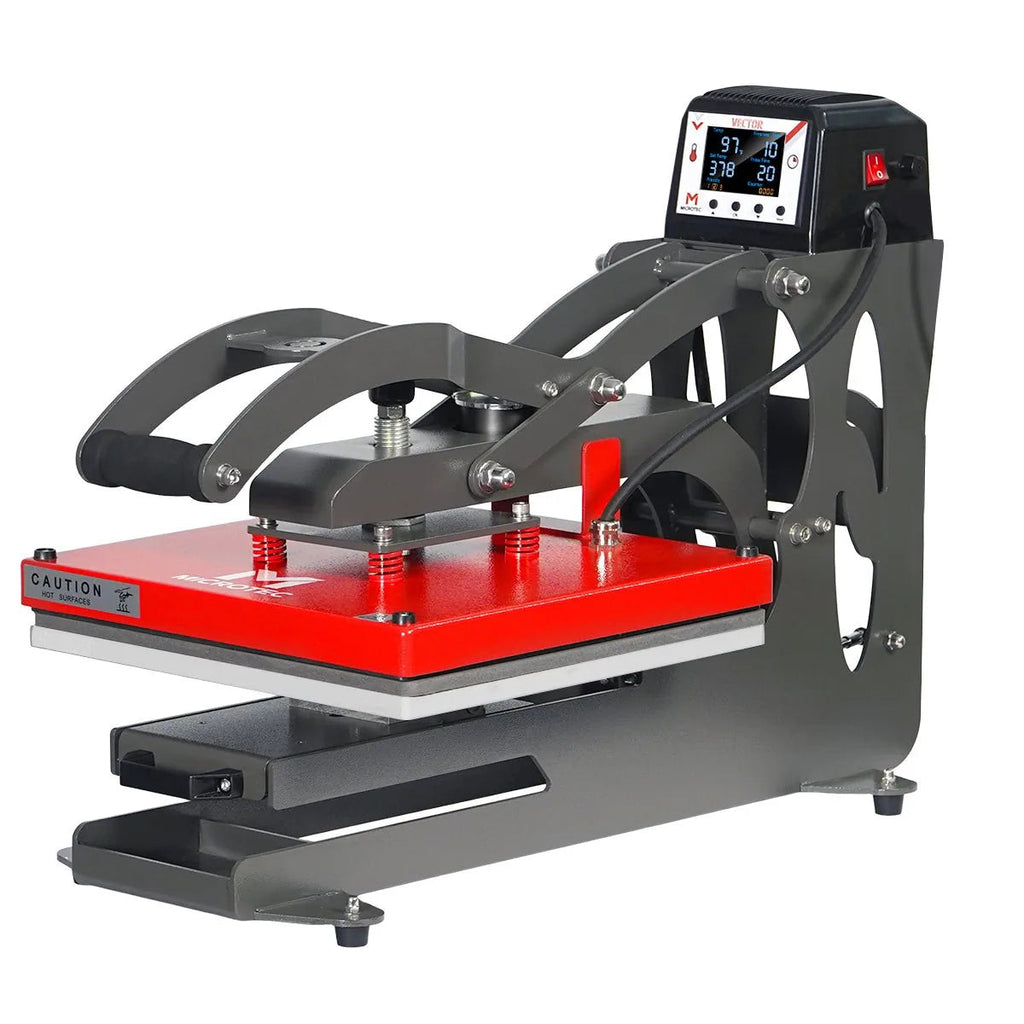

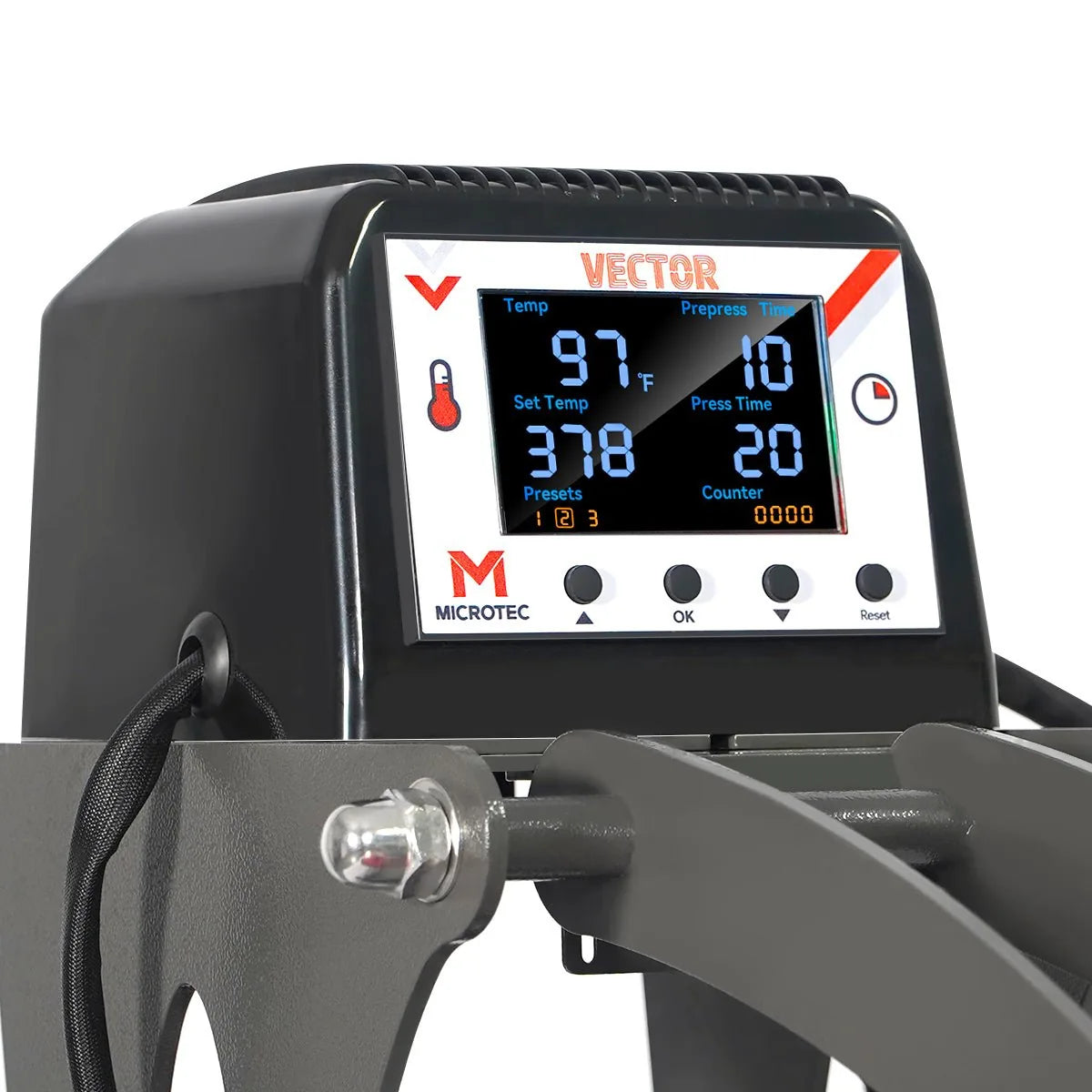

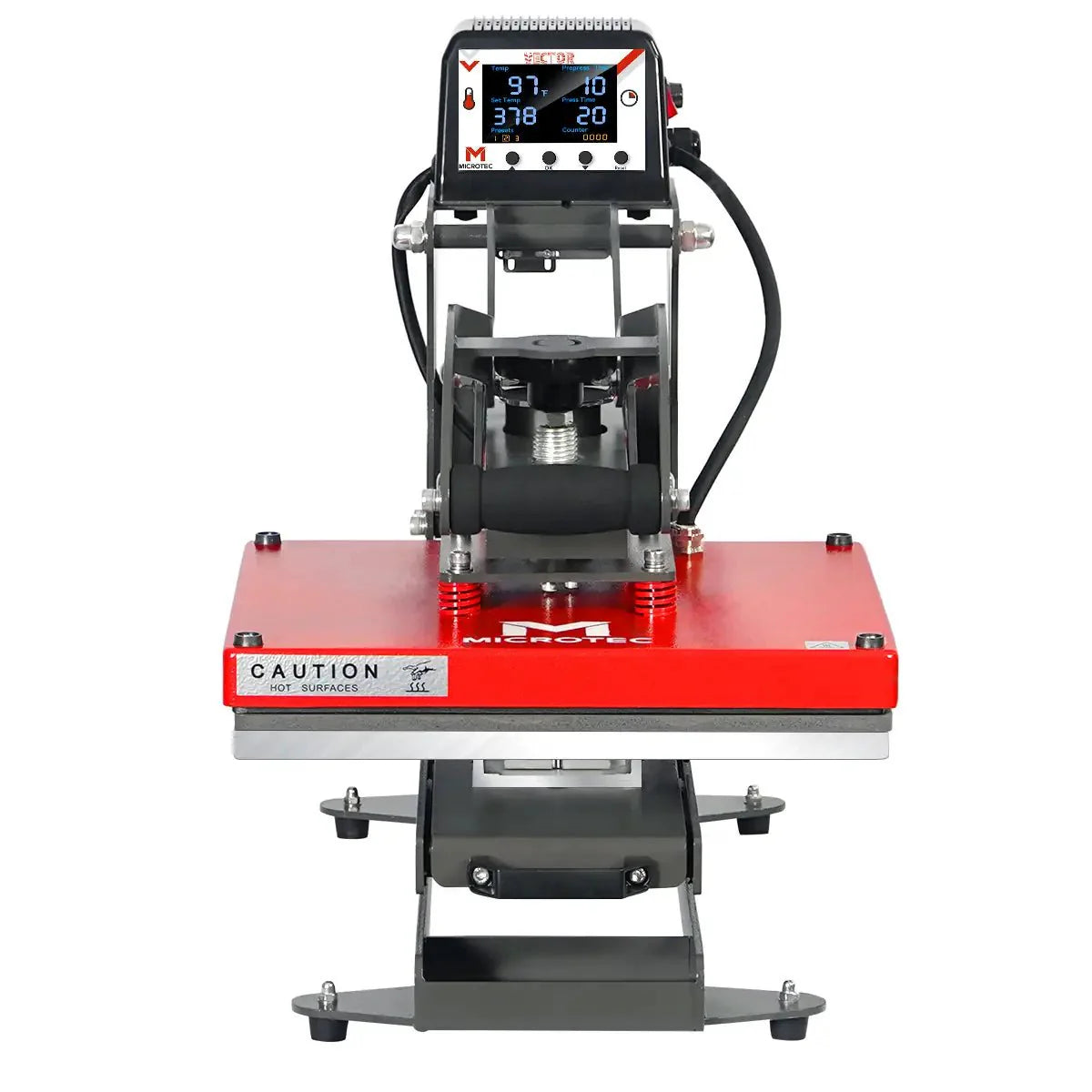

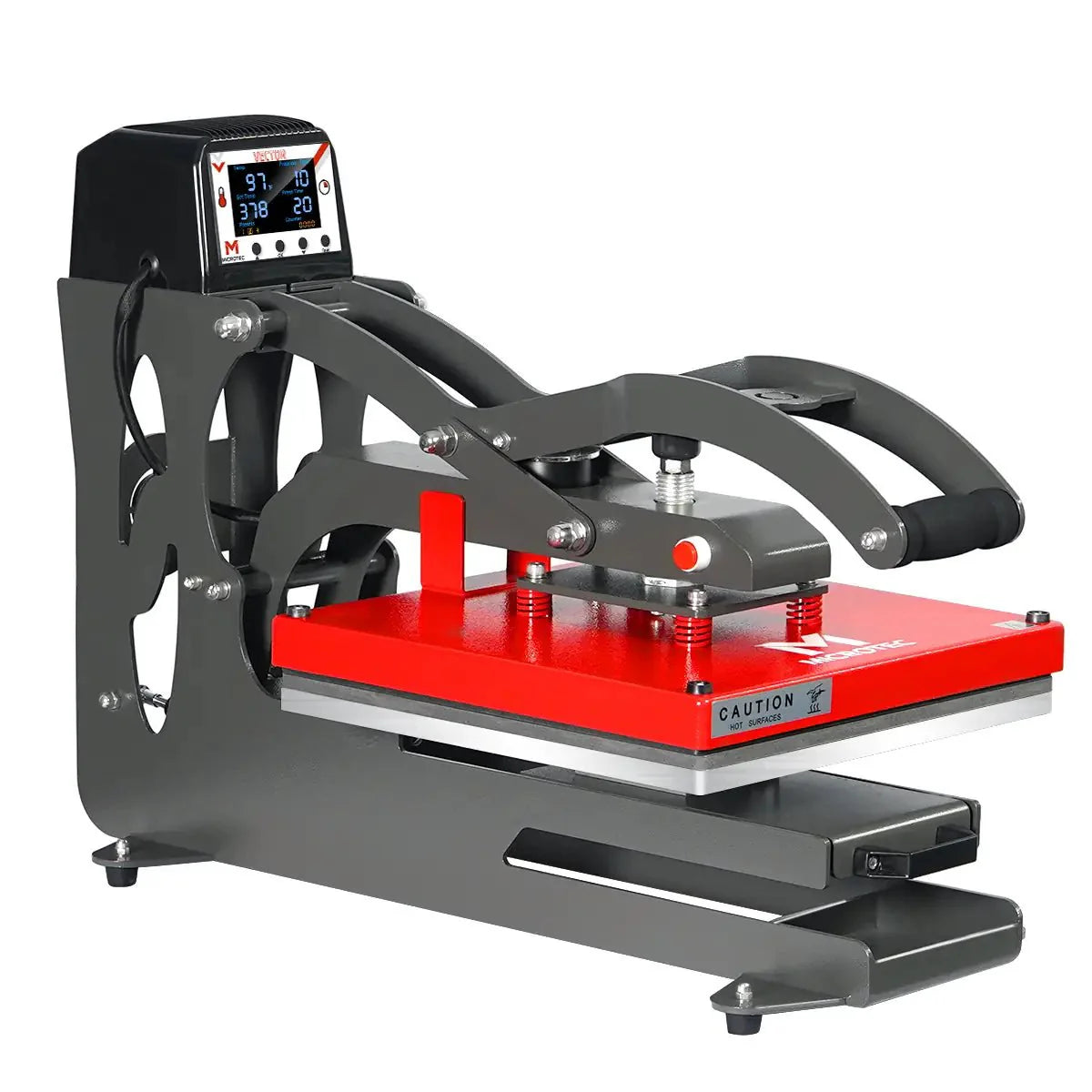

The Vector Pro Auto-Open 15” x 15” Clam Heat Press is built for decorators who want professional results, easier operation, and greater flexibility in one efficient machine. Its auto-open design helps reduce operator fatigue during long production runs, while digital controls provide accurate time and temperature settings for more consistent transfer performance.
With a spacious 15” x 15” platen size, the Vector Pro offers the stability and working area needed for larger jobs without taking up unnecessary space. It is well suited for small production shops, retail locations, and home-based businesses that need reliable output in a compact format.
The Vector Pro also stands out with its larger threadable clearance, making garment loading quicker and more convenient, and its quick-change lower platen system, which allows fast platen swaps for different applications. Combined with even heat, dependable pressure, and a workflow-focused design, Vector Pro is made to help operators work faster and more efficiently.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 14.9" x 14.9" |
| Production Capacity | Up to 120 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1500W |
| Voltage | 120V |
| Amps | 12.5A |
| Machine Dimensions | 15.2" x 29.9" x 39.4" |
| Shipping Size | 35.8" x 20.7" x 26" |
| Net Weight | 101 lb |
| Shipping Weight | 123.2 lb |
| Method of Operation | Auto-Open & Slide-Out |
| Machine Line | VECTOR |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
See it in action
Key features
- Reinforced Pro frame Reinforced Pro frame | Heavier structure than the standard Vector, built to hold alignment through daily production rather than occasional use.
- Auto-open release Auto-open release | Opens itself at zero, which takes the repetitive strain out of long runs.
- More threading clearance More threading clearance | Extra room above the platen to work a garment on and line up a DTF transfer before you commit.

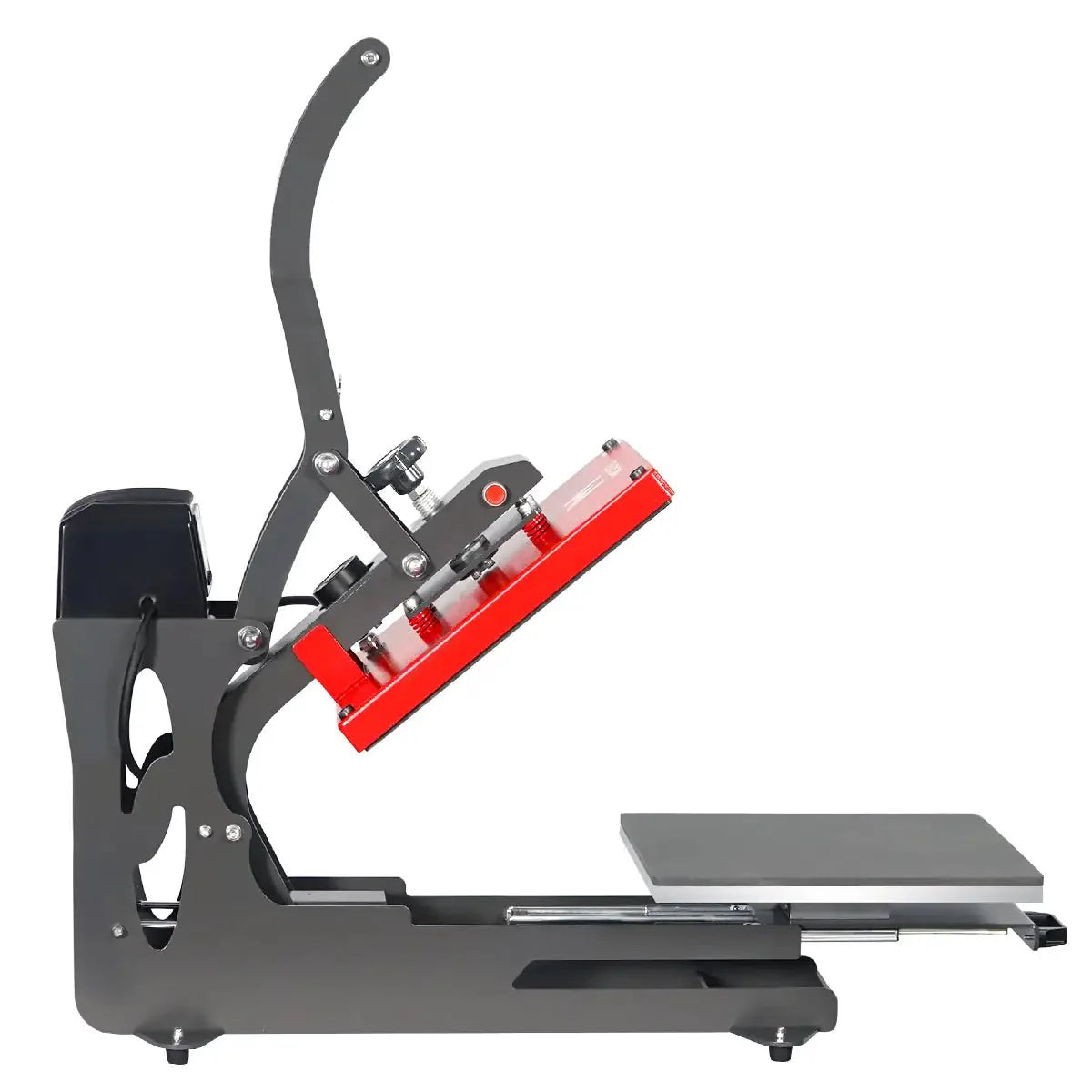

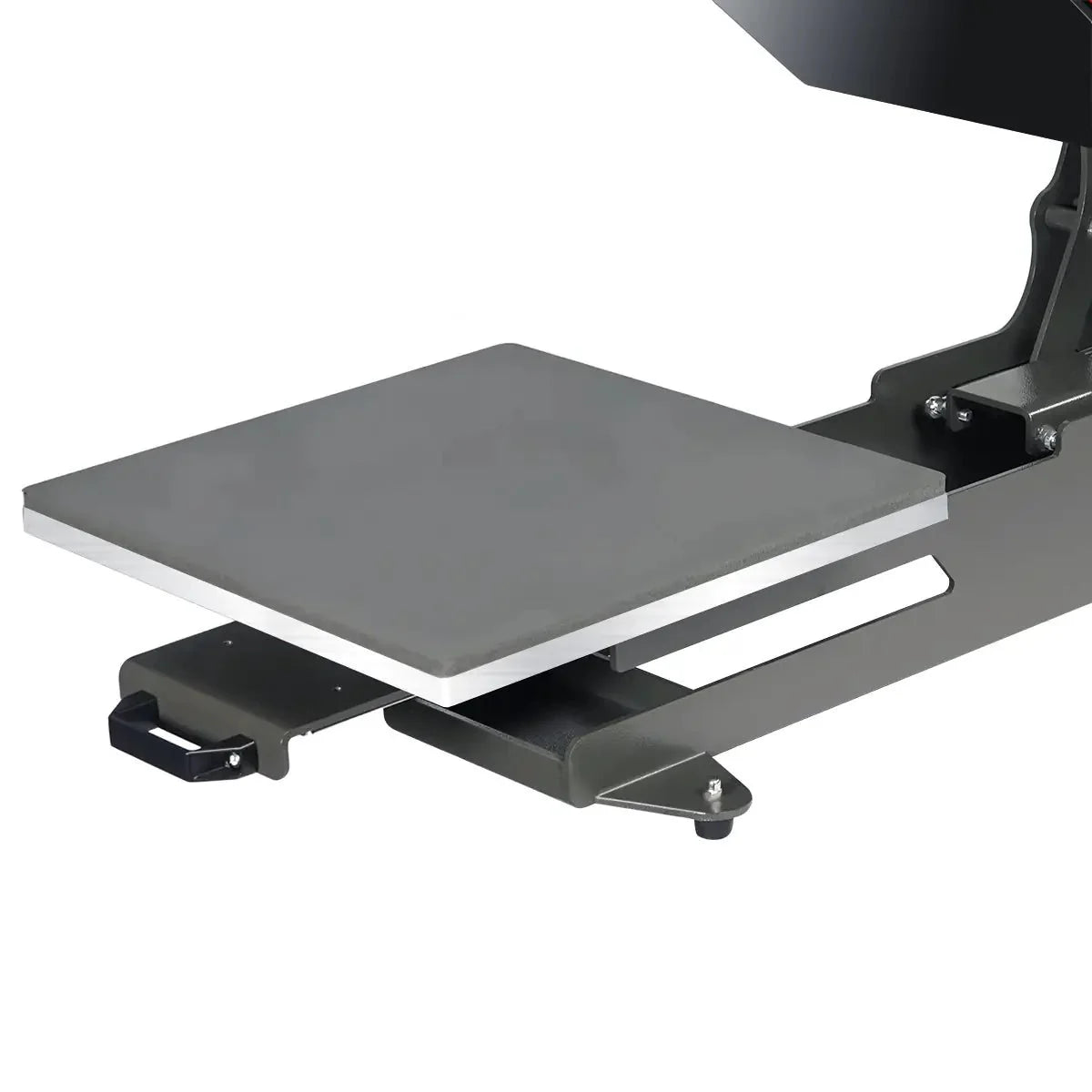

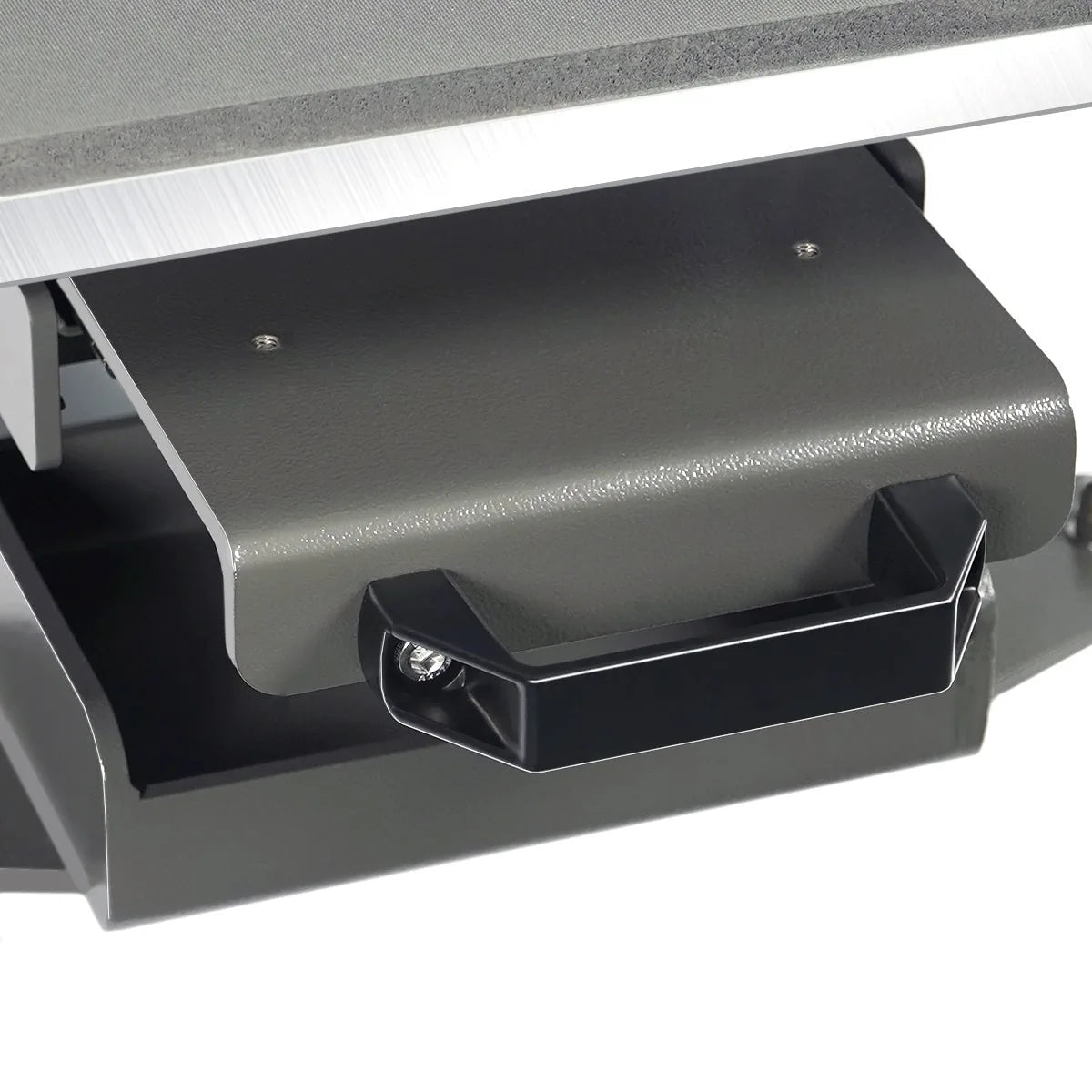

- Slide-out lower platen Slide-out lower platen | Load away from the heat, then slide it home.

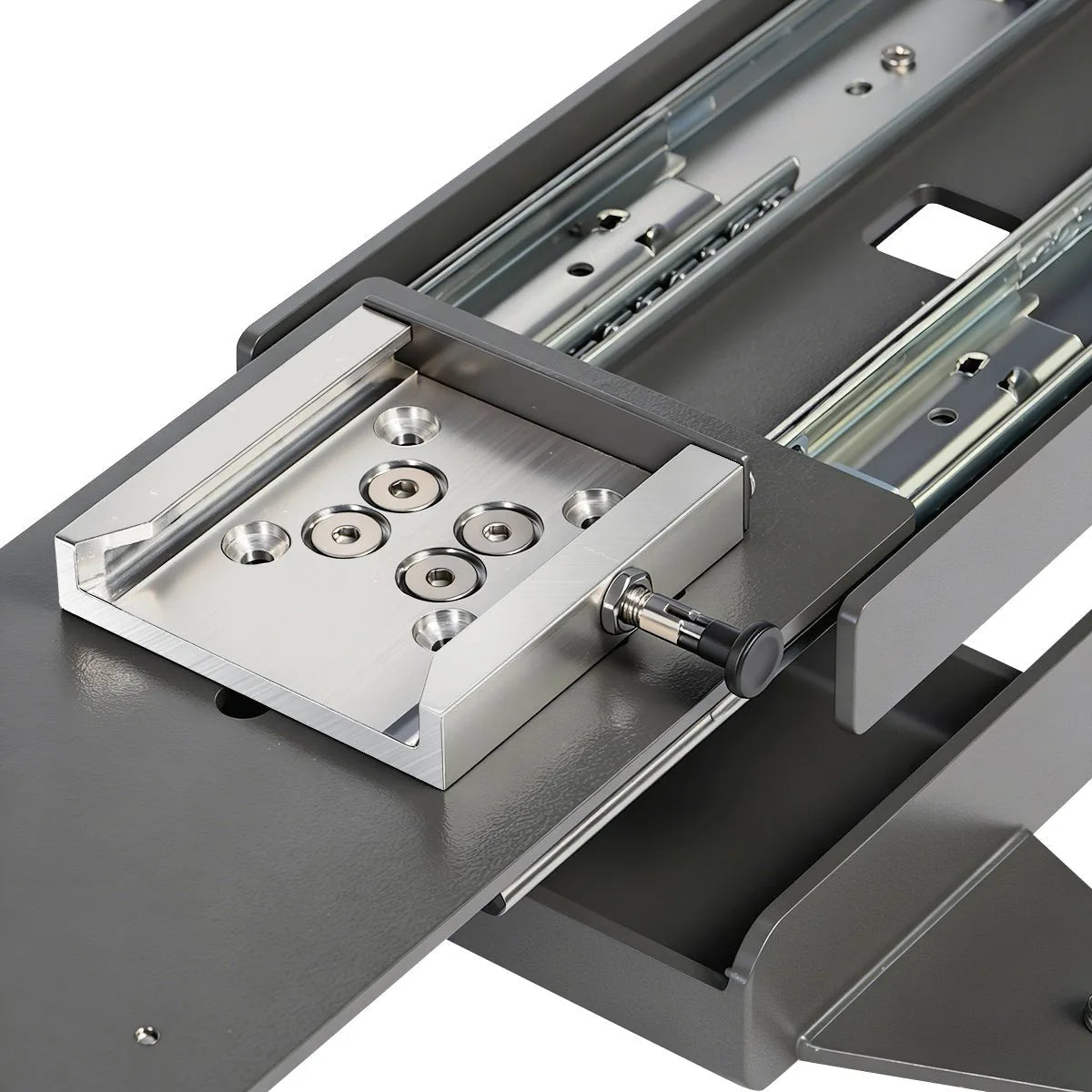

- Up to 12 interchangeable lower platens Up to 12 interchangeable lower platens | Sleeves, pant legs, bags, labels, youth sizes and awkward placements, all on one machine. Platens sold separately.
