Description
Description

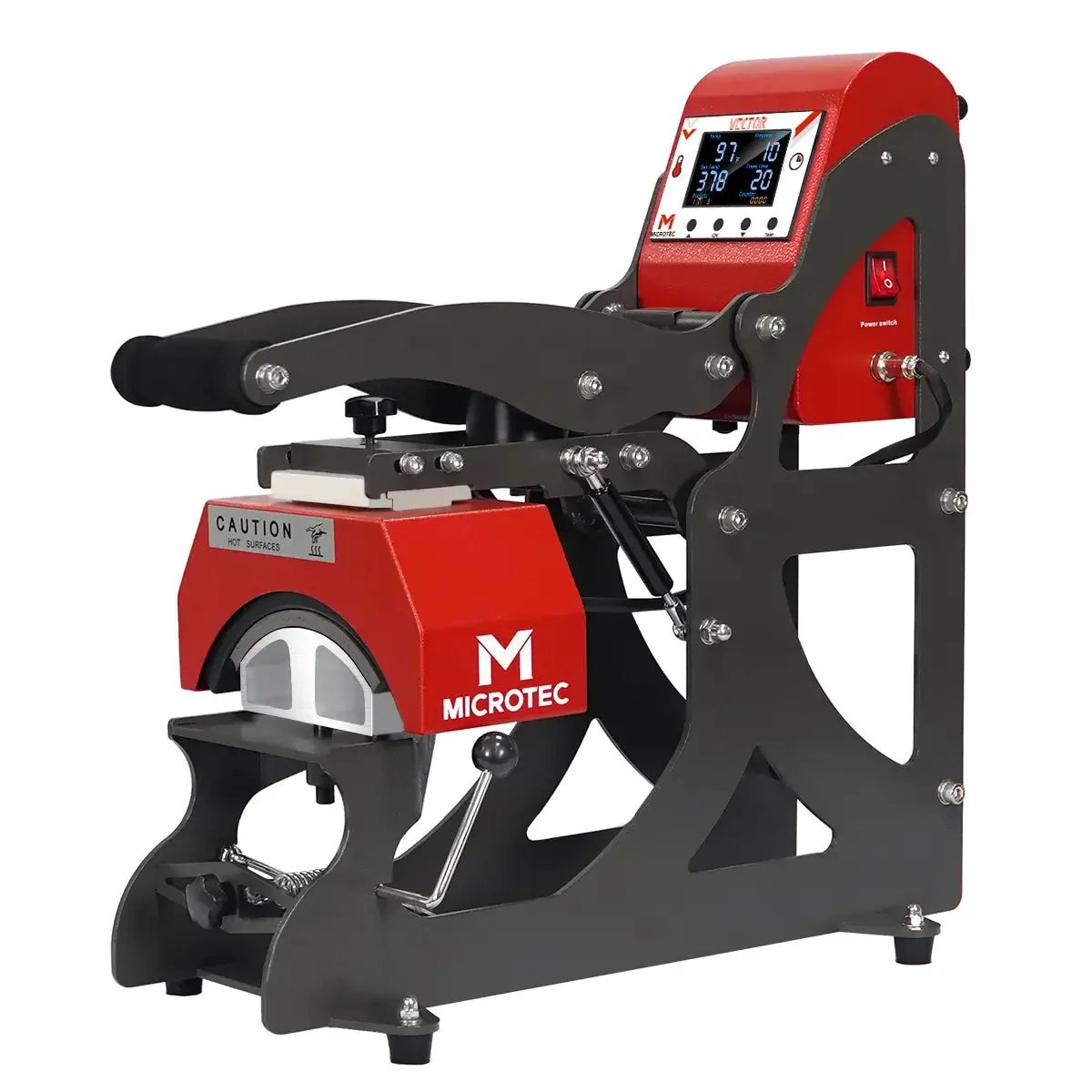

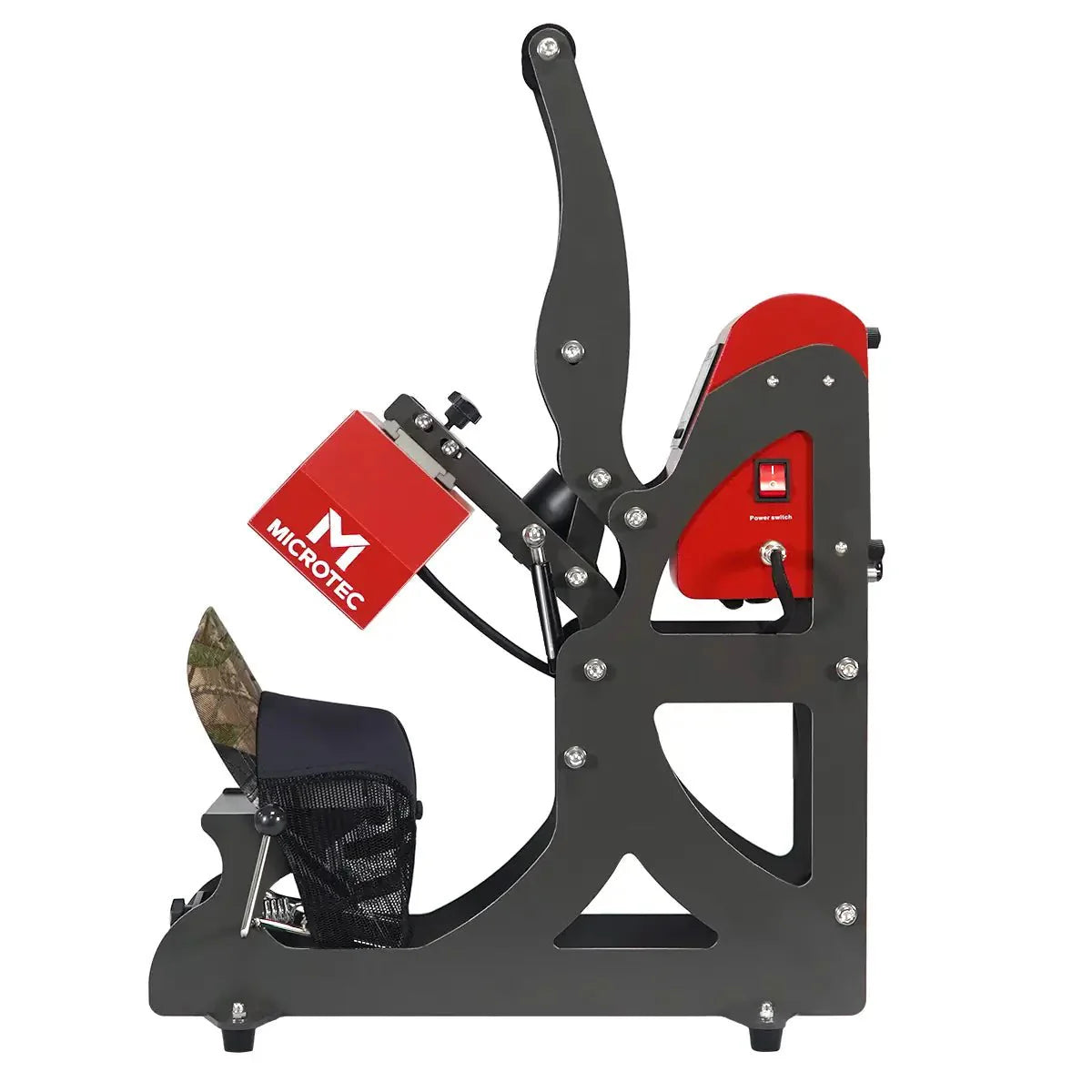

The VECTOR VCap Heat Press is a compact, versatile cap press designed for consistent results, easy operation, and greater application flexibility.

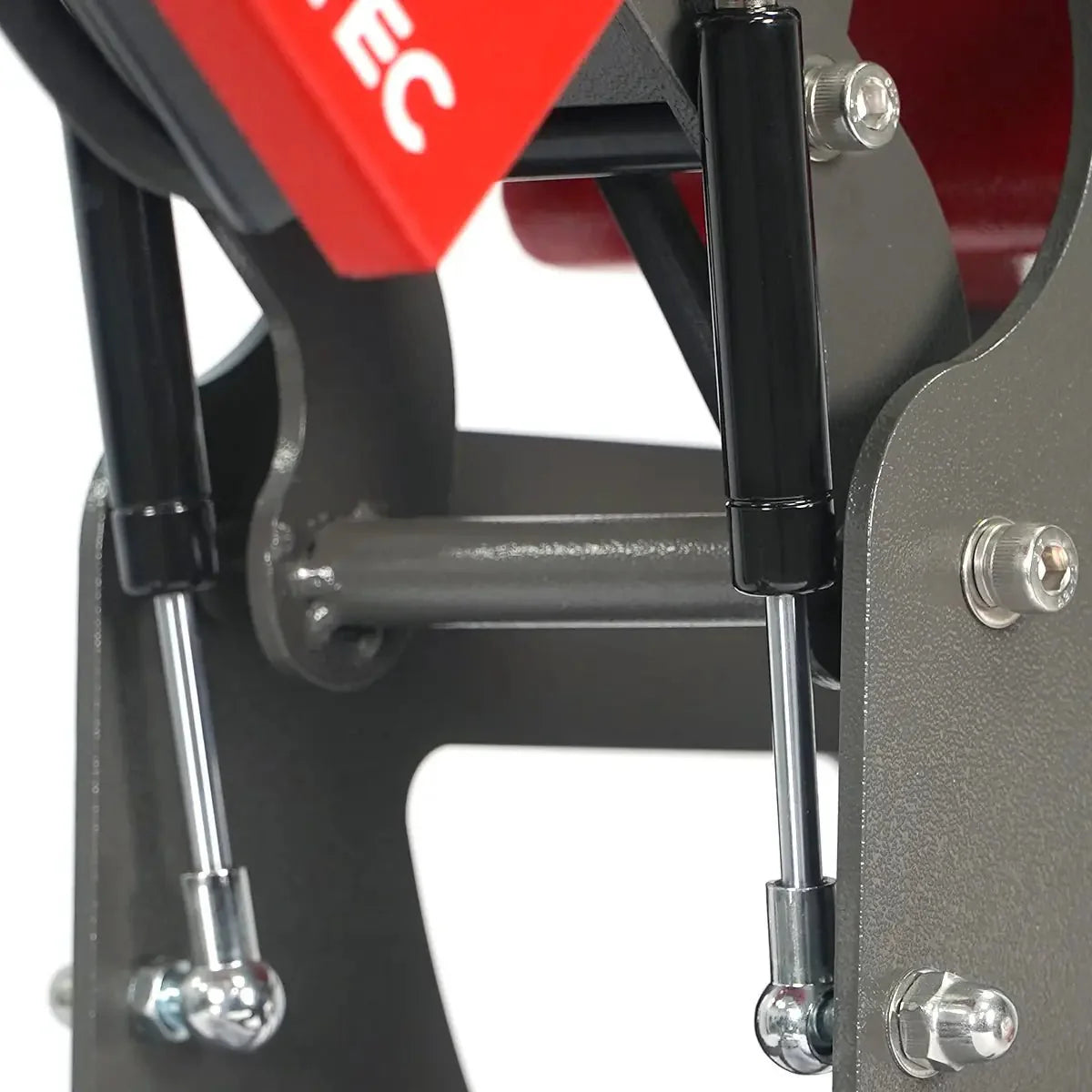

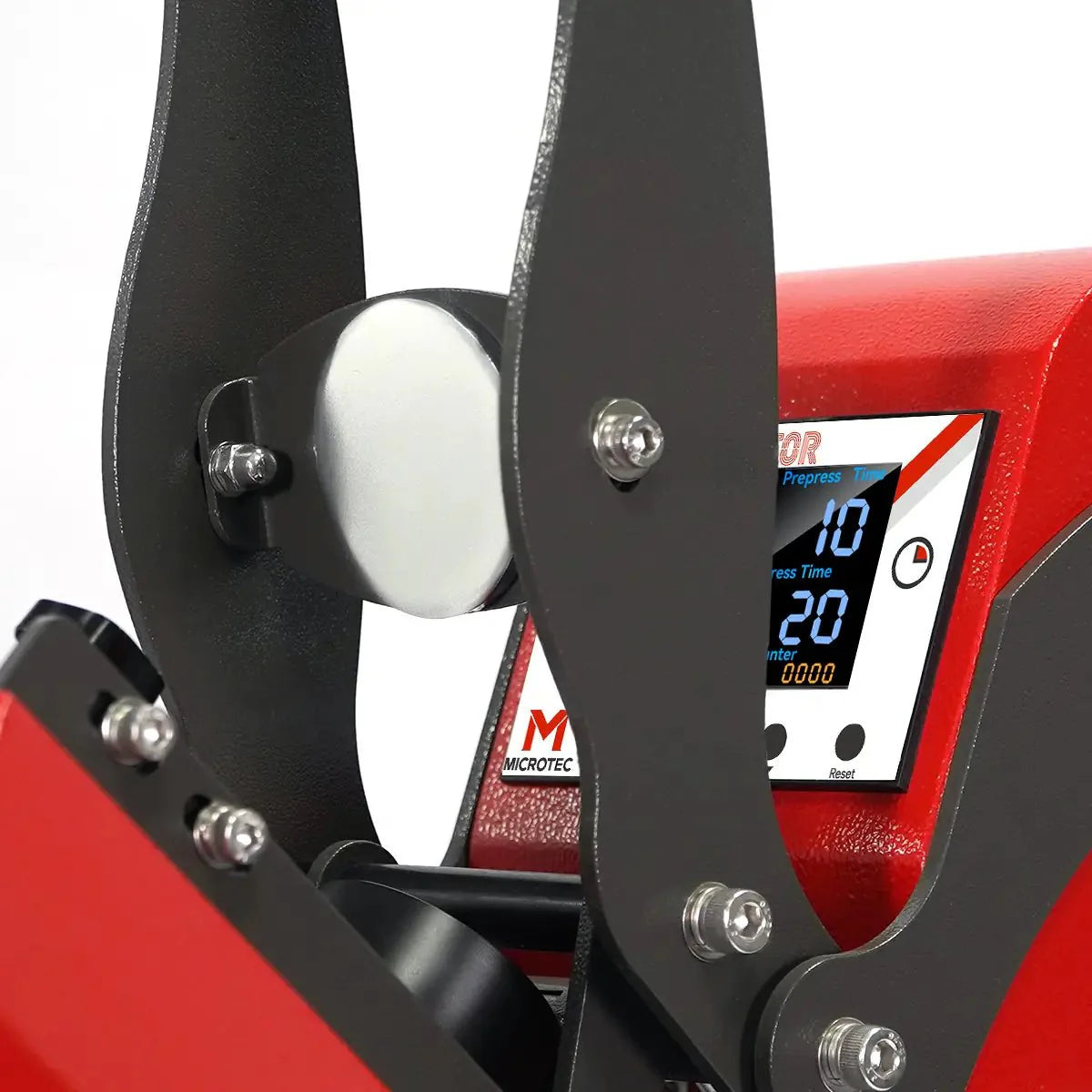

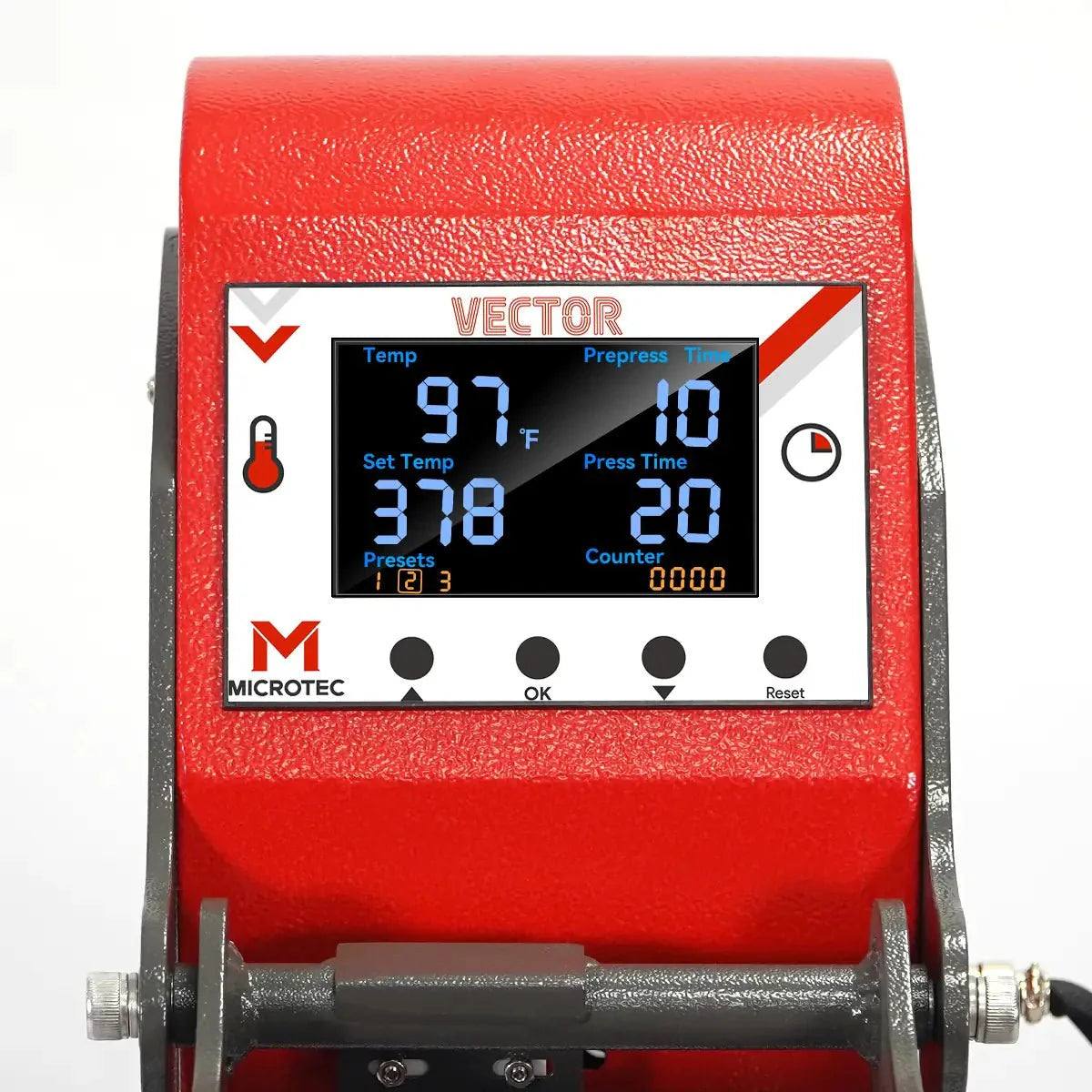

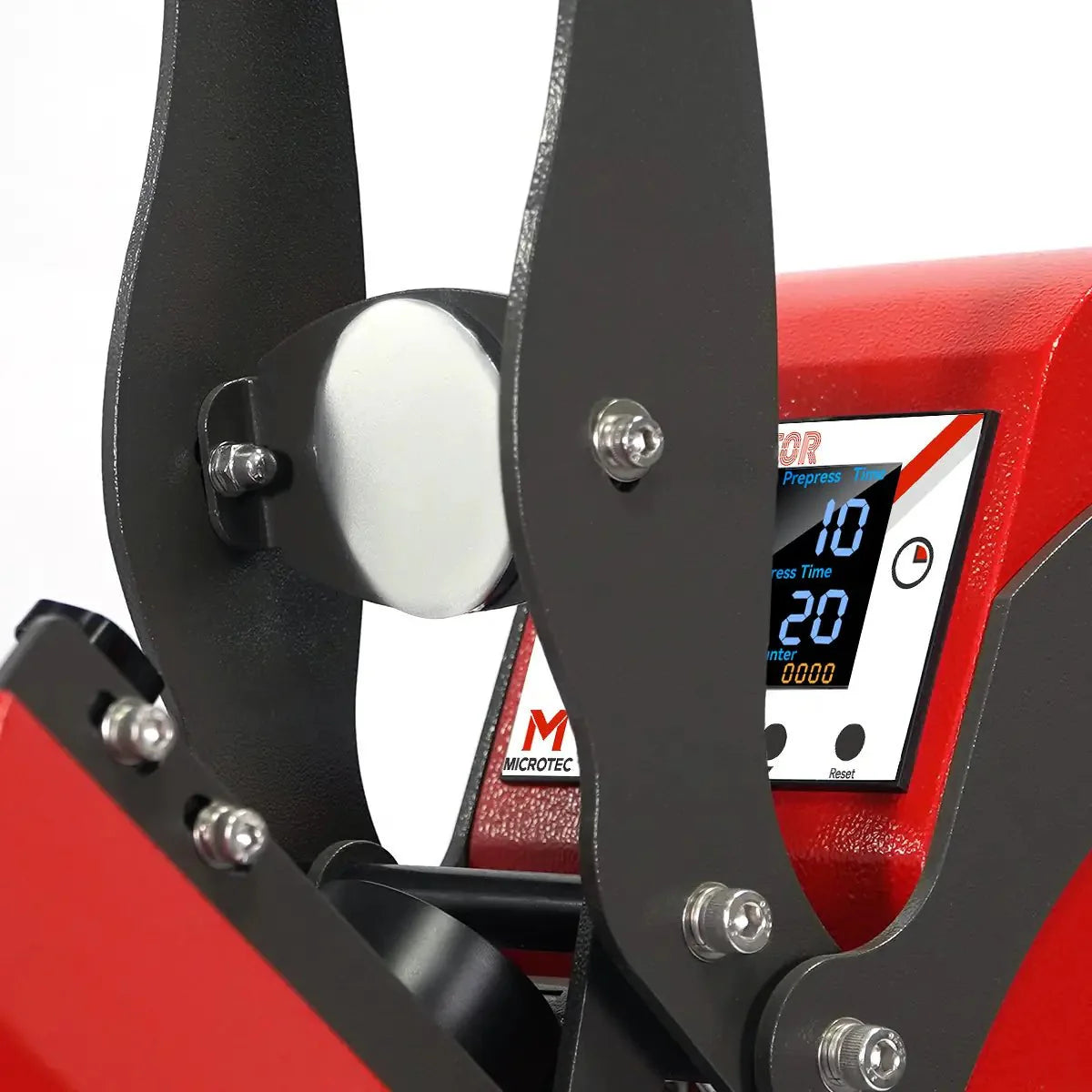

Equipped with enhanced time and temperature controls and a gas shock assisted opening system, the VCap helps improve workflow, reduce effort, and support smooth daily production. The press opens approximately 50 degrees, giving operators easier access when loading and unloading caps.
The VECTOR VCap features a 4" x 9" upper heat platen and an adjustable low-to-high pressure clamp, allowing users to adjust pressure for different materials and transfer needs.

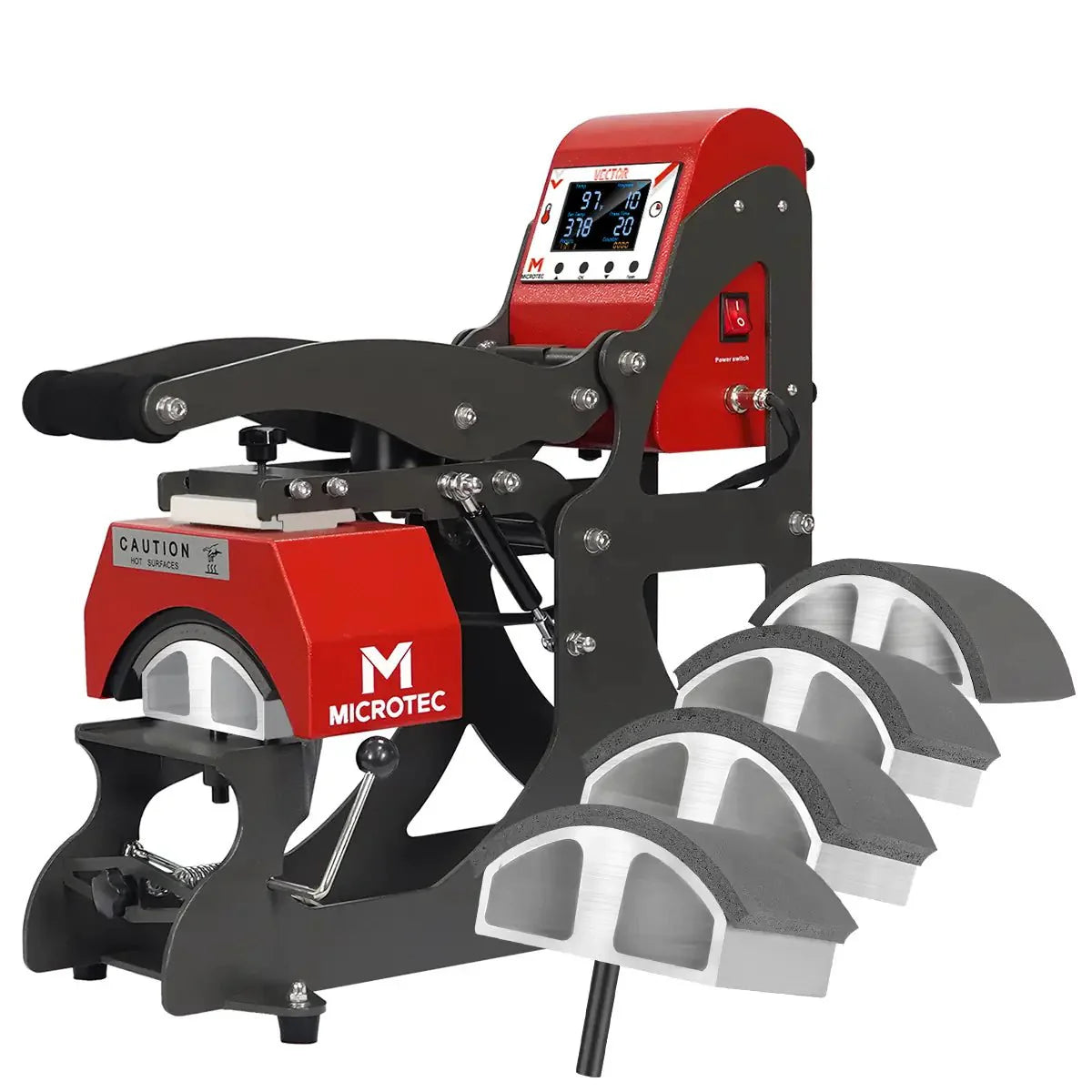

What sets the VECTOR VCap apart is its expanded application range. It comes with 4 interchangeable lower platens in different sizes, giving users more flexibility for various cap styles and small-format applications.

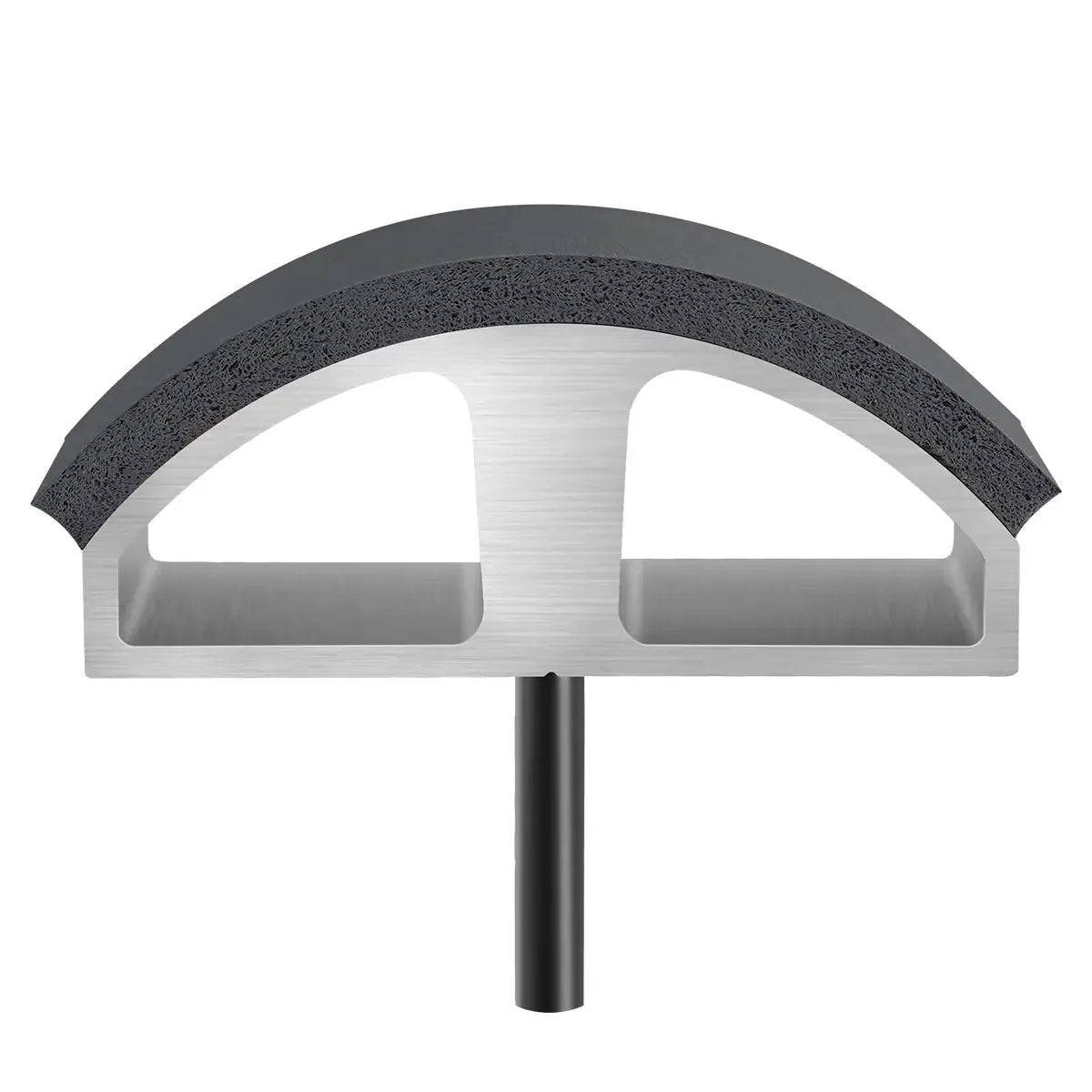

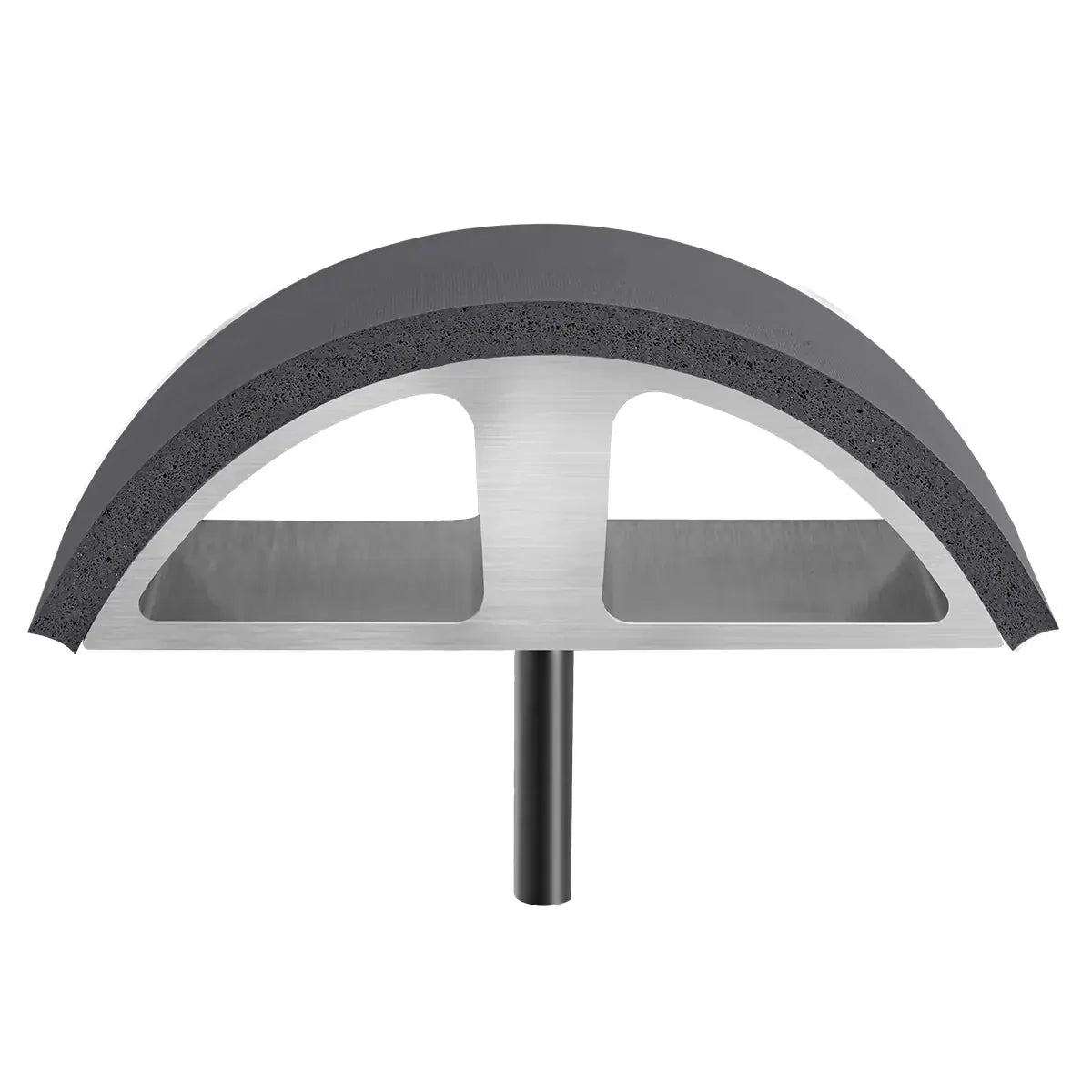

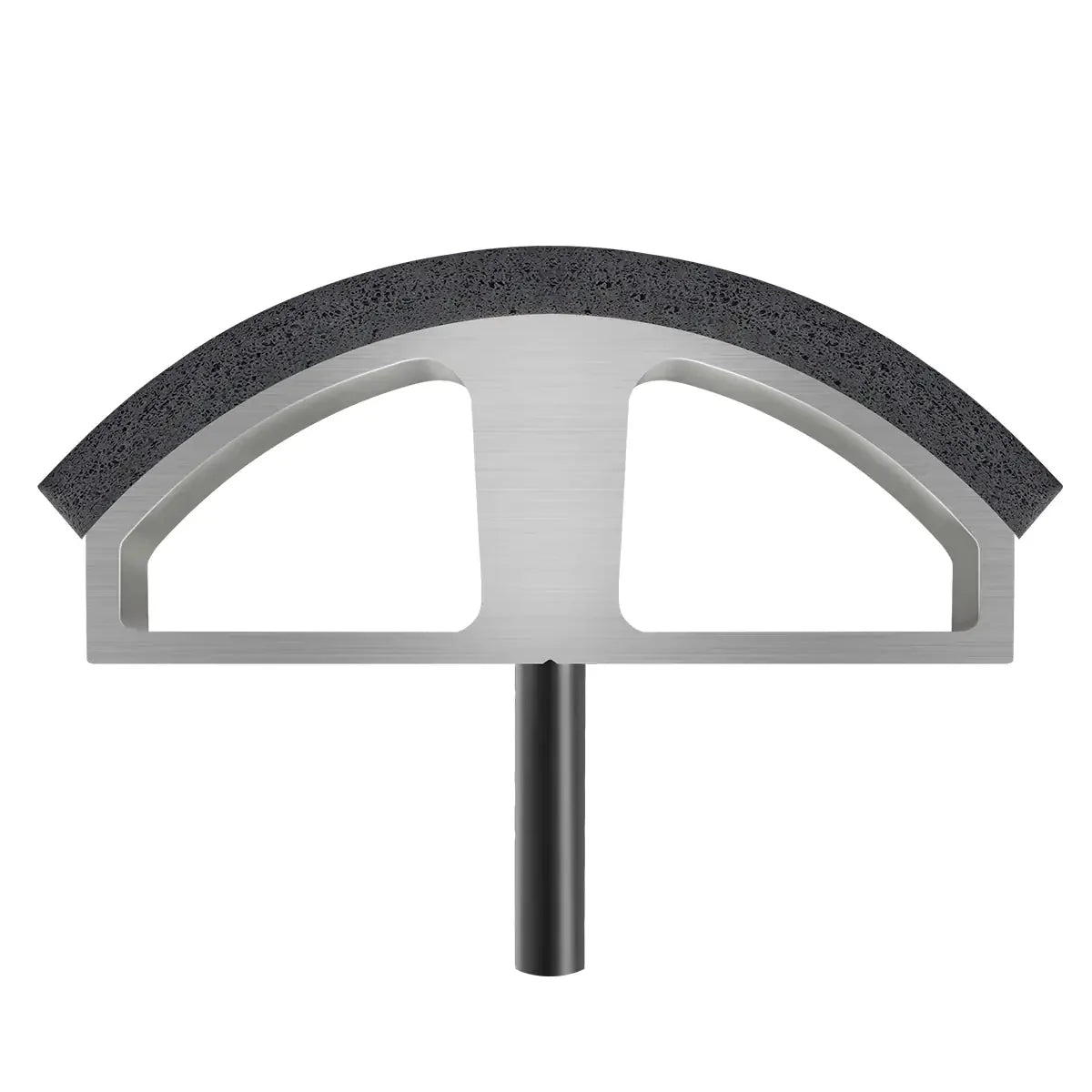

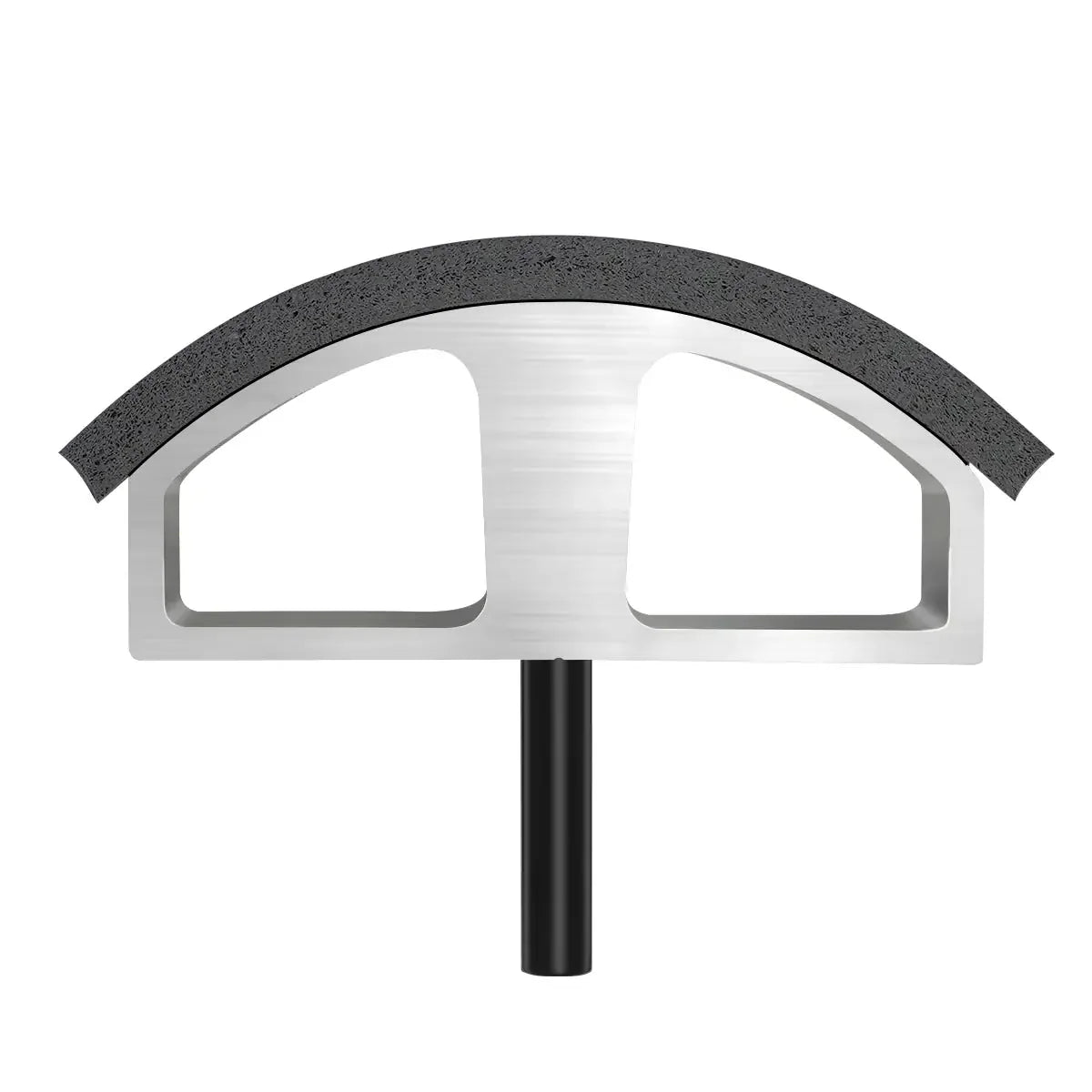

Included lower platen sizes : 3" x 6.5" , 2.875" x 6.5" , 3.875" x 7" , 4" x 9"

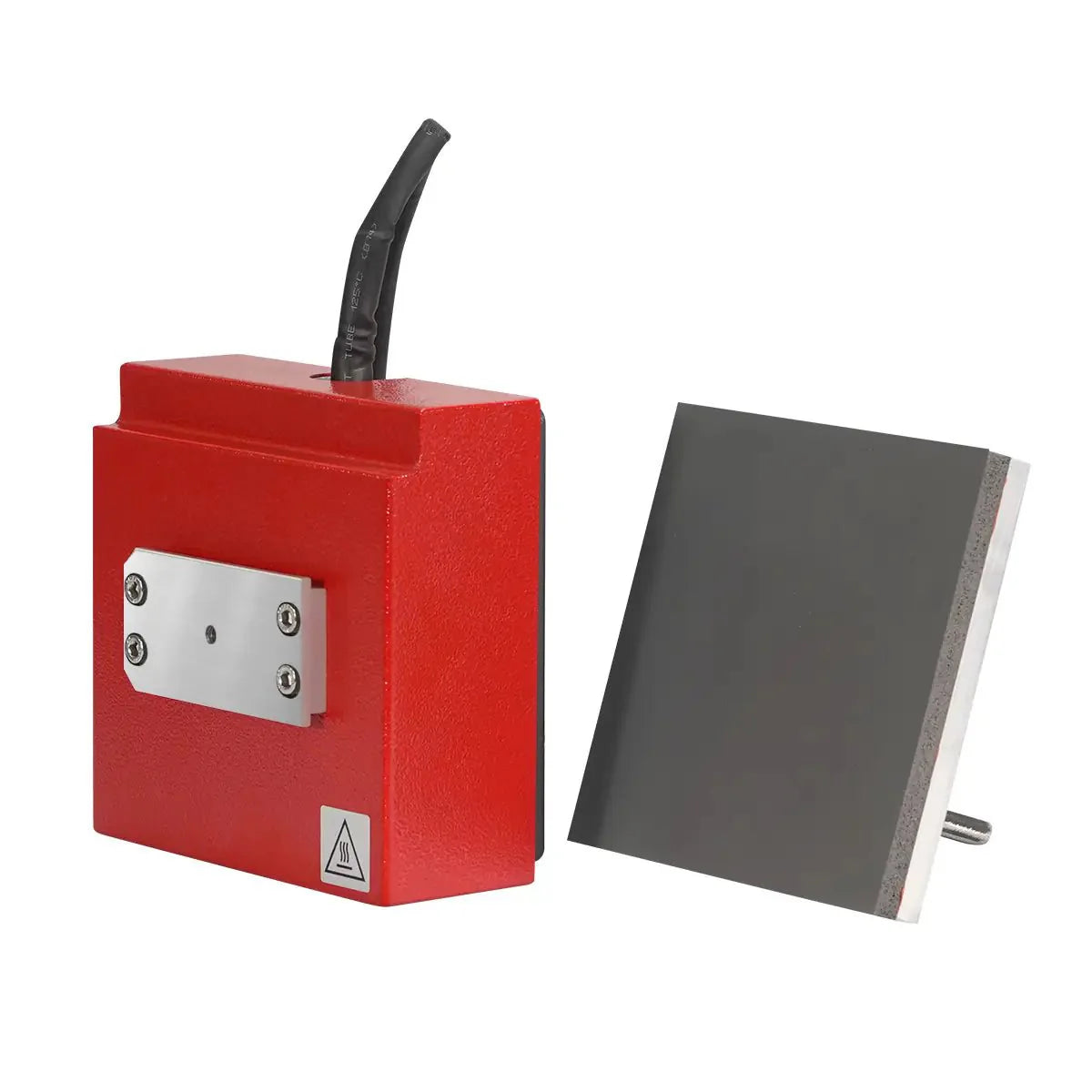

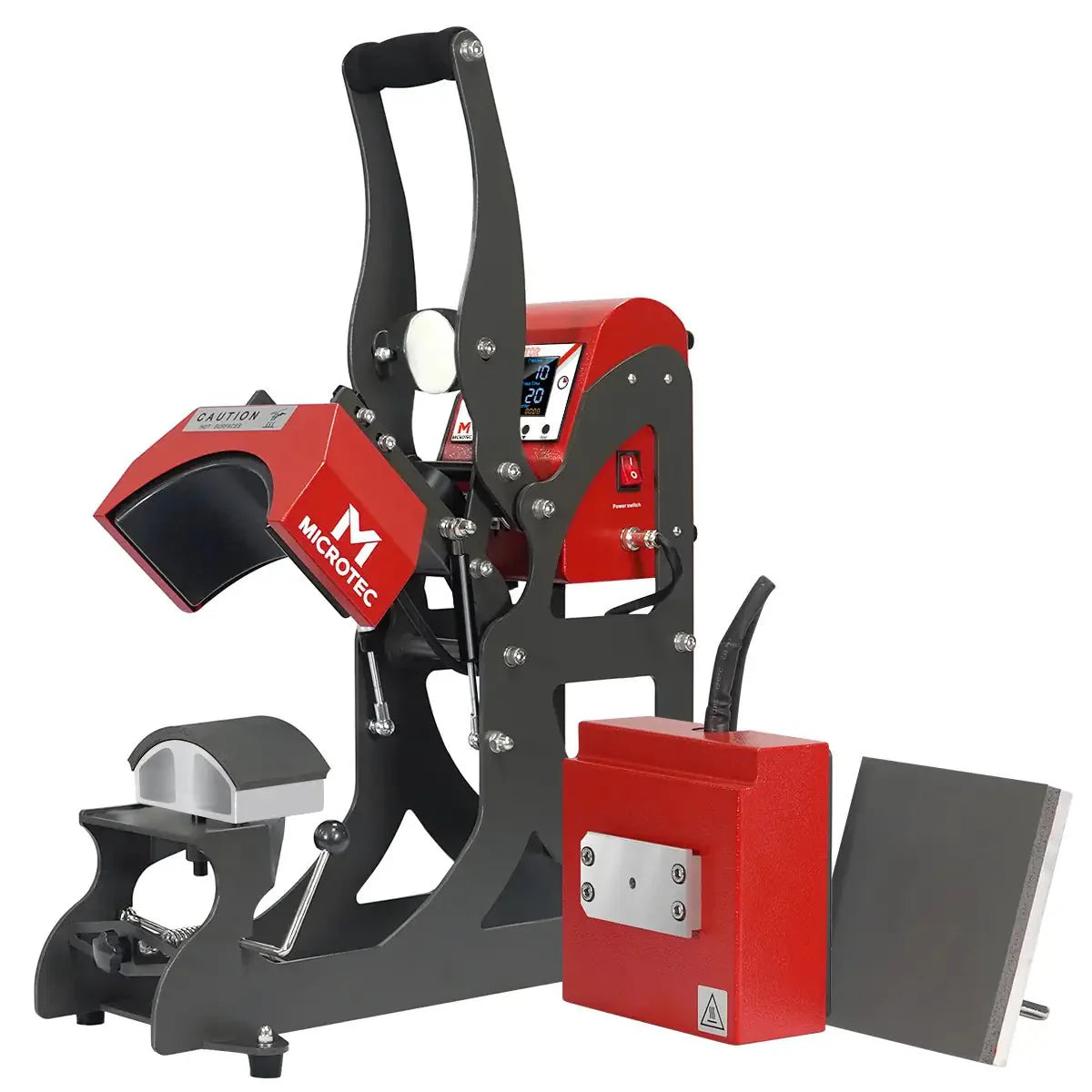

The machine also includes a 5.9" x 5.9" heat plate, giving users the ability to expand beyond standard cap transfers and apply graphics to more small items and specialty areas.
With multiple platen options, adjustable pressure, wider opening access, and broader transfer capability, the VECTOR VCap Heat Press gives your business more ways to produce, customize, and grow.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 4" x 9" |
| Production Capacity | Up to 40 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 500W |
| Voltage | 120V |
| Amps | 4.2A |
| Machine Dimensions | 21" x 11" x 19" |
| Shipping Size | 25.2" x 13.4" x 23.7" |
| Net Weight | 45 lb |
| Shipping Weight | 51.8 lb |
| Method of Operation | Auto-Open |
| Machine Line | VECTOR |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
See it in action
Key features
- Auto-open release Auto-open release | Opens itself at zero, which matters on cap work where you are cycling fast.

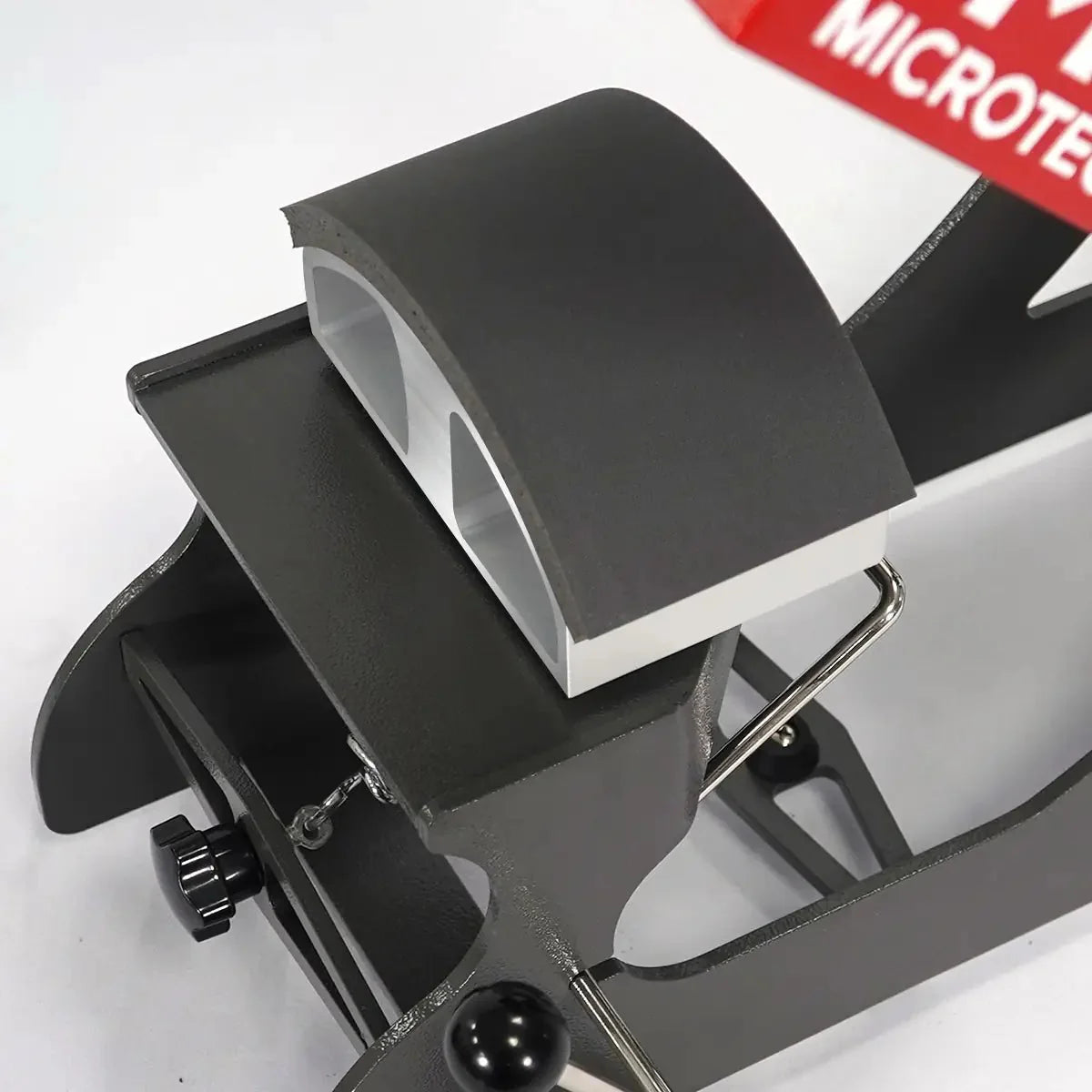

- Four cap platens in the box Four cap platens in the box | 3" x 6.5", 2.875" x 6.5", 3.875" x 7" and 4" x 9" to match different crown profiles and cap sizes.
- A 5.9" x 5.9" flat plate is also included A 5.9" x 5.9" flat plate is also included | Turns the same machine into a label, patch, sleeve and small-graphic press.

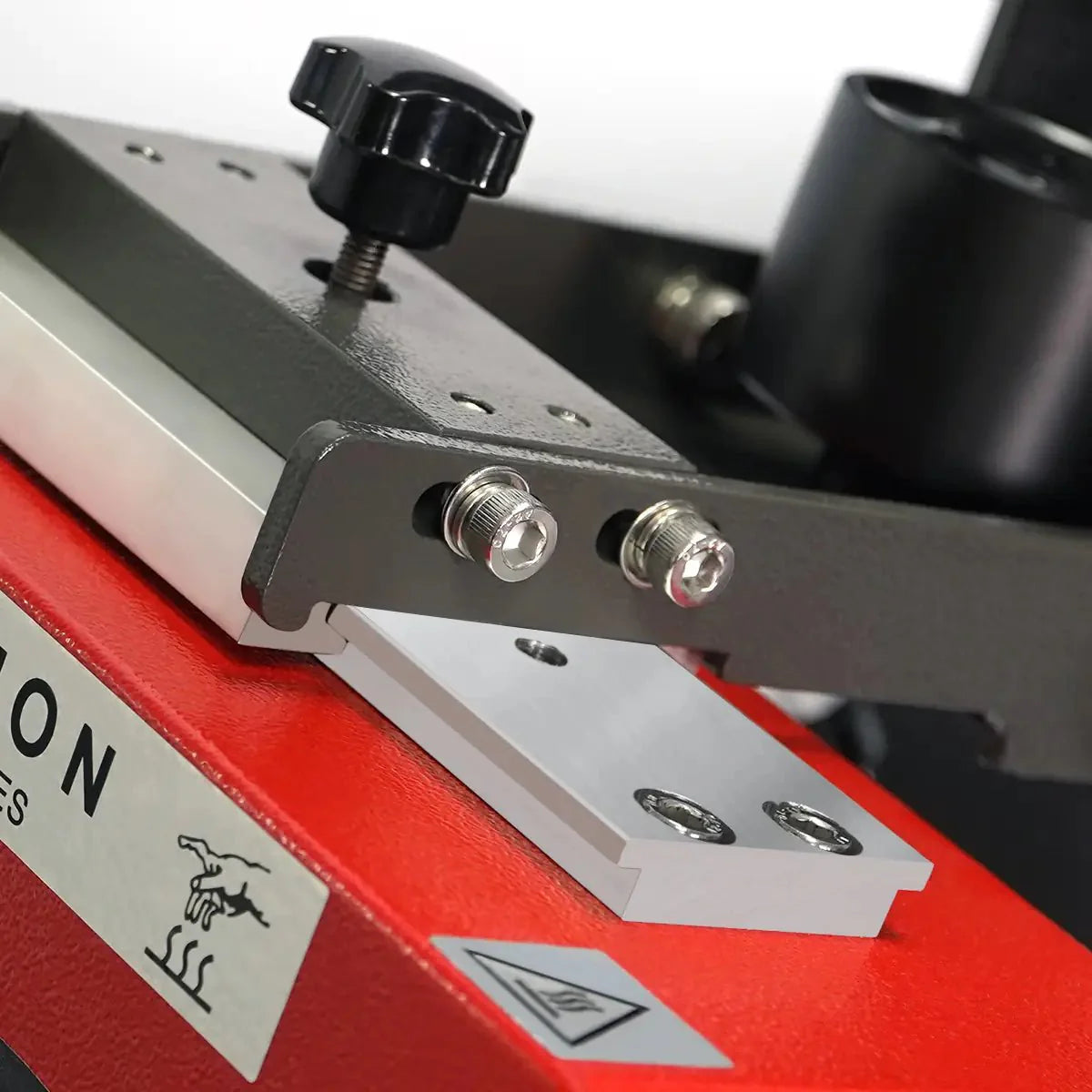

- Platens swap in minutes Platens swap in minutes | No tools, no downtime between a cap run and a label run.
