Description

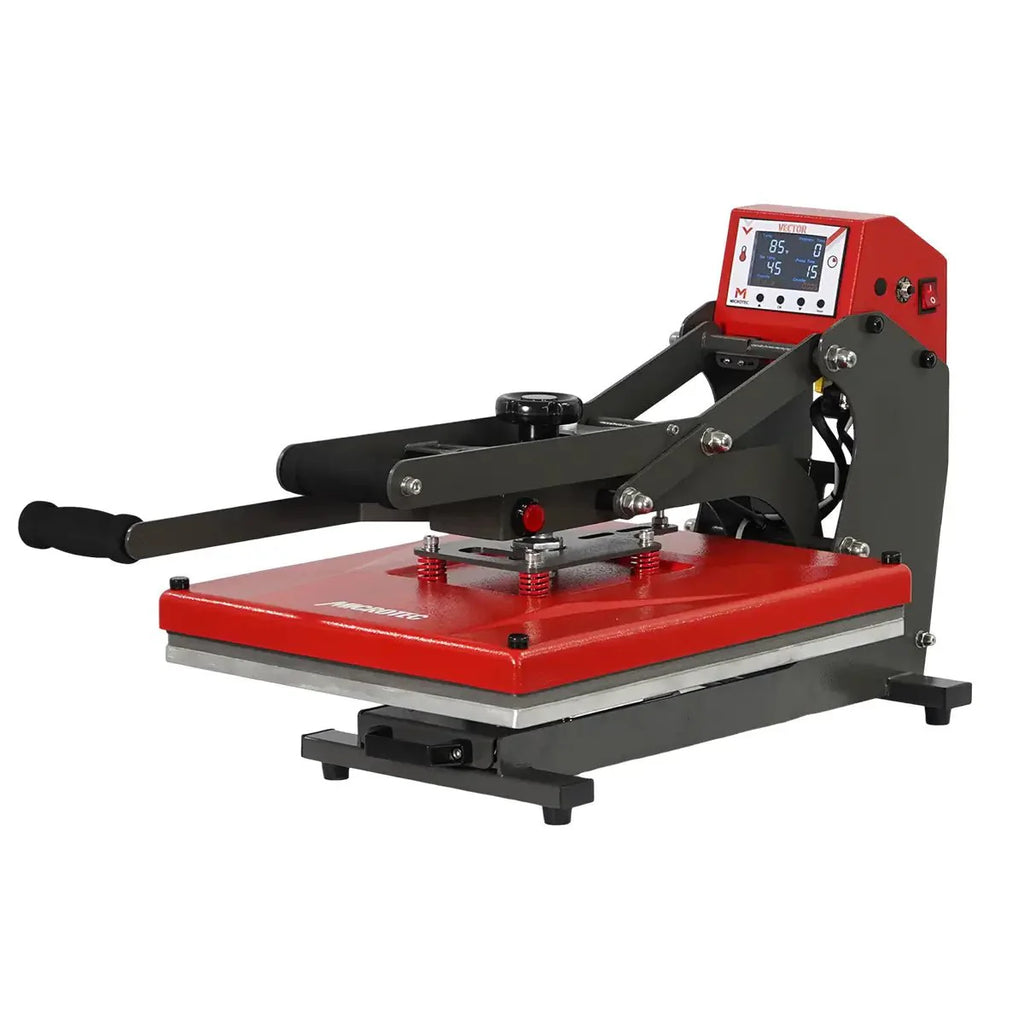

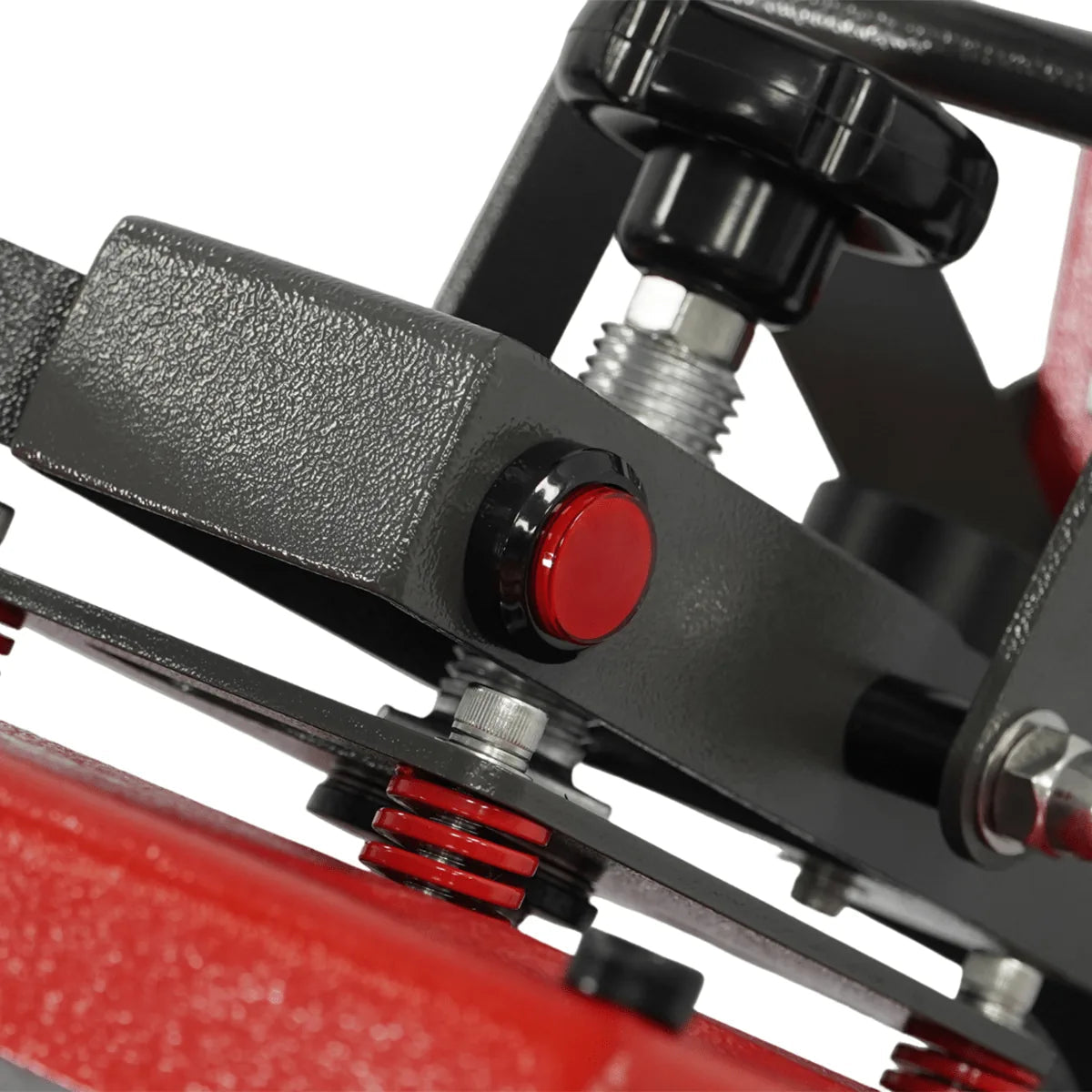

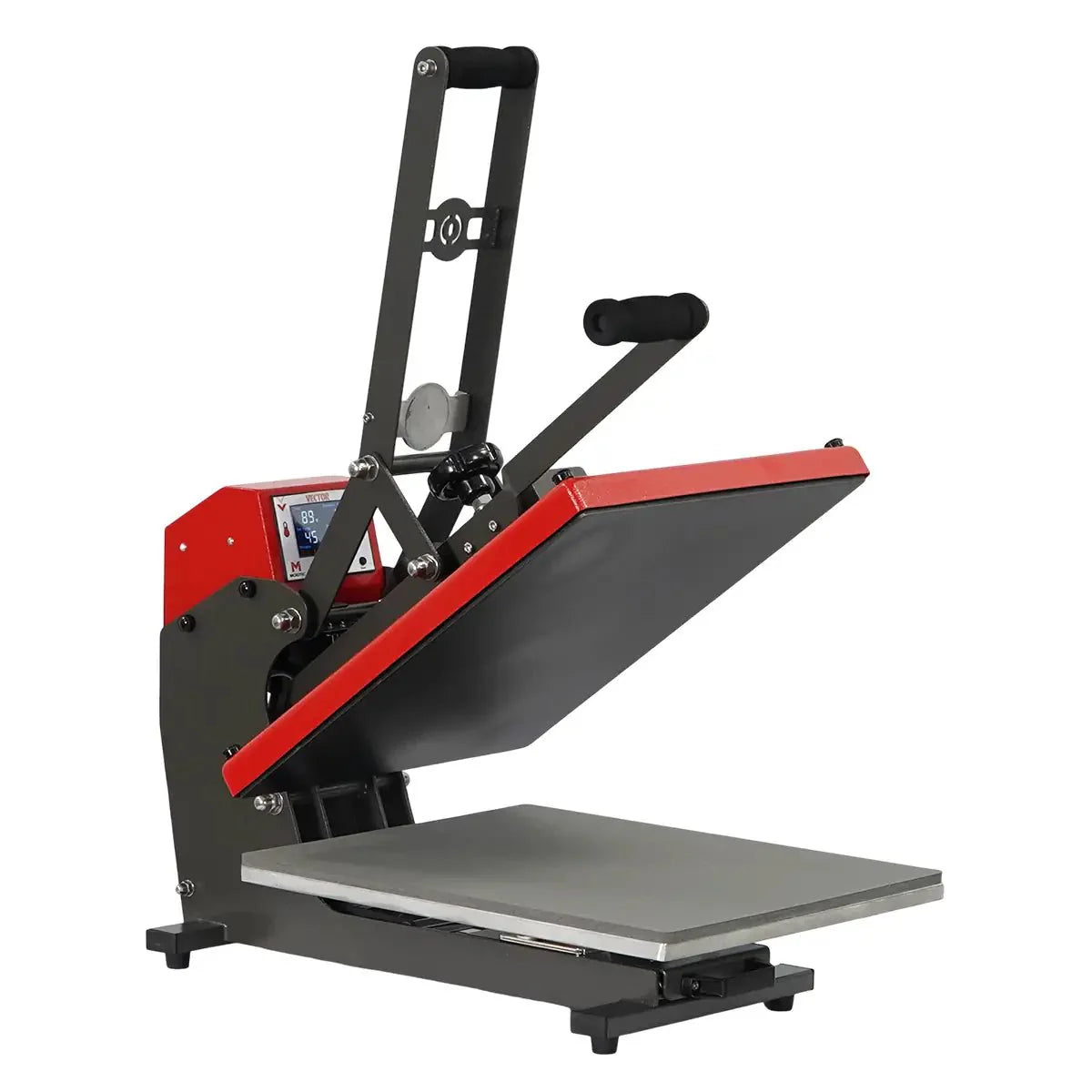

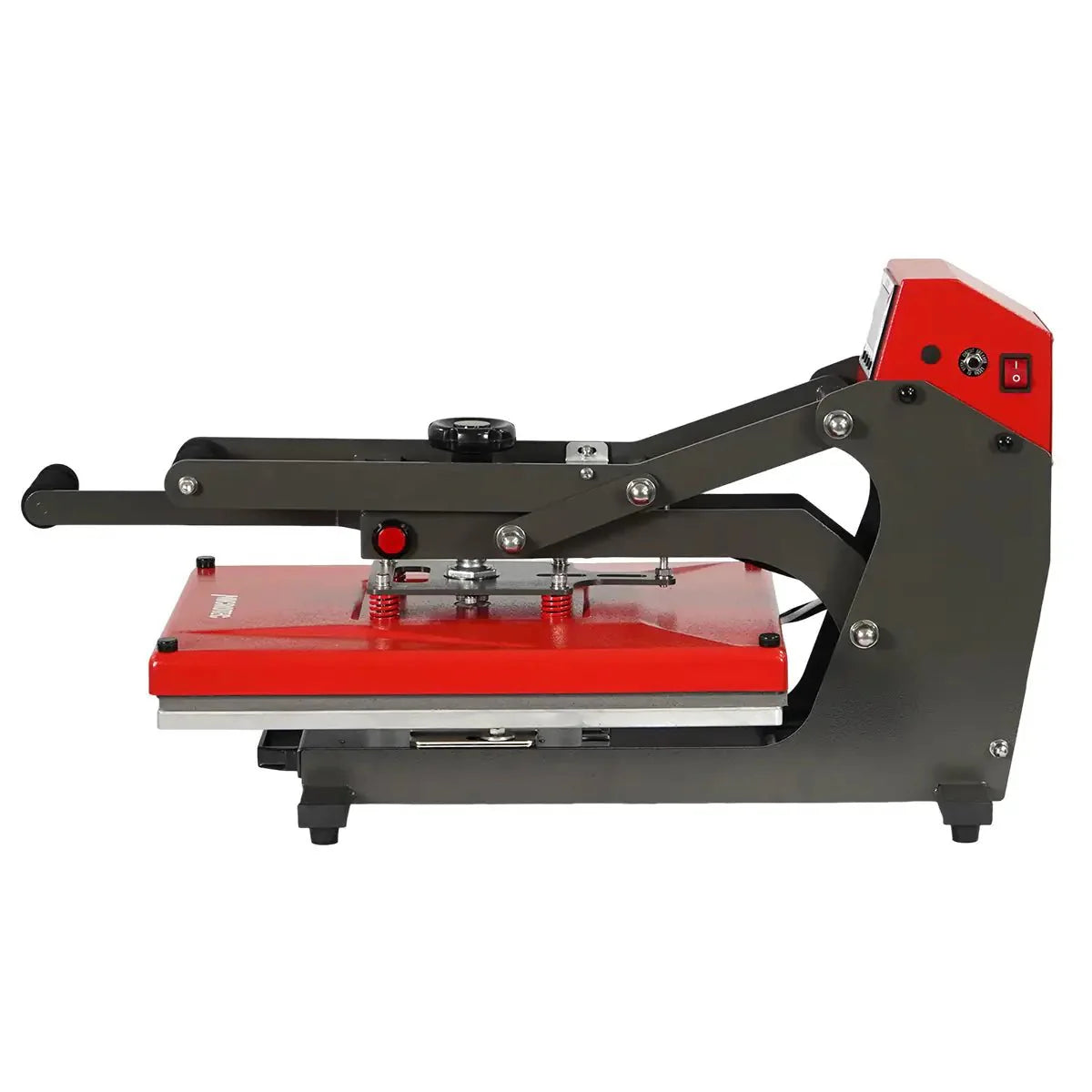

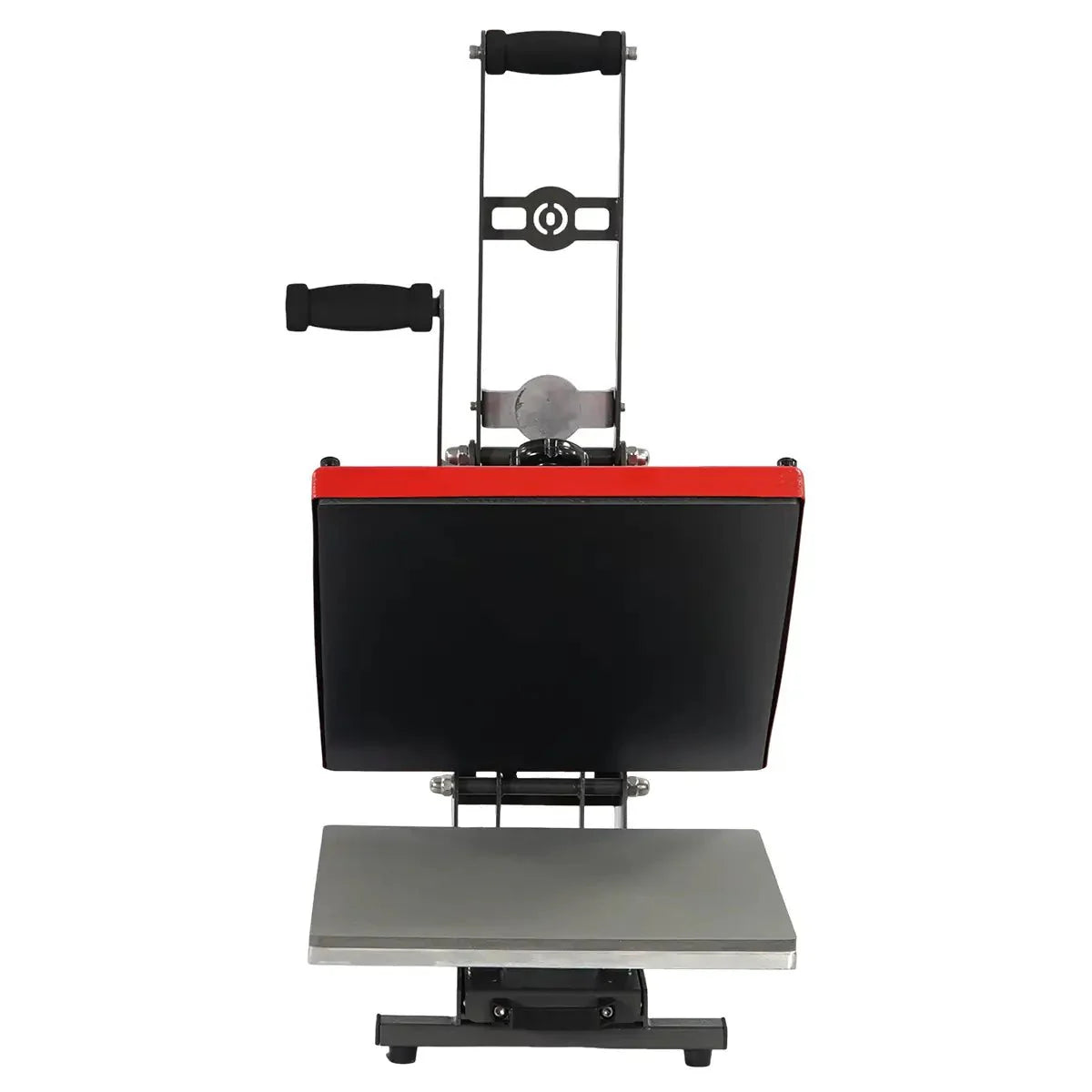

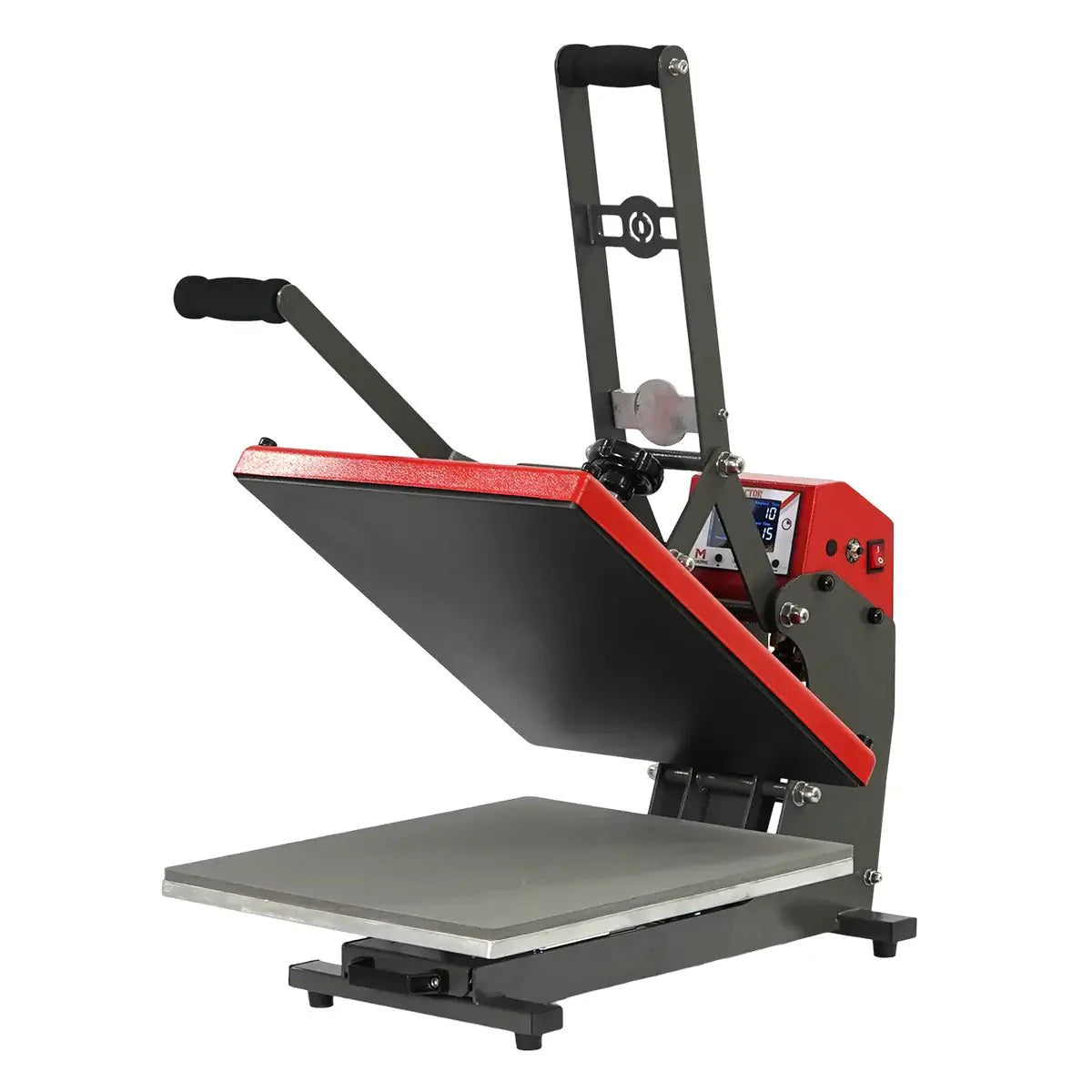

The VECTOR Series Auto-Open Heat Press is a practical and reliable solution for users looking for an easy-to-use machine for everyday heat transfer work. Featuring an auto-open electromagnetic release system, the press automatically releases when the timer reaches zero, helping improve convenience and reduce the risk of over-pressing.
Designed with user-friendly operation in mind, the VECTOR V1620-AS includes a slide-out lower drawer that makes loading and positioning garments easier and safer. The time and temperature controls are simple to use and help provide consistent results for a wide range of standard heat transfer applications. A gas shock assisted opening system also helps make operation smoother.
Built for entry-level users, small businesses, and growing shops, the VECTOR V1620-AS Auto-Open Heat Press offers a good balance of functionality, ease of use, and value.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up to 120 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1700W |
| Voltage | 120V |
| Amps | 14.2A |
| Machine Dimensions | 16" x 29" x 35" |
| Shipping Size | 37" x 21" x 21" |
| Net Weight | 85.8 lb |
| Shipping Weight | 107.8 lb |
| Method of Operation | Auto-Open & Slide-Out |
| Machine Line | VECTOR |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
See it in action
Key features
- Auto-open release Auto-open release | The press opens itself when the timer hits zero, so you are not fighting the handle all shift and you are not scorching a shirt because you got distracted.

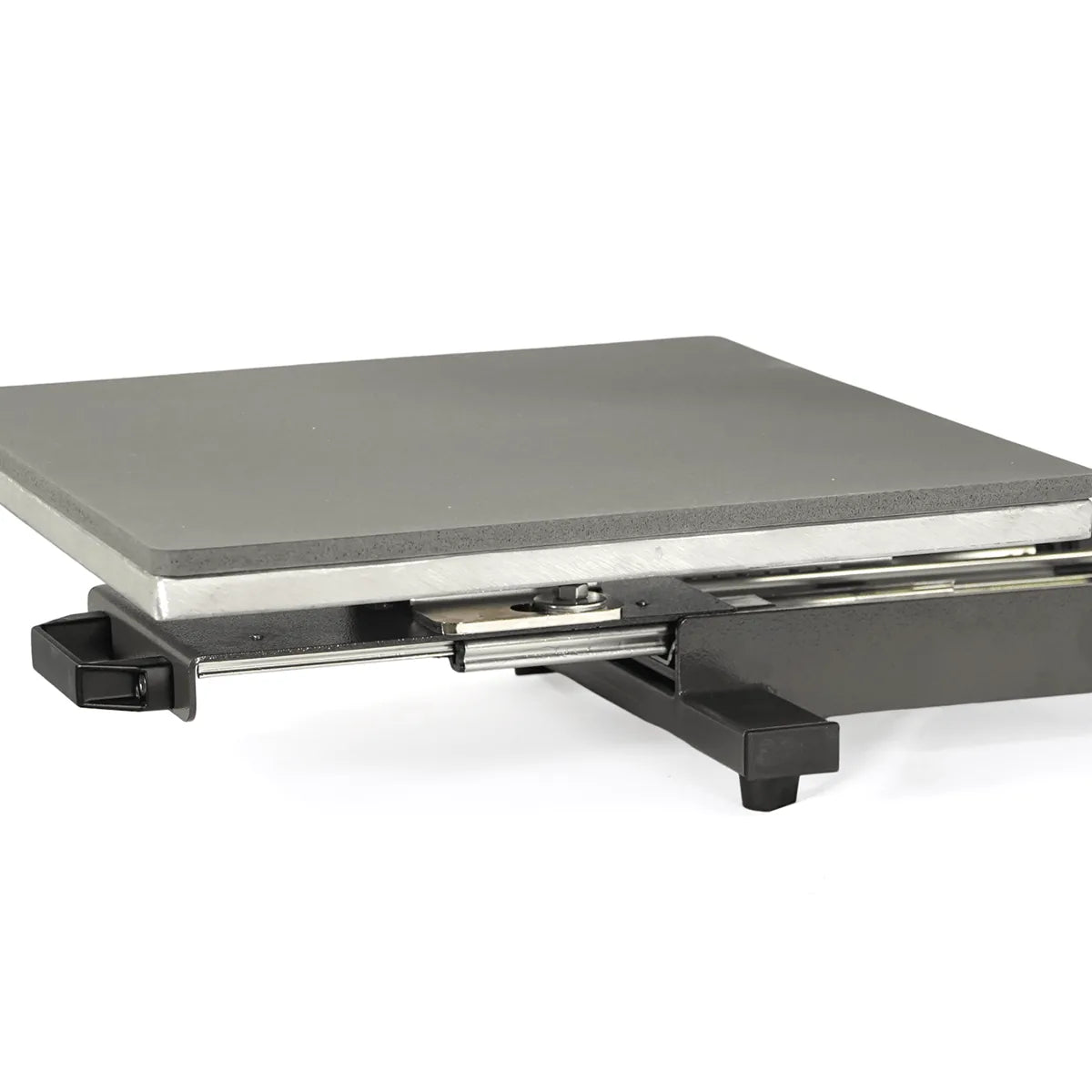

- Slide-out lower platen Slide-out lower platen | Load and align away from the hot upper platen. Fewer burned forearms, straighter placement.

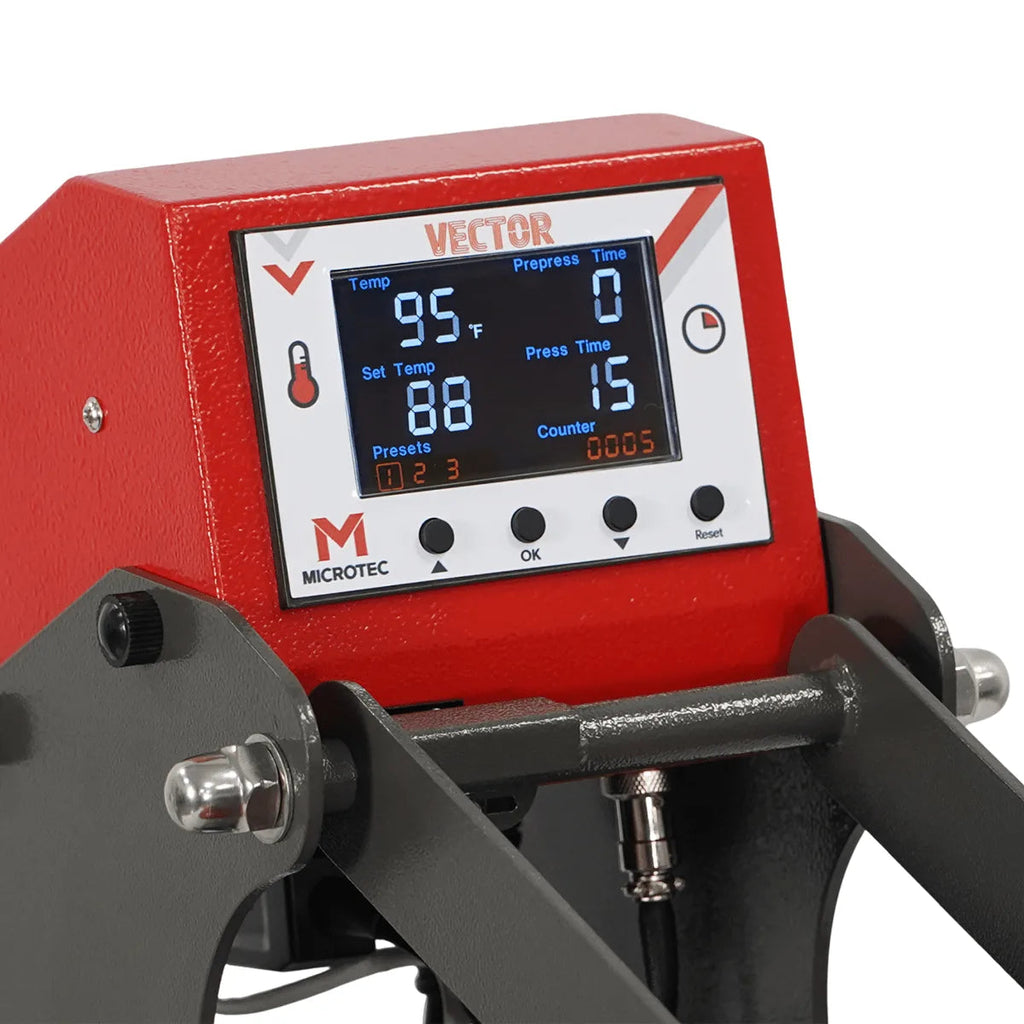

- Three preset memories Three preset memories | Store three time-and-temperature combinations and switch between HTV, DTF and sublimation without re-dialling the controller every time.
- 16" x 20" platen 16" x 20" platen | Fits an adult front print with room to spare, and handles most full-size gang-sheet transfers in one press.
