Description

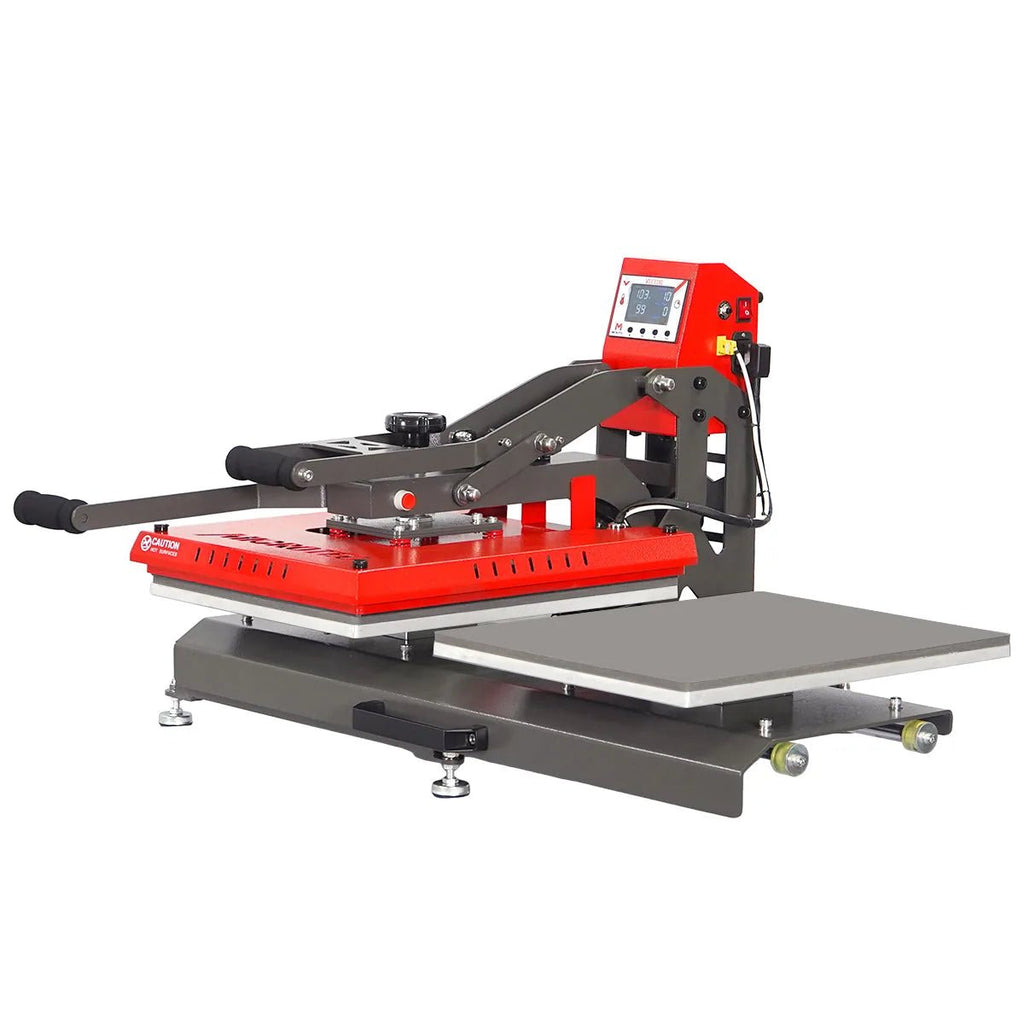

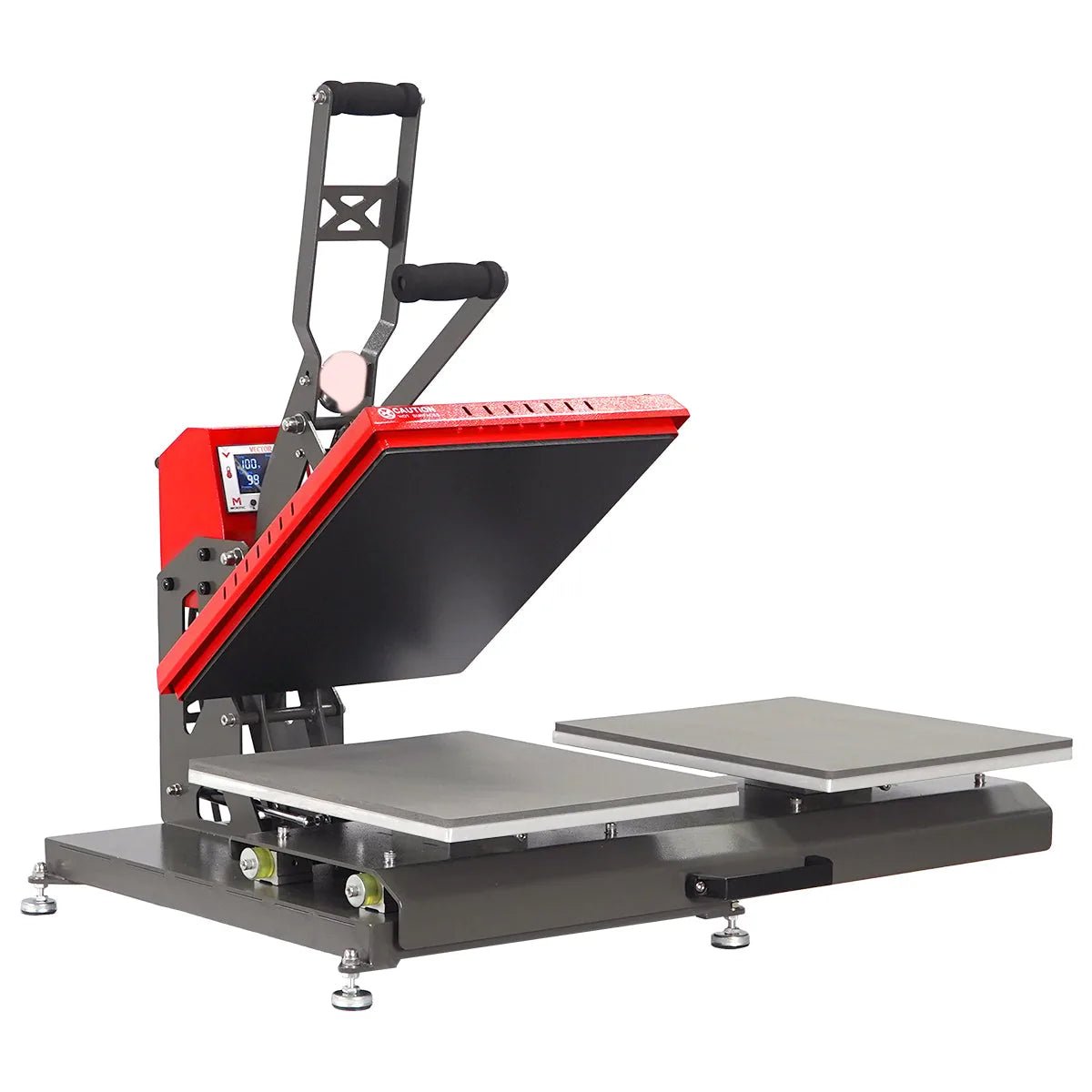

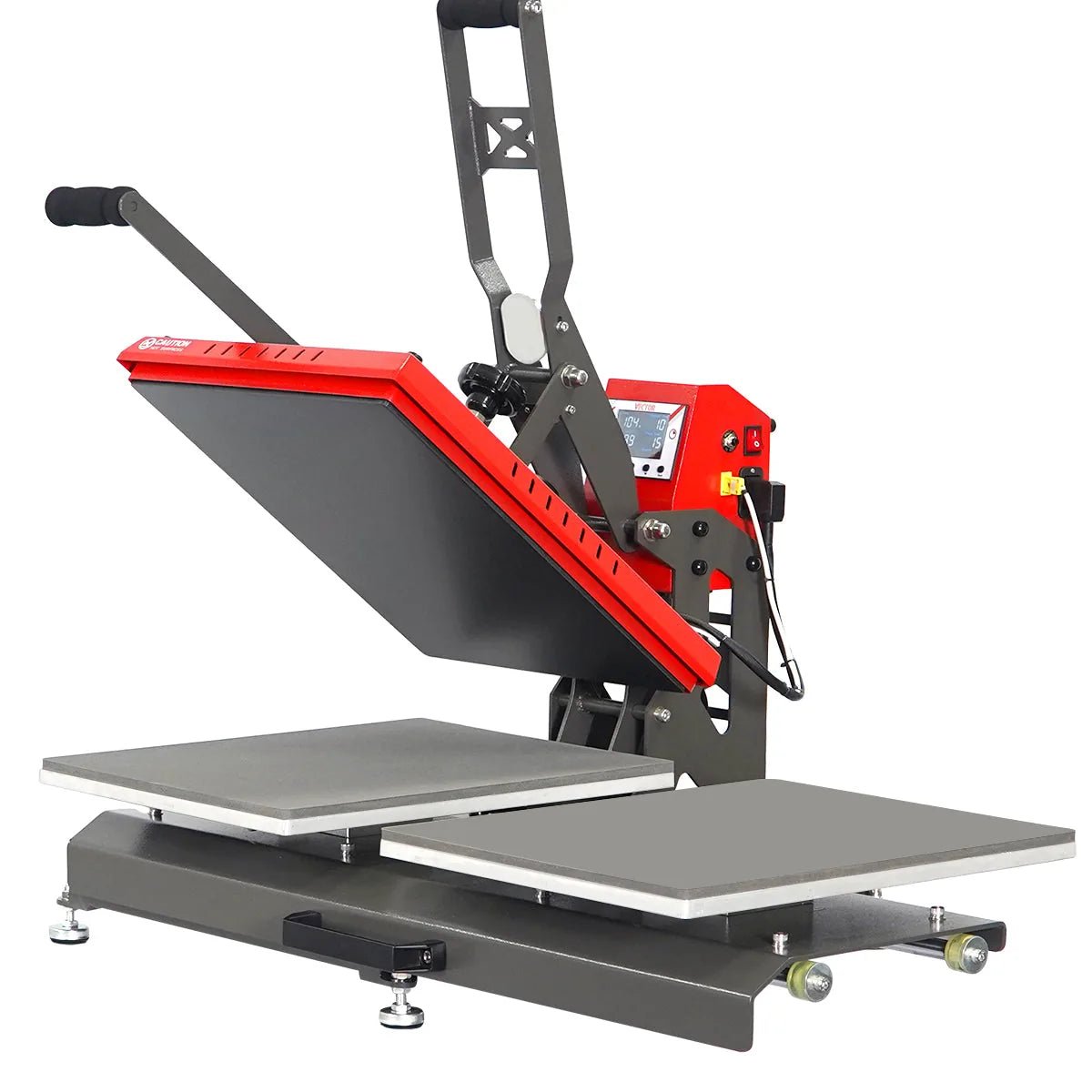

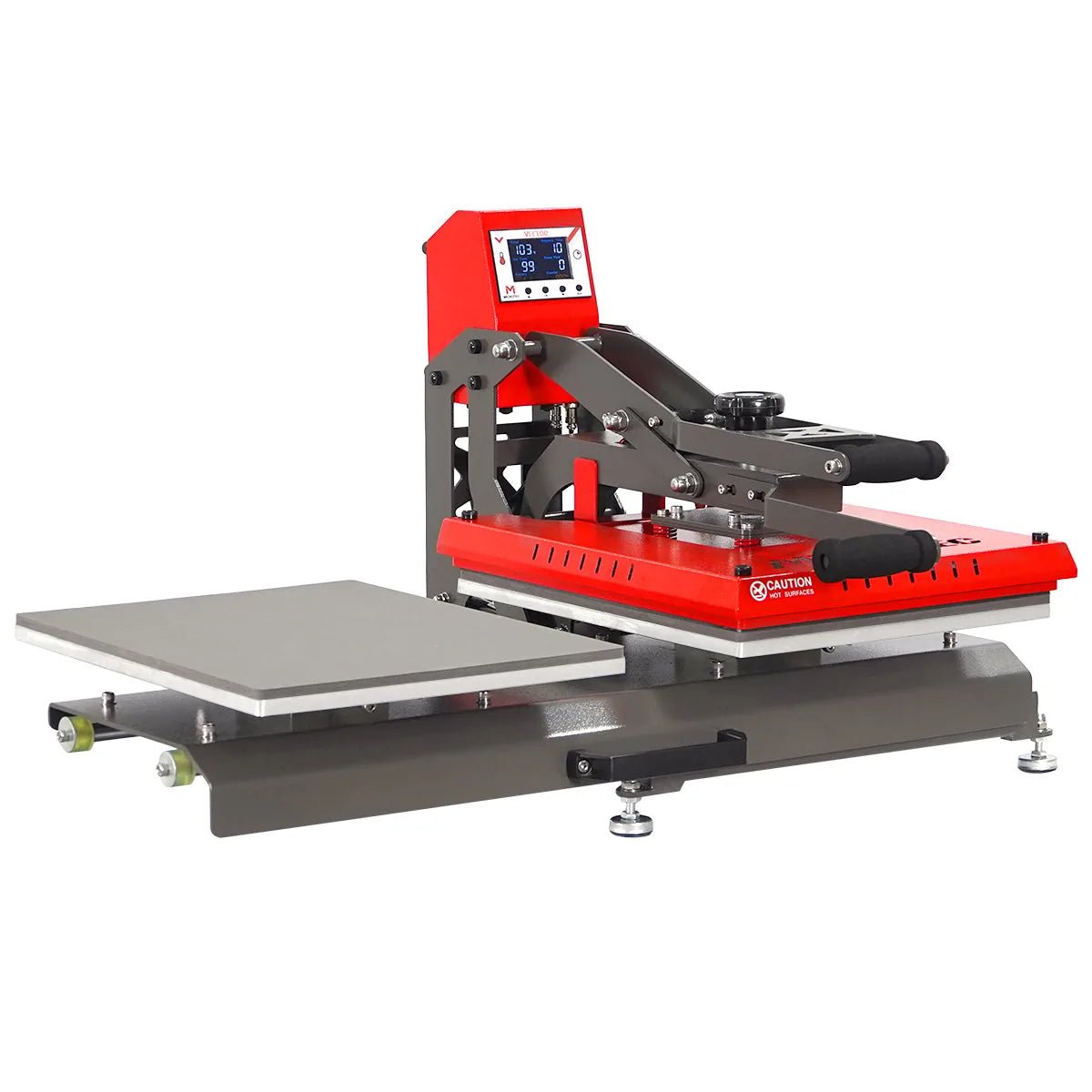

If improving workflow and increasing output are top priorities, the Vector 16" x 20" Double Station Auto-Open Heat Press is built to do exactly that. Featuring two independent lower platens that slide side to side along the base rail system, this machine allows you to press one item while setting up the next. The dual-station layout helps reduce downtime between cycles and creates a smoother, more productive work process. Because the second platen remains away from the upper heating element during setup, users can load garments and align transfers in a more comfortable heat-free workspace.

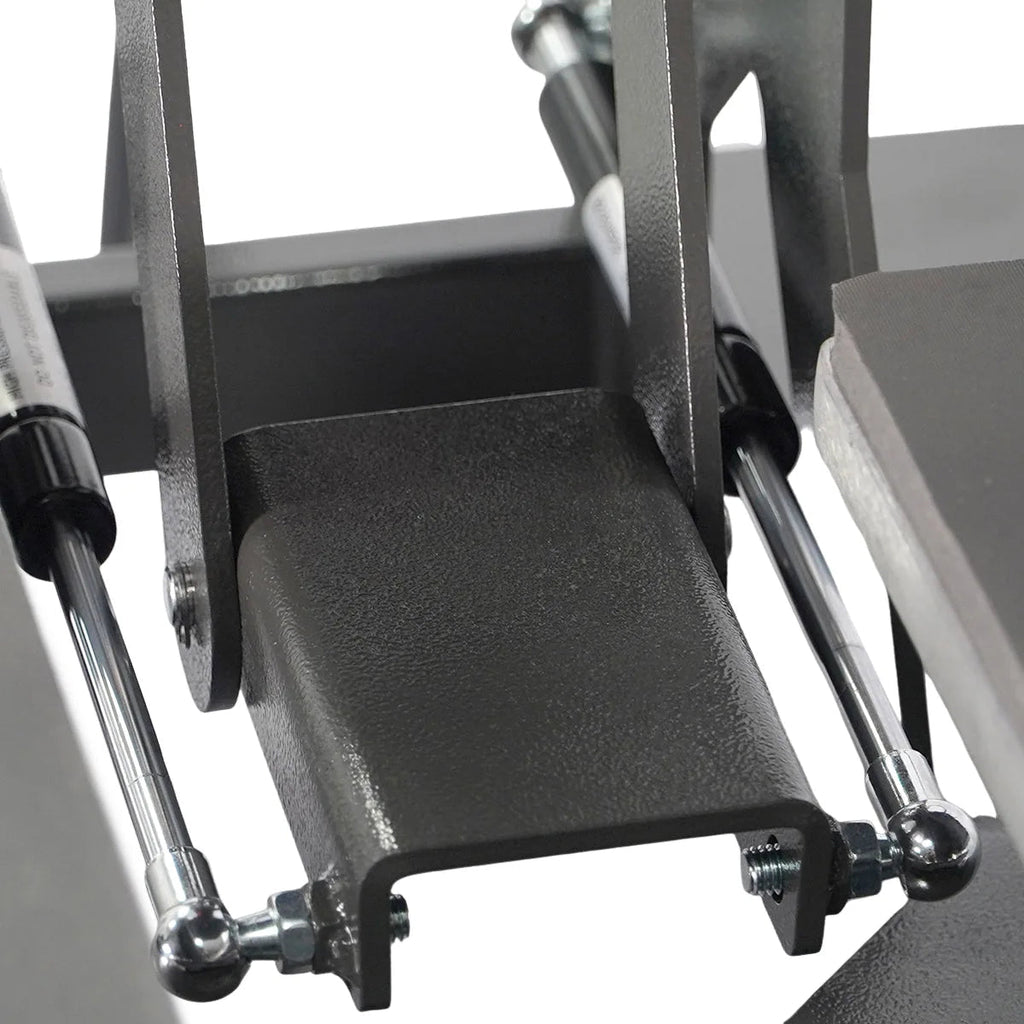

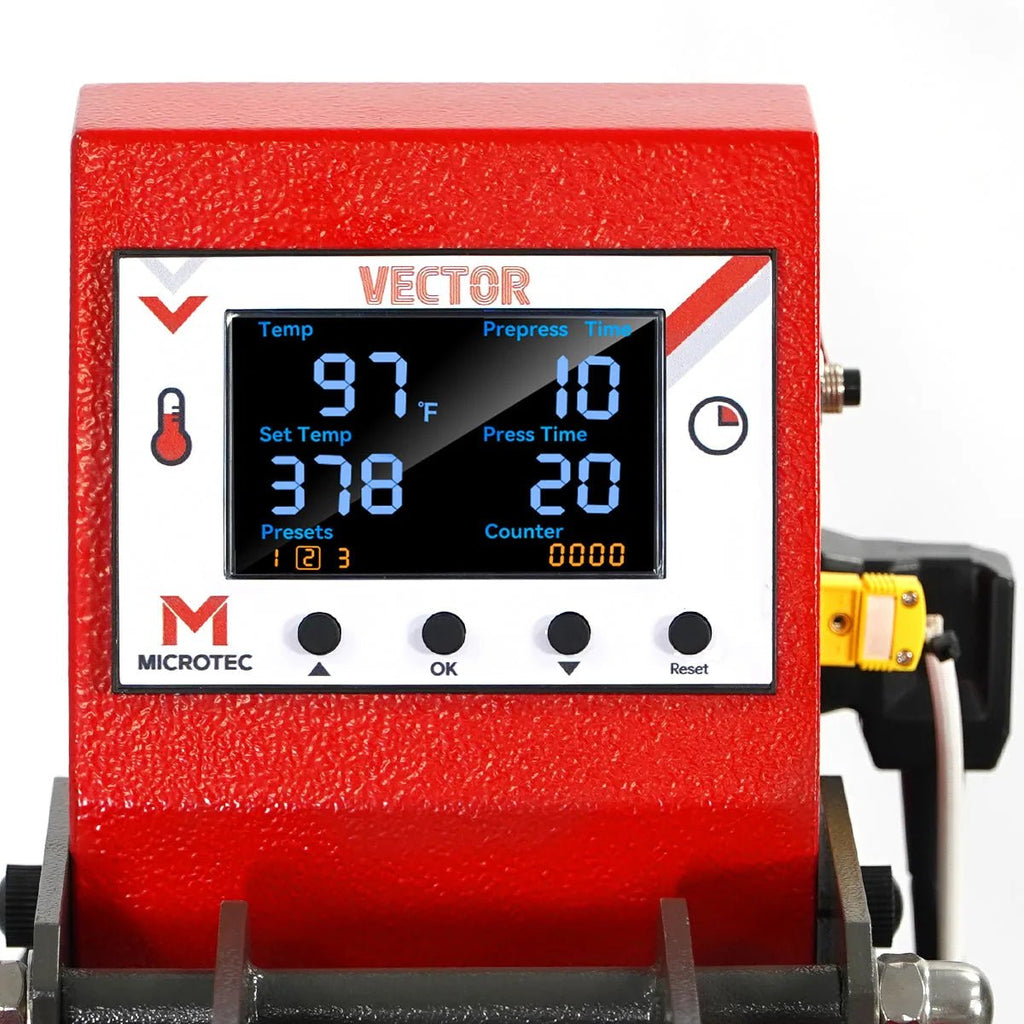

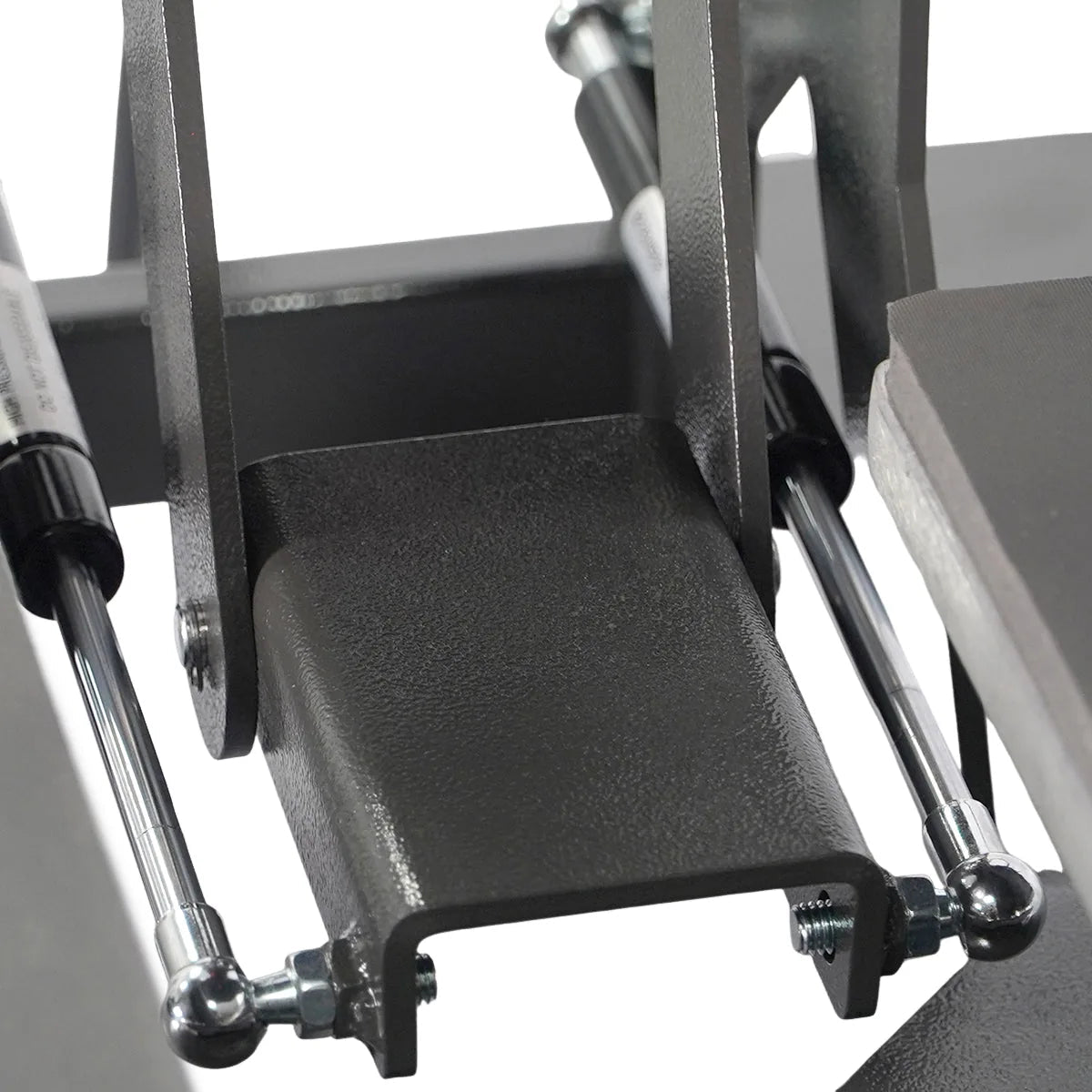

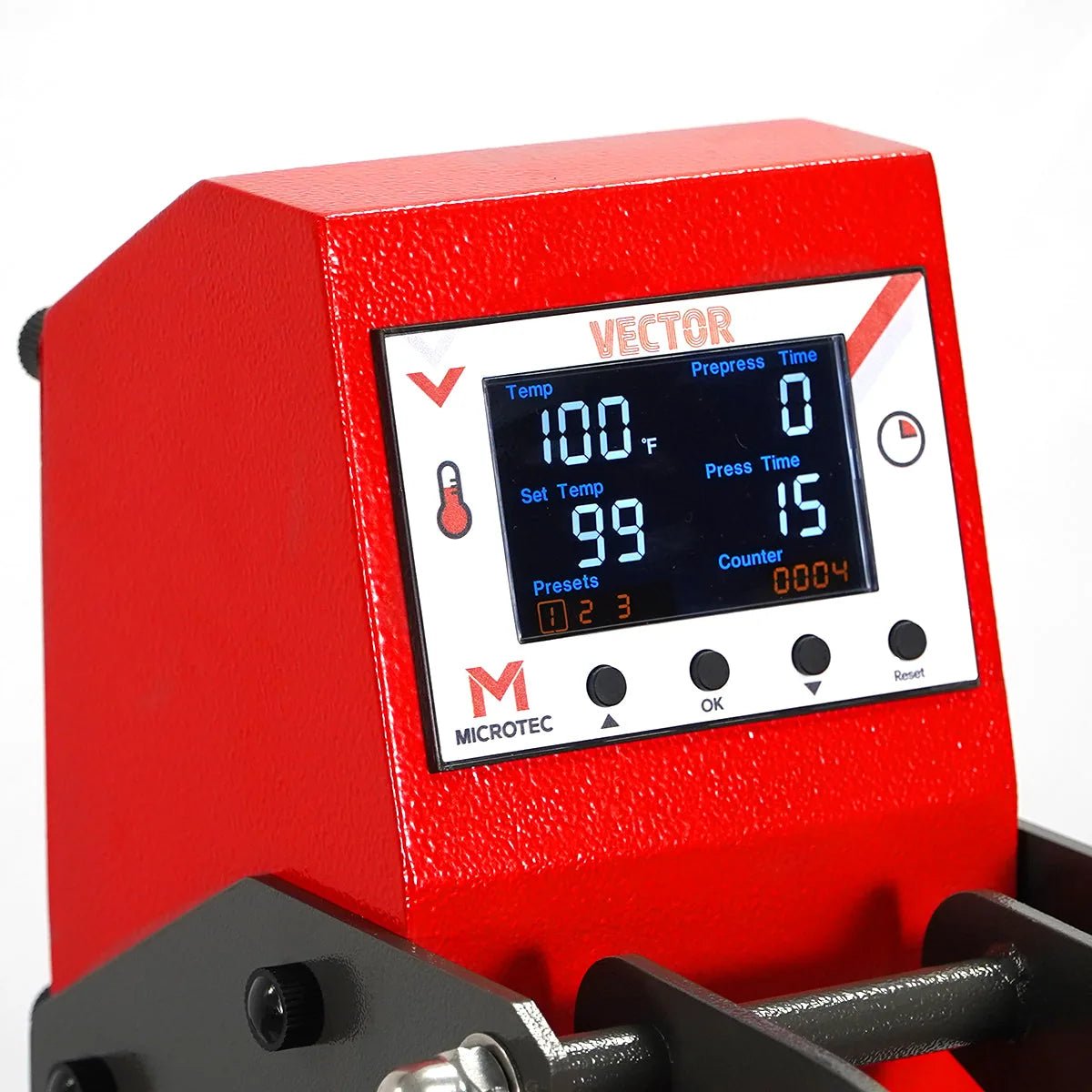

The Vector 16" x 20" Double Station Auto-Open Heat Press is equipped with a strong combination of performance-driven features that make it a practical choice for both growing shops and experienced operators. Its auto-open function helps reduce operator fatigue and supports a more efficient workflow, while the upgraded time and temperature display provides improved control during production. An integrated gas shock assist mechanism ensures smooth and reliable opening performance with every cycle.
Designed to be easy to operate, dependable in daily use, and accessible to a wide range of businesses, Vector delivers the balance of ease of use, solid build quality, and production efficiency that heat press users demand. Whether for established production environments or expanding small businesses, Vector is built to become a reliable part of any heat transfer setup.
Specifications
| Workstation Count | Dual |
|---|---|
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up to 150 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1700W |
| Voltage | 120V |
| Amps | 14.2A |
| Machine Dimensions | 41" x 31" x 25.3" |
| Shipping Size | 44.5" x 35.8" x 32" |
| Net Weight | 242 lb |
| Shipping Weight | 332.2 lb |
| Method of Operation | Double Station & Auto Open |
| Machine Line | VECTOR |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
Key features
- Reinforced frame Reinforced frame | Built to hold alignment through daily production rather than occasional use.
- Two stations, one operator Two stations, one operator | Dress the next garment while the current one presses. That overlap is where the jump from 120 to 150 pieces an hour comes from.
- Auto-open release Auto-open release | Both stations open themselves at zero, so the rhythm never depends on you watching a timer.
