Description

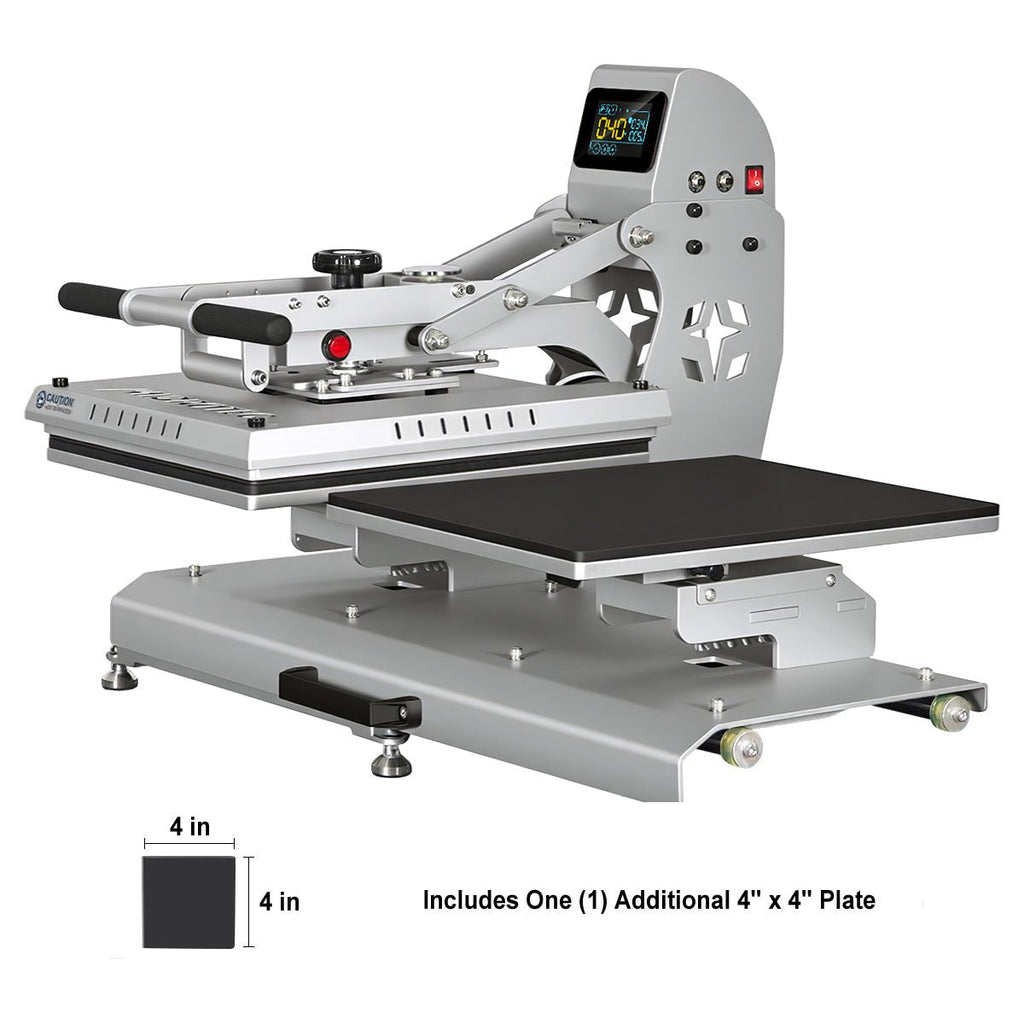

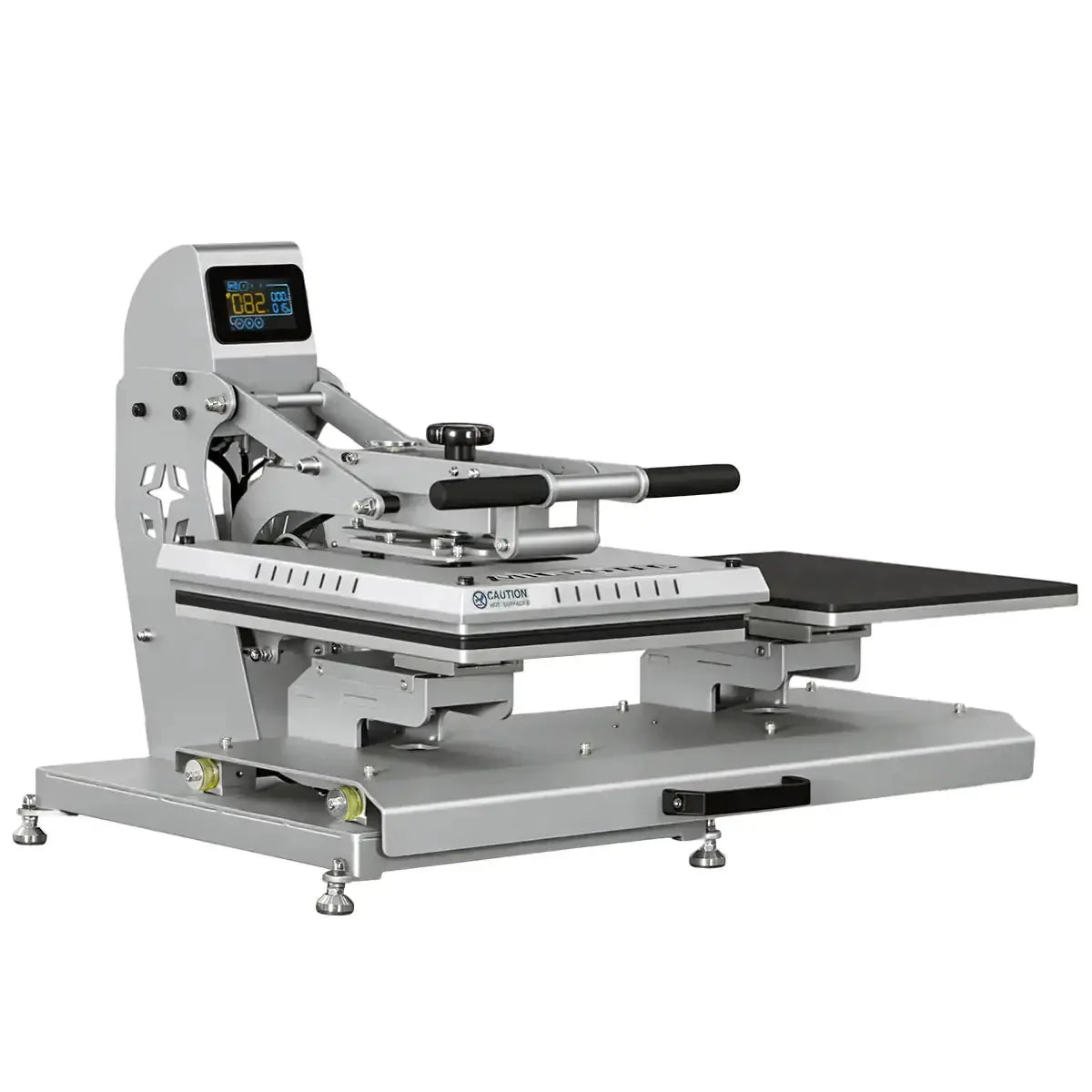

Built for higher output, smoother workflow, and consistent performance, the TITAN 16" x 20" Auto-Open Hybrid Heat Press is designed for shops that need speed without sacrificing control.

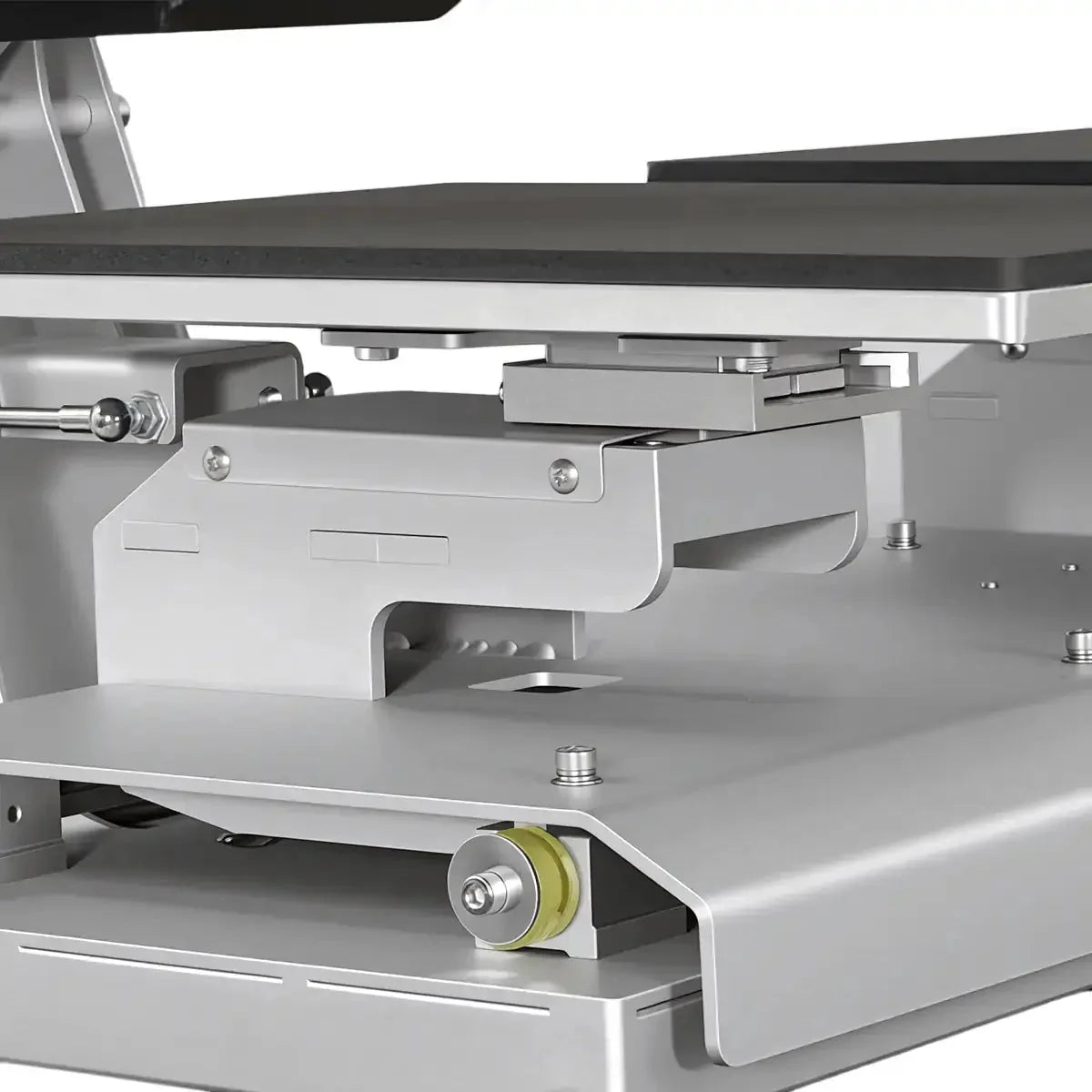

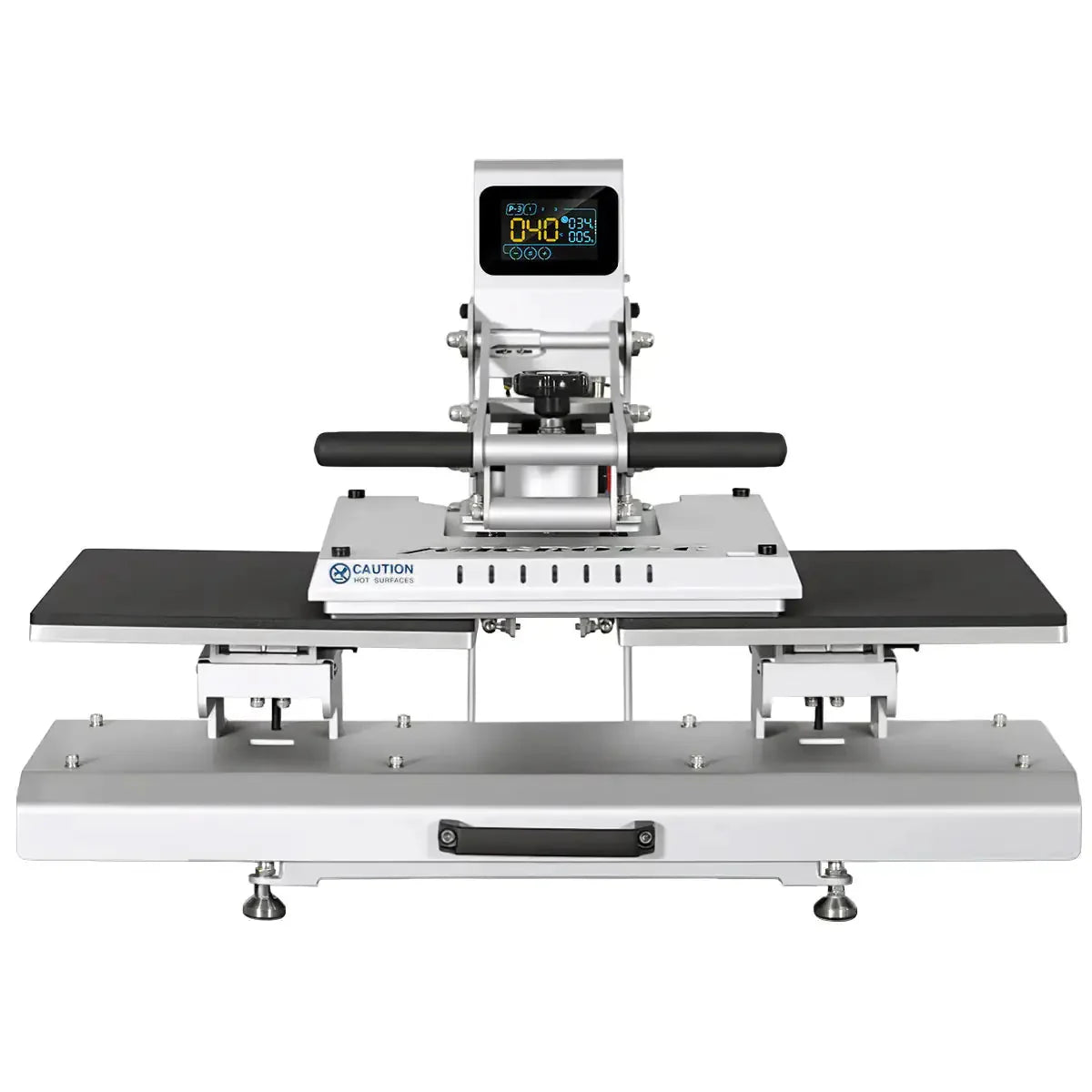

With a heavy-duty laser-cut steel frame, TITAN is made to handle demanding production environments and long hours of daily use. Its dual sliding lower platens let you press on one station while preparing the next item on the other, helping reduce downtime and keep production moving.

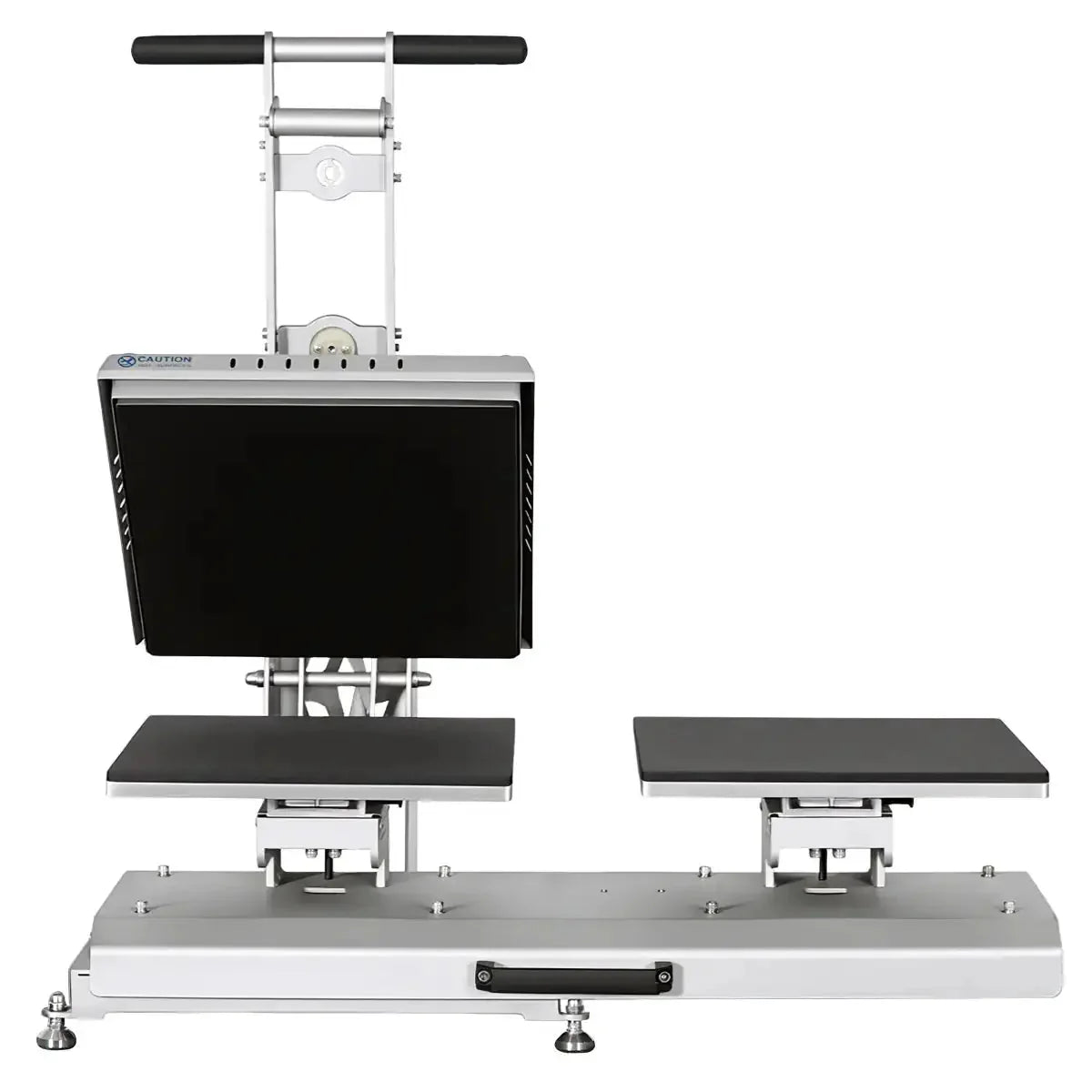

The dual-station layout creates a more efficient workspace by giving operators a separate loading area away from the heating element. That means faster garment setup, easier transfer alignment, and a more comfortable working process.

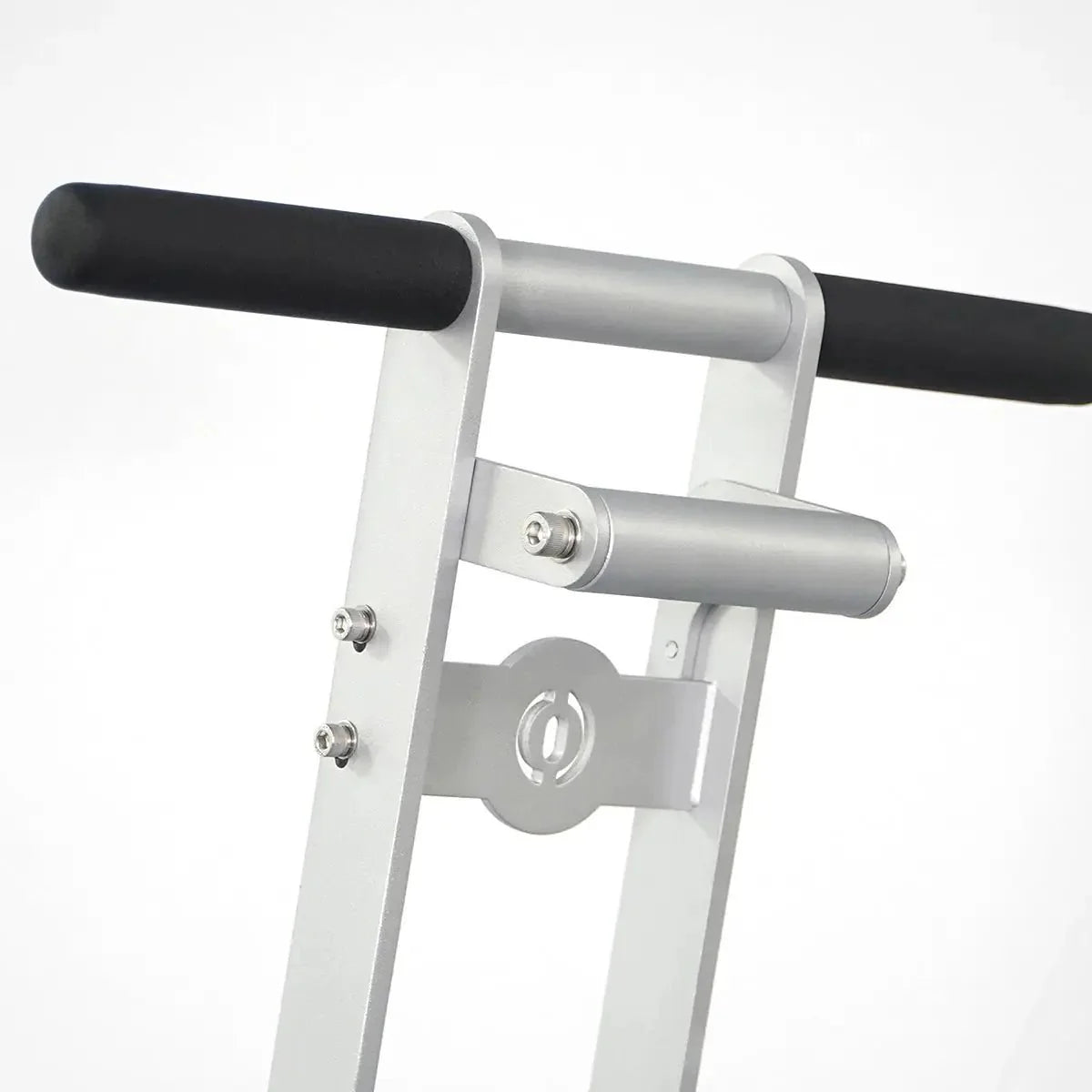

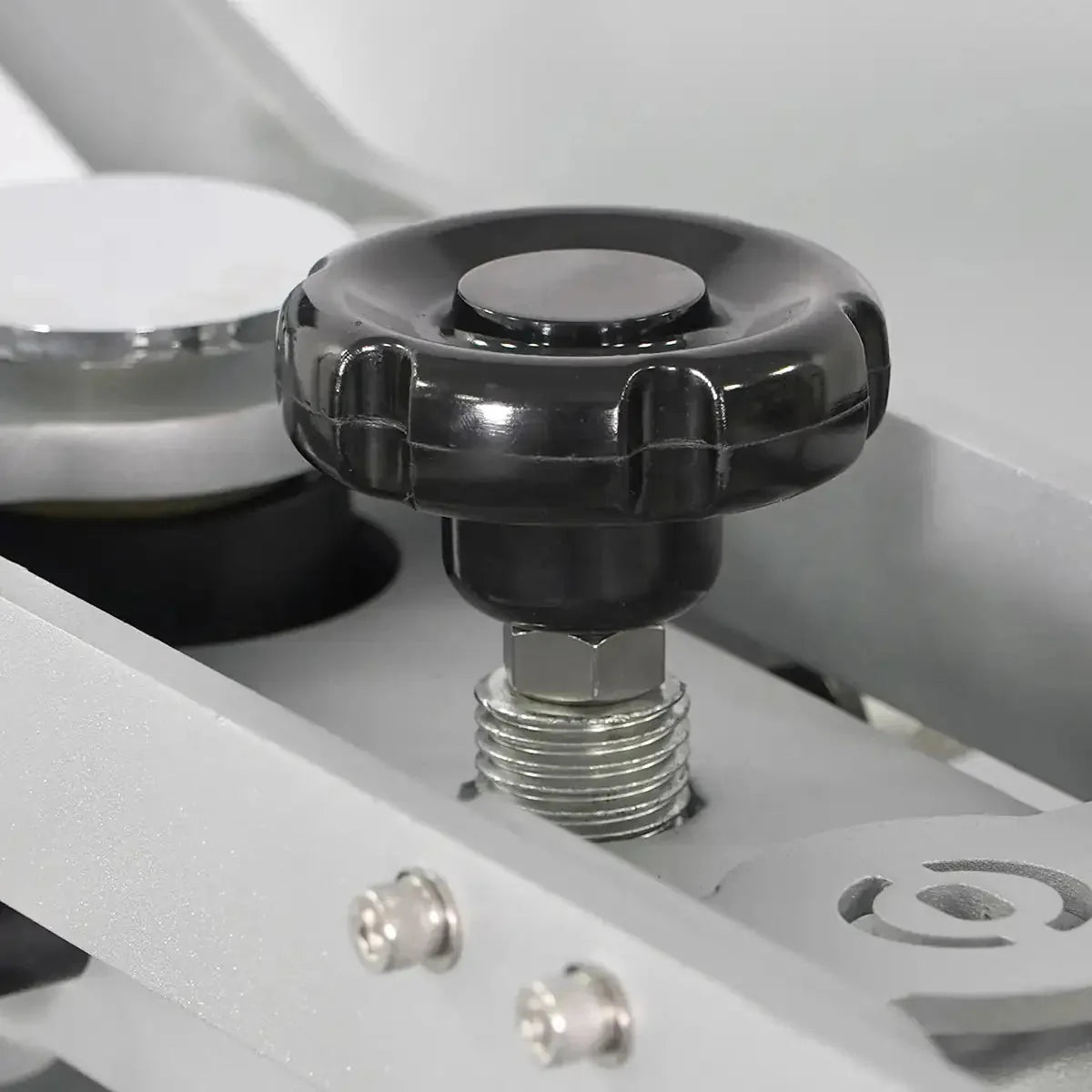

TITAN is engineered for dependable, even pressure across a wide range of substrates. The double-bar handle and pull-down lever design help deliver smooth, uniform pressure application for repeatable results job after job. The upgraded heating element is over 20% thicker than the Vector Series version, providing stronger heat retention, better temperature consistency, and more stable performance during extended runs. A built-in heat protection shield adds another layer of operator safety.

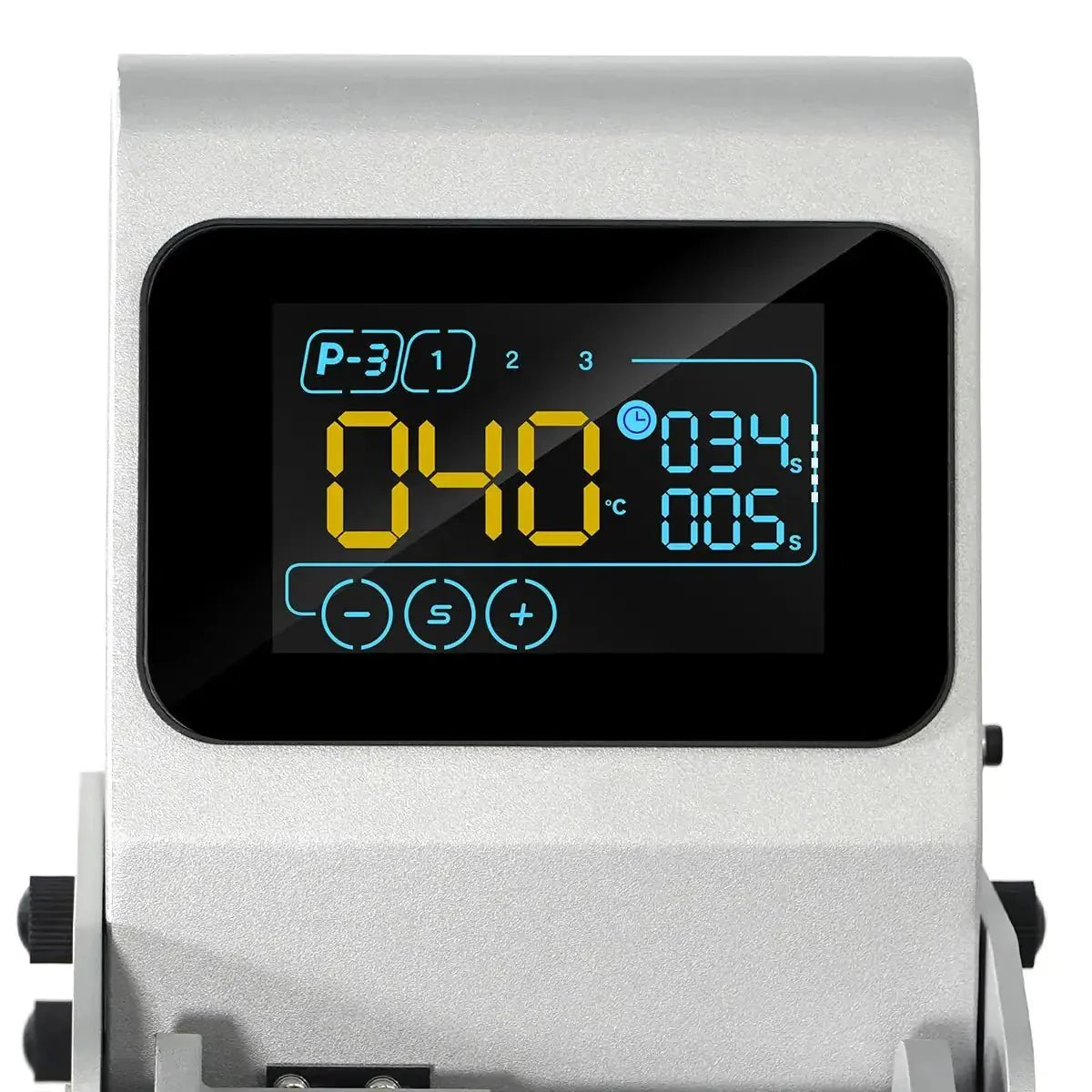

Control is just as advanced as the mechanical design. TITAN features a redesigned control box with touchscreen operation, real-time pressure display, and three programmable presets for quick setup on repeat jobs. A built-in backup fuse helps minimize disruption, while auto-open and manual modes give you flexibility based on your workflow. With premium gas shocks and interchangeable lower platens, TITAN adapts easily to different production needs.
If your goal is to increase efficiency, improve consistency, and upgrade your shop with a more capable dual-station press, TITAN is built to deliver.
Specifications
| Workstation Count | Dual |
|---|---|
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up to 150 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1700W |
| Voltage | 120V |
| Amps | 14.2A |
| Machine Dimensions | 59" x 41" x 31" |
| Shipping Size | 44.5" x 35.8" x 32.3" |
| Net Weight | 247 lb |
| Shipping Weight | 363.7 lb |
| Method of Operation | Double Station & Auto Open |
| Machine Line | TITAN |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
Key features
- 21% thicker platen than the Vector series 21% thicker platen than the Vector series | More thermal mass, flatter heat across the surface, faster recovery between presses.
- Two stations, one operator Two stations, one operator | Dress the next garment while the current one presses. Up to 150 pieces an hour.
- Reinforced Titan frame Reinforced Titan frame | Built for continuous production, not intermittent use.
- Auto-open release Auto-open release | Both stations open themselves at zero.
- More threading clearance More threading clearance | Extra room to work a garment on and align a transfer before you commit.

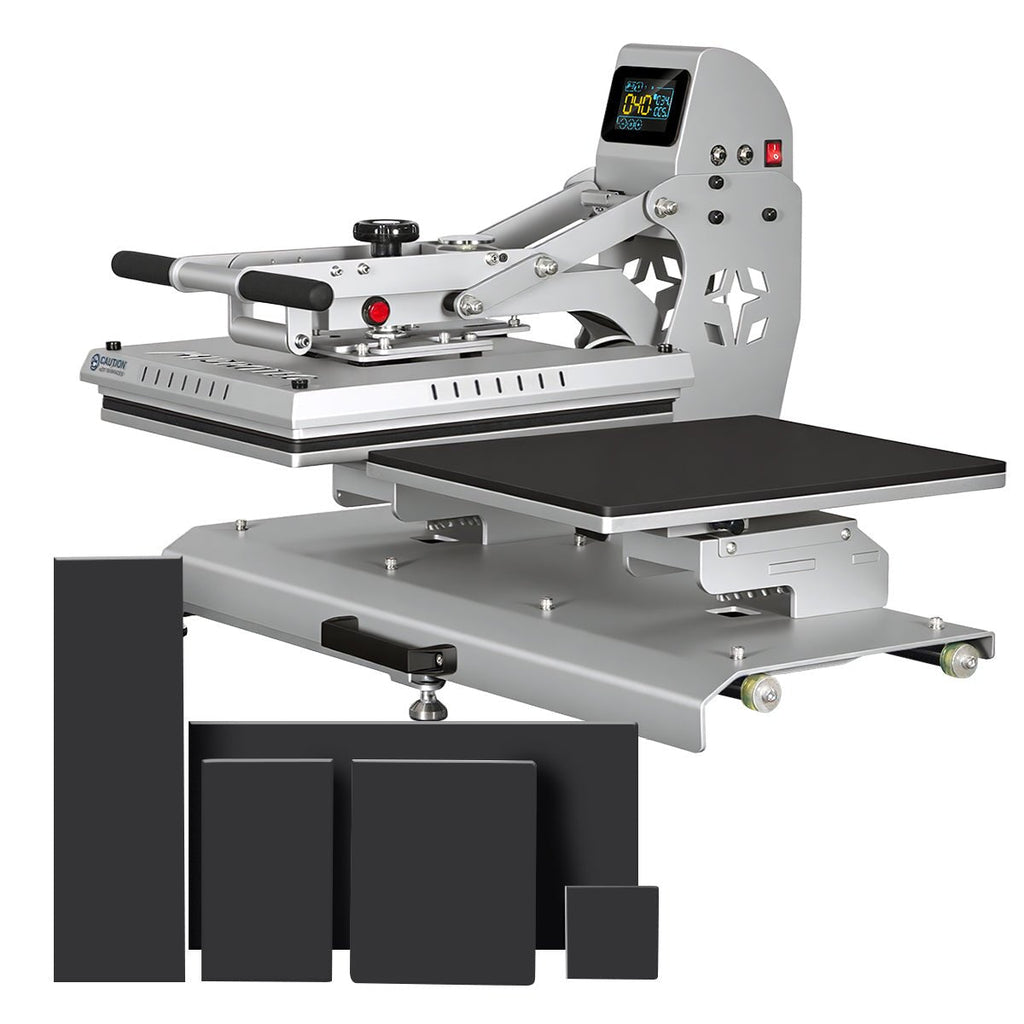

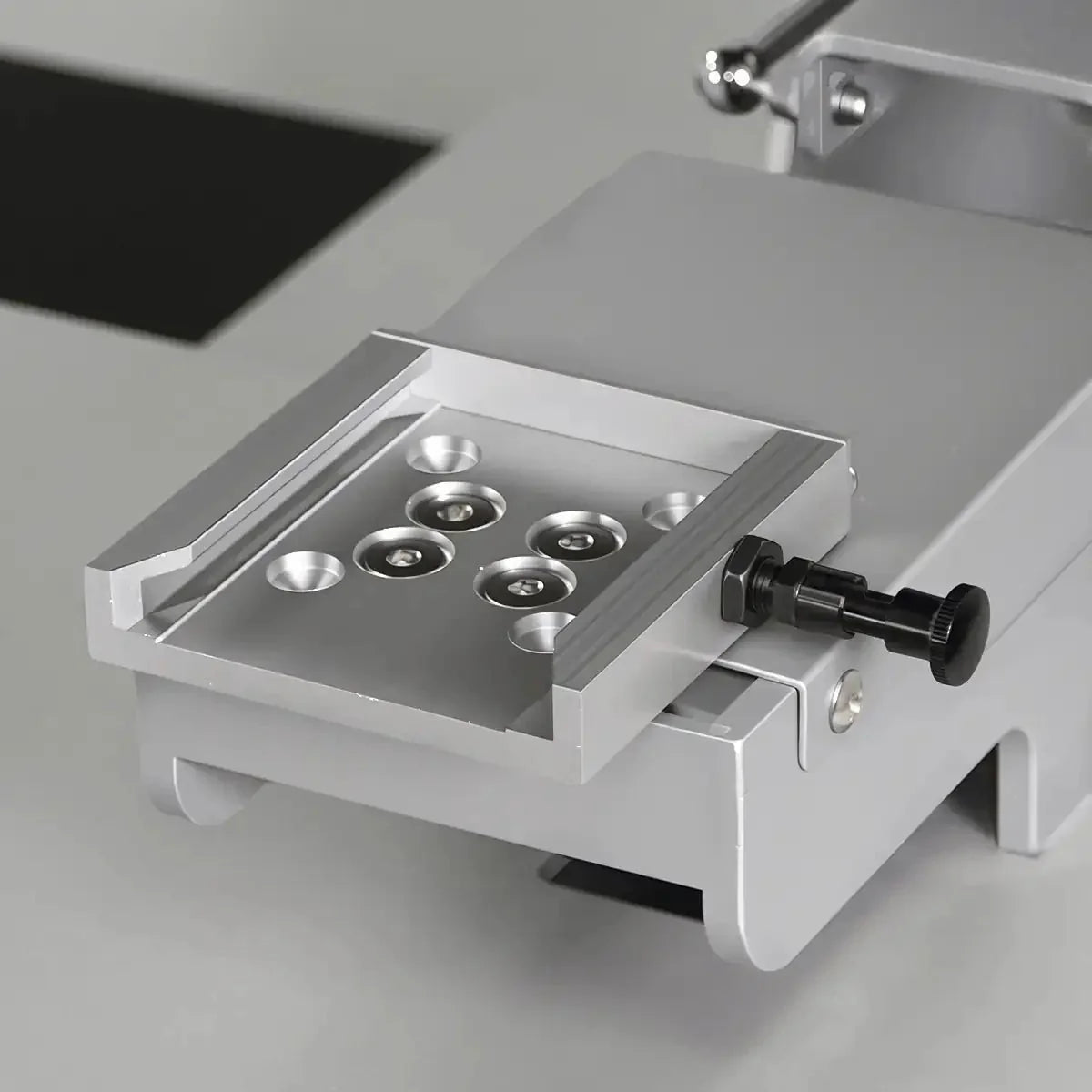

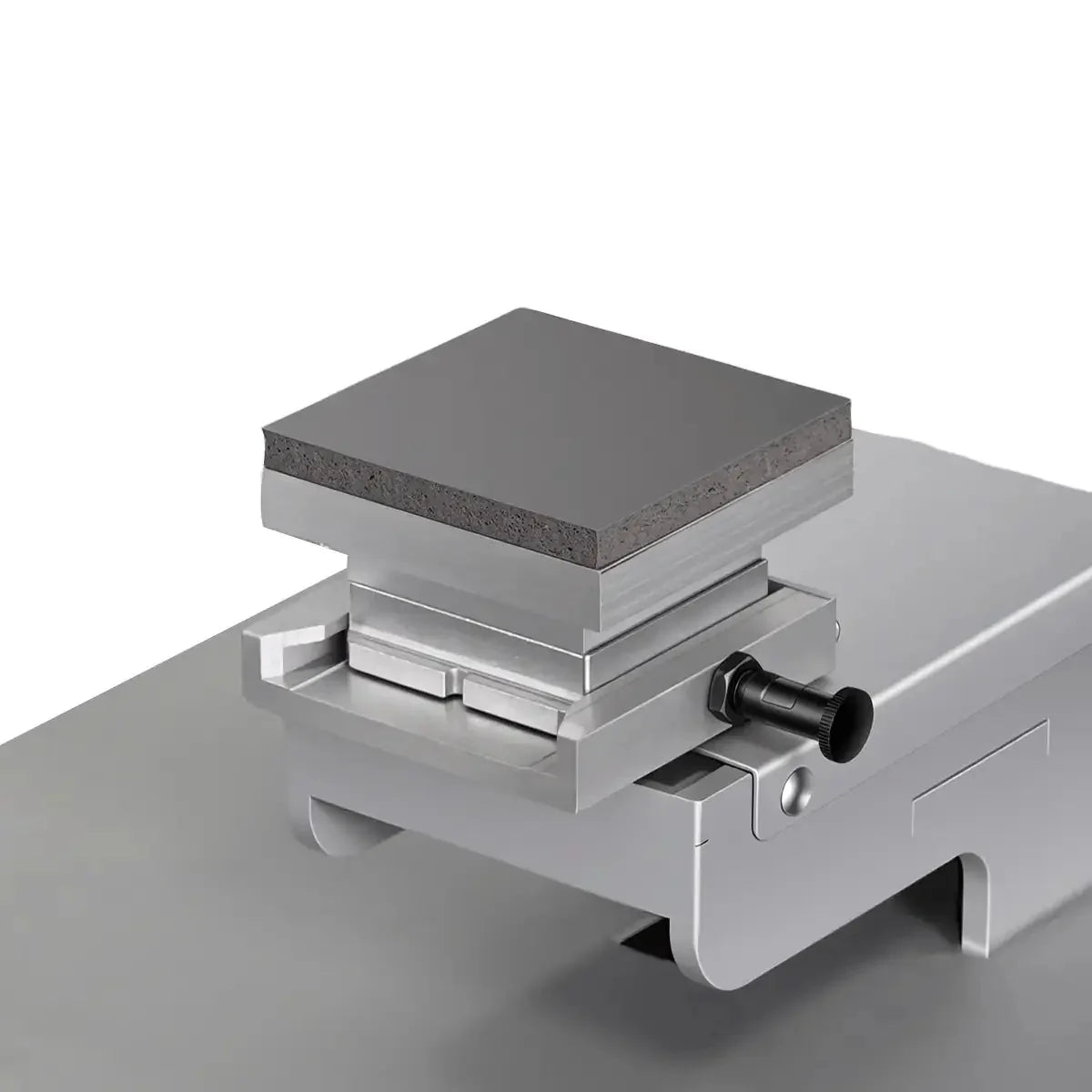

- Up to 12 interchangeable lower platens Up to 12 interchangeable lower platens | Sleeves, pant legs, bags, labels, youth sizes and awkward placements. Platens sold separately.
Calculate your return on investment
Enter your numbers to estimate output, profit and how quickly this machine pays for itself.
