VECTOR 16” x 20” Dual Station Pneumatic Heat Press with Integrated Stand & Laser Alignment

Save 24%
MicroTec USASKU: V1620-APL2-D
Price:
$2,499.00 USD $3,290.00 USD

Shipping calculated at checkout

Description

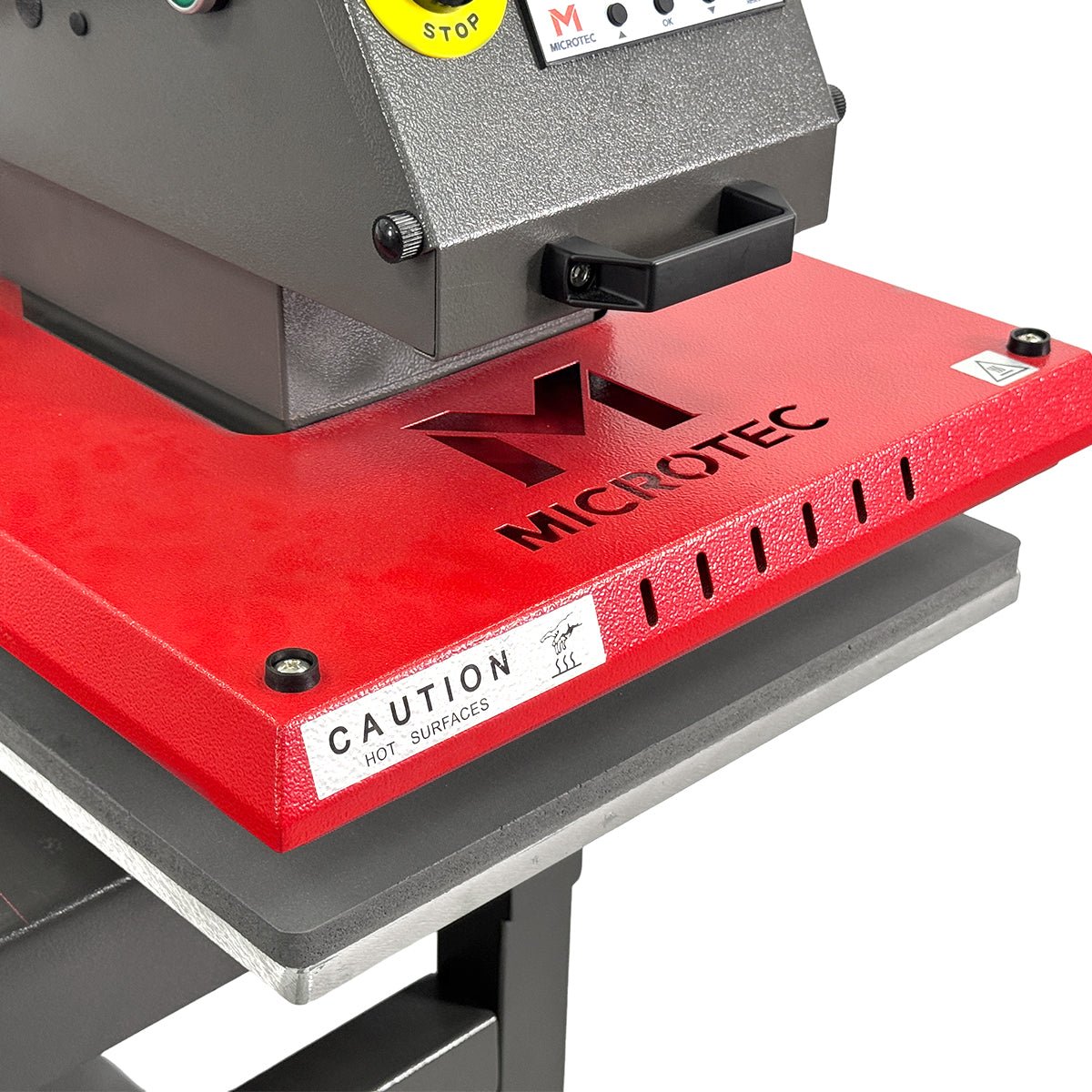

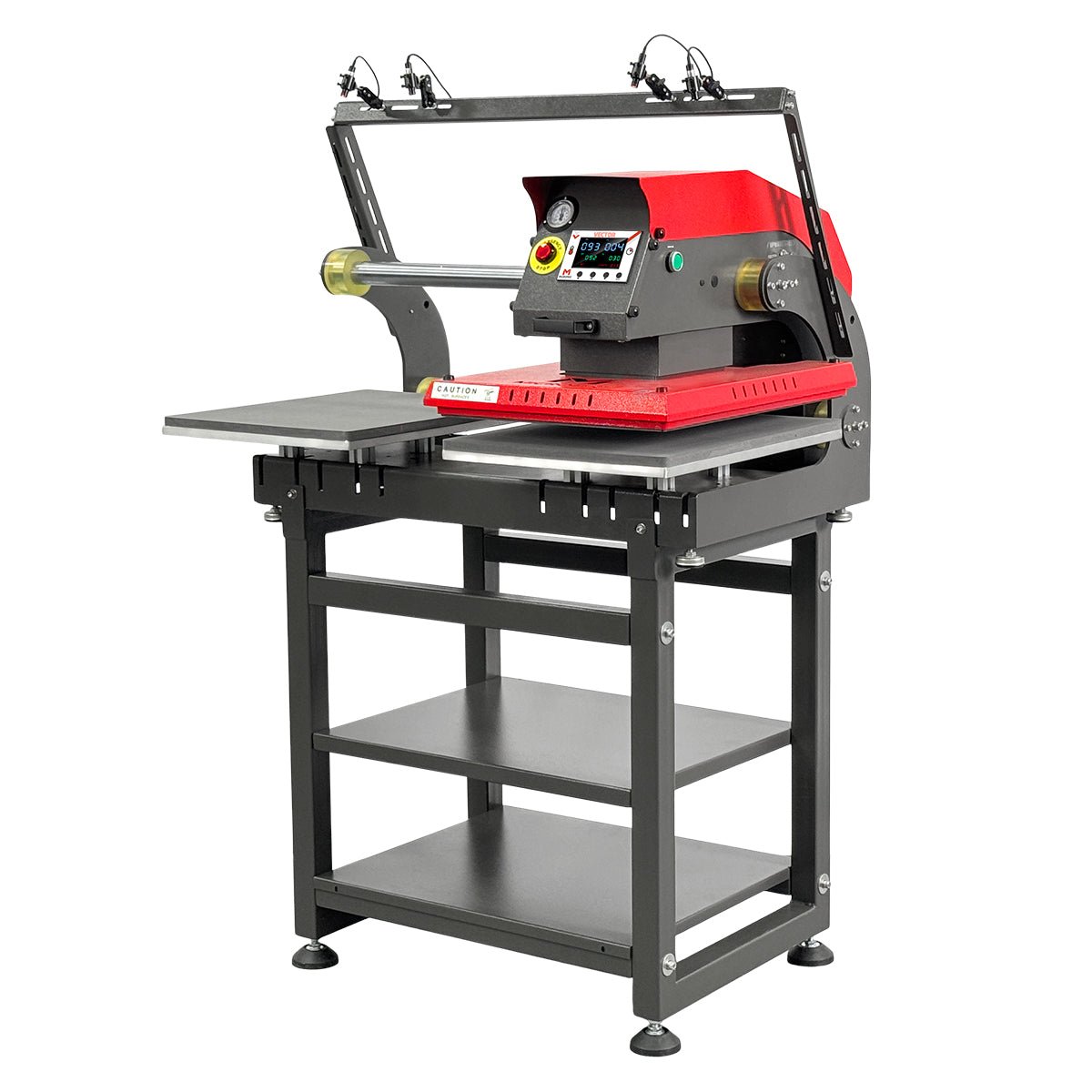

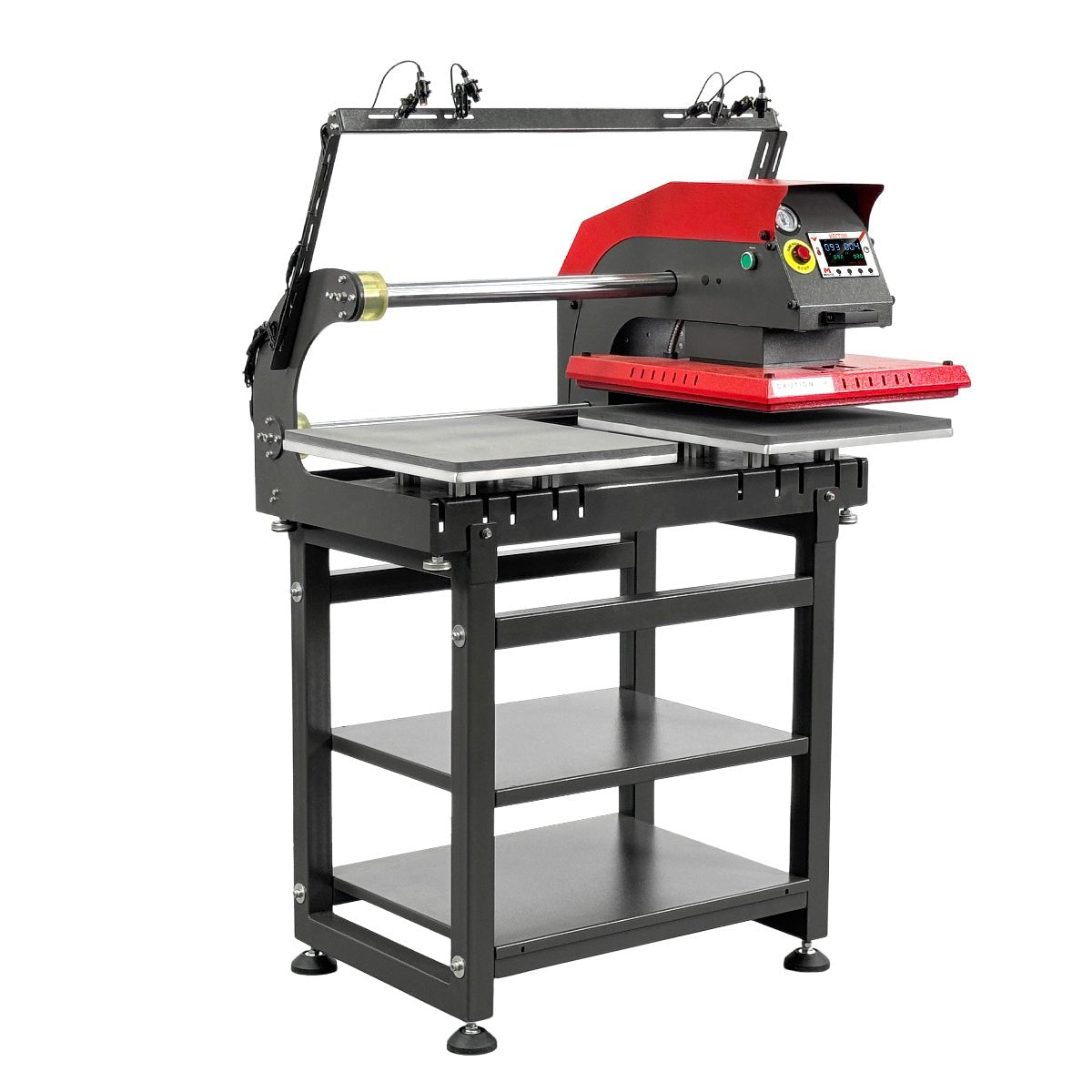

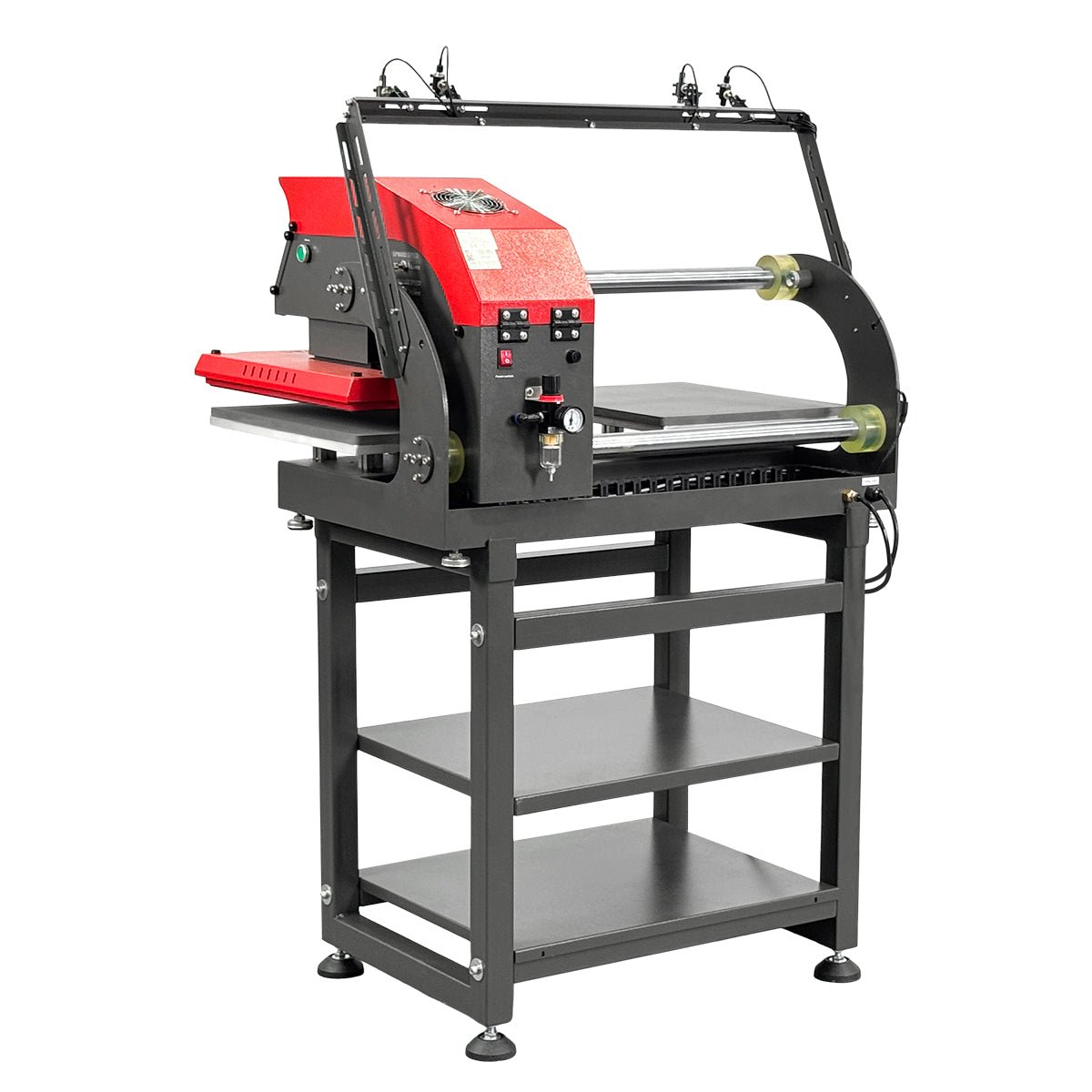

The VECTOR 16" x 20" Auto / Semi-Auto Dual Station Pneumatic Heat Press is engineered to deliver higher efficiency, stronger consistency, and easier operation for demanding production environments. Built with a laser-cut steel frame and integrated stand, VECTOR is designed for long-term durability and dependable daily use. Its dual sliding lower platens allow operators to press one item while preparing the next, helping increase workflow speed and reduce downtime. An integrated anti-burn shield adds extra operator safety during production.

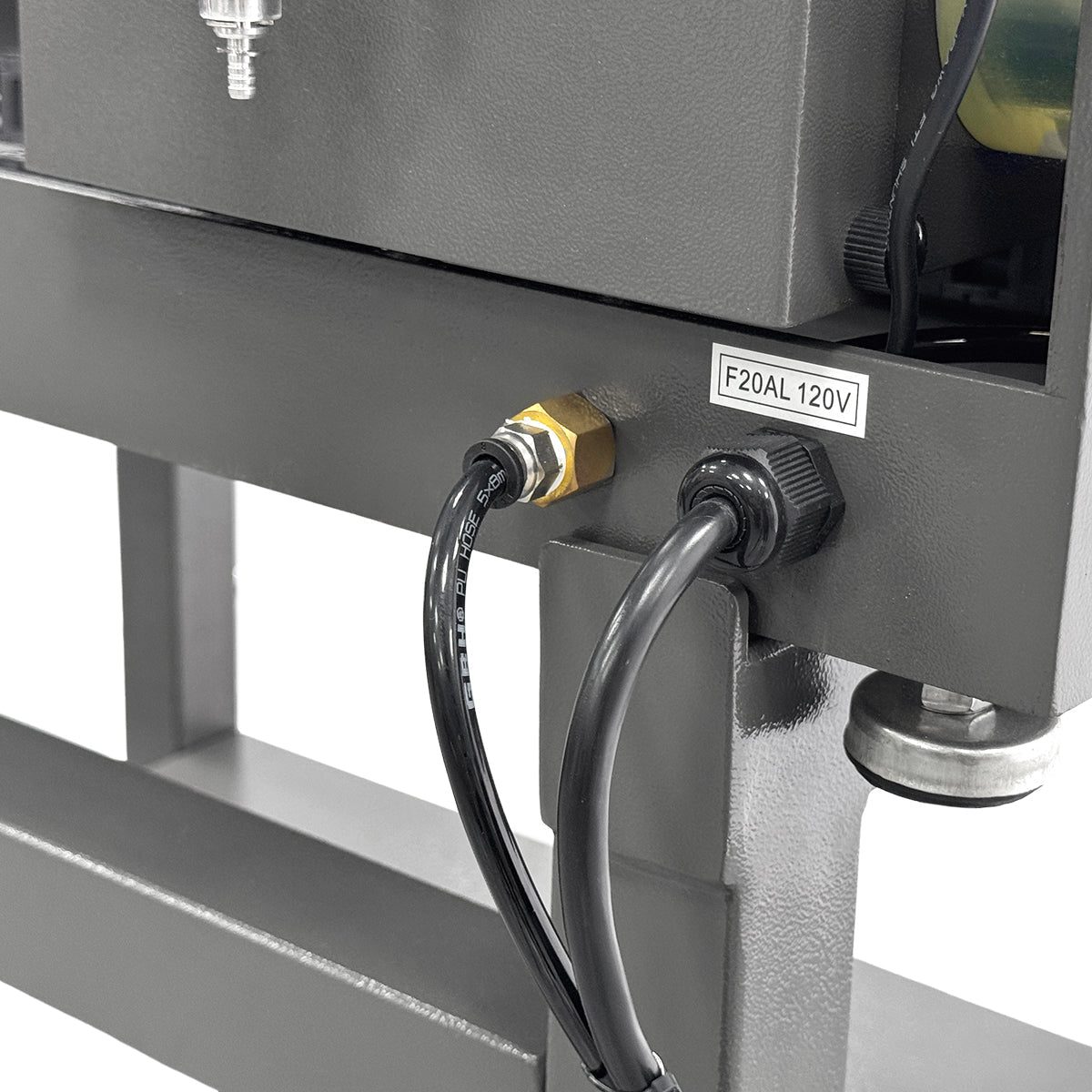

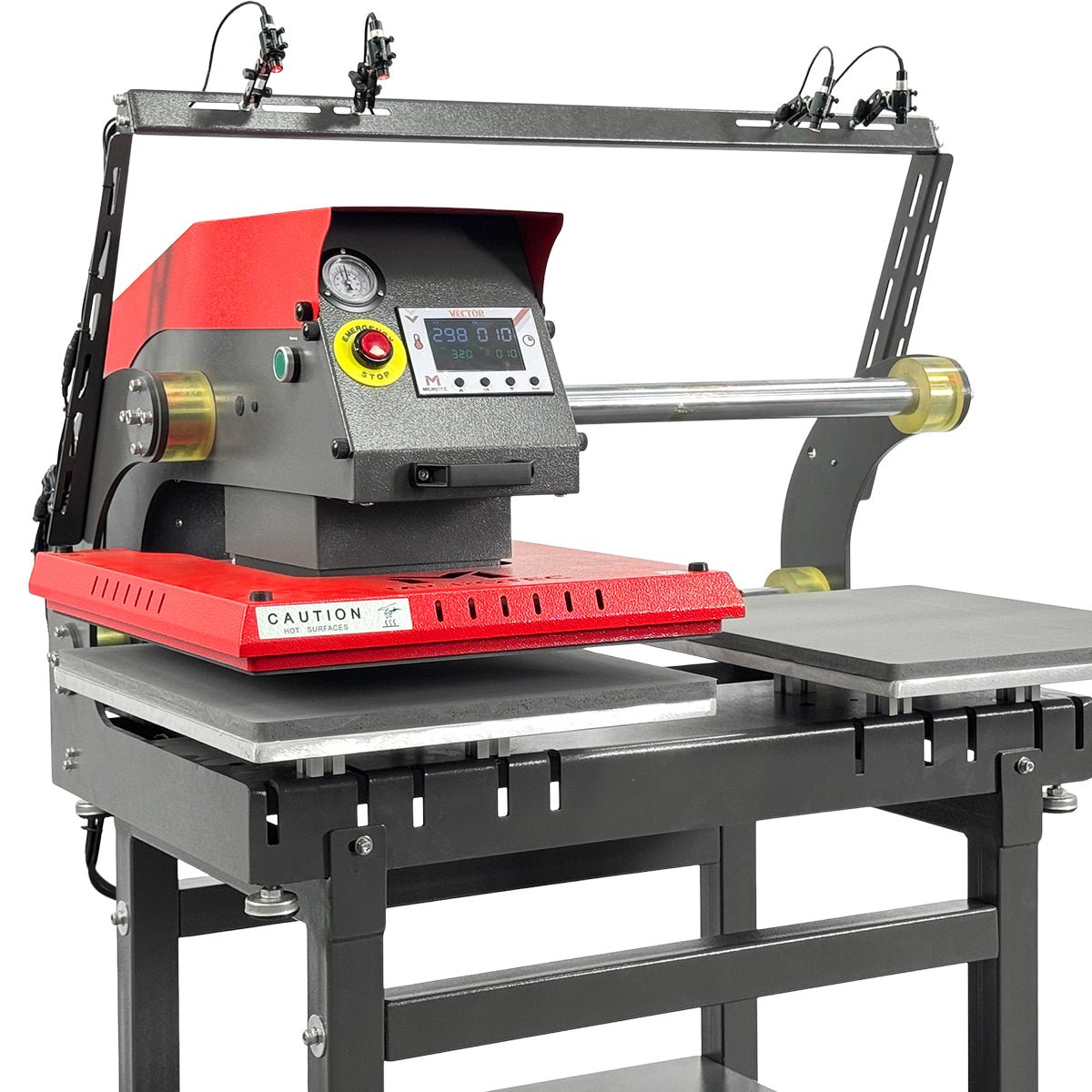

As a pneumatic heat press, VECTOR uses air-powered operation to reduce physical effort and improve consistency. Users can set the desired pressure, activate the press with the push of a button, and let the machine complete the cycle automatically. Once the timer reaches zero, the press opens on its own. Powered by an external air compressor (sold separately), this system helps reduce operator fatigue while ensuring that every transfer receives more consistent time, temperature, and pressure regardless of who is using the machine. VECTOR also features automatic station switching, allowing the upper control housing and heating element to move to the opposite platen at the push of a button for faster and smoother operation.

To further improve accuracy and flexibility, VECTOR is equipped with laser positioning, helping operators place garments more precisely and achieve more consistent alignment during setup. It also supports multiple interchangeable lower platens, giving the machine maximum versatility for different garment sizes, print locations, and specialty applications.

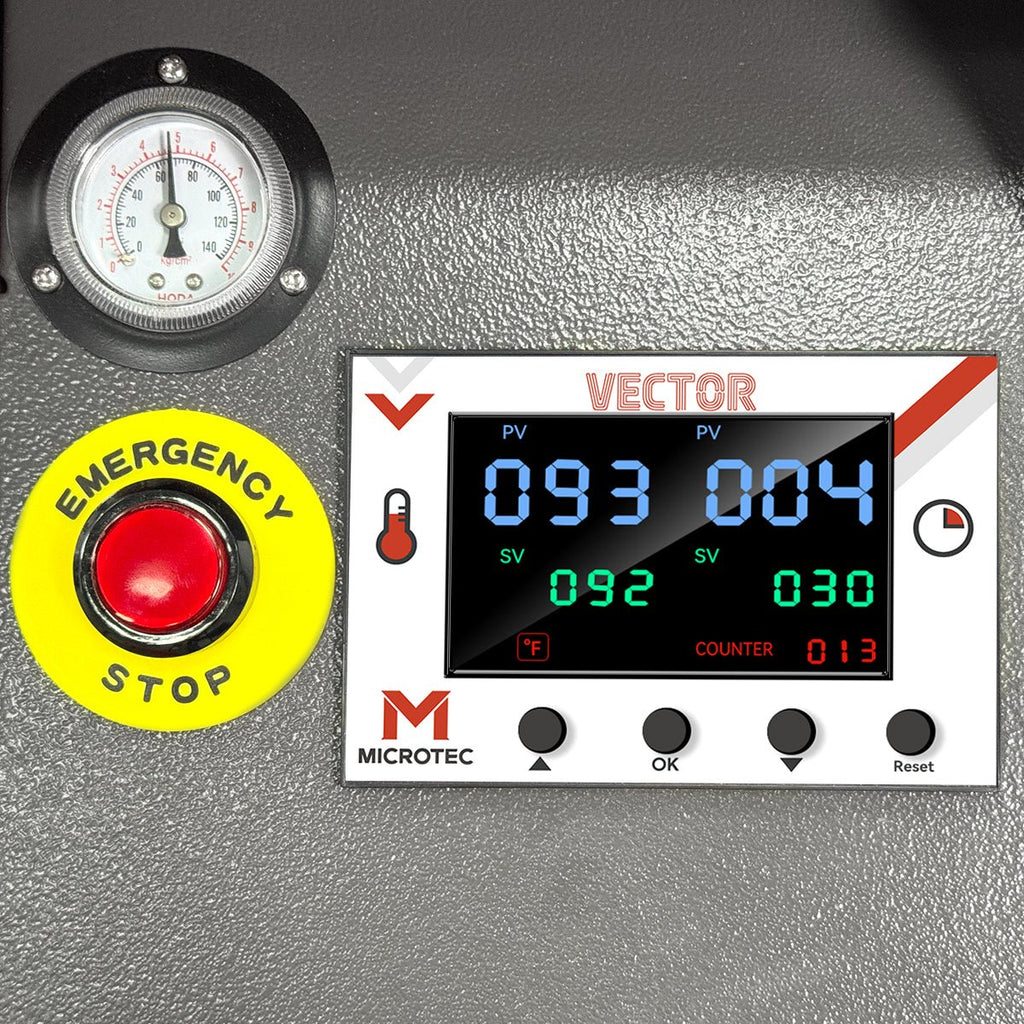

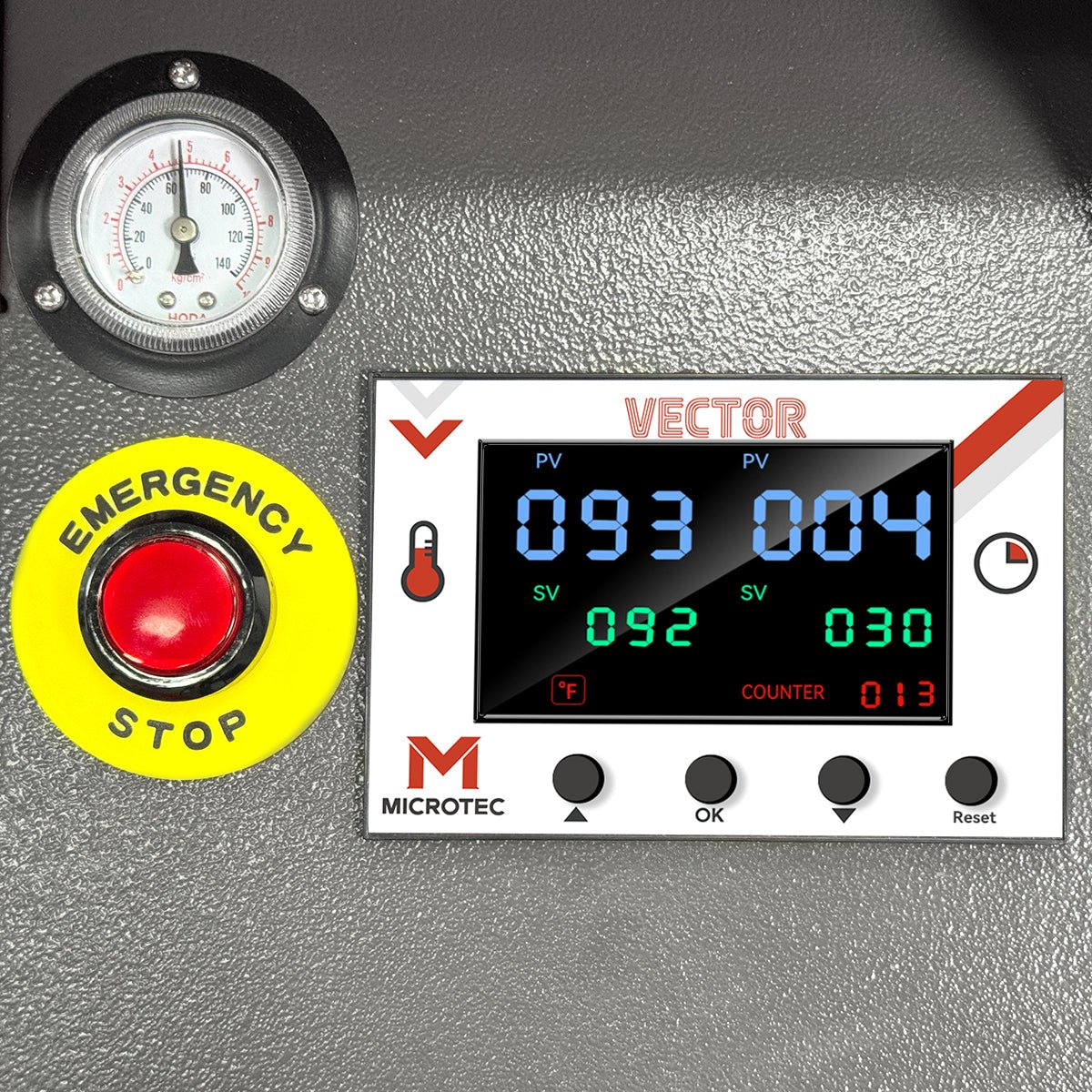

The control box includes three preset memory slots for added convenience and peace of mind. With powerful pneumatic performance, dual-station efficiency, built-in base with two shelves, laser-assisted positioning, and expanded platen options, the VECTOR Heat Press is built to bring more precision, flexibility, and productivity to your business.
150units an hour
Dualstation
Pneumaticoperation
15.7" x 19.7"platen

Specifications

Workstation CountDual
Platen Size15.7" x 19.7"
Production CapacityUp to 150 units/hour*
Temperature Range32-446°F
Time Range0-999 seconds
Air Requirements4.2 CFM
Power Consumption1700W
Voltage120V
Amps14.2A
Machine Dimensions39" x 33" x 31"
Shipping Size45" x 39" x 43"
Net Weight421 lb
Shipping Weight638 lb
Method of OperationPneumatic
Machine LineVECTOR

* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.

Download the product manual Setup, operation and maintenance (PDF)

See it in action

Key features

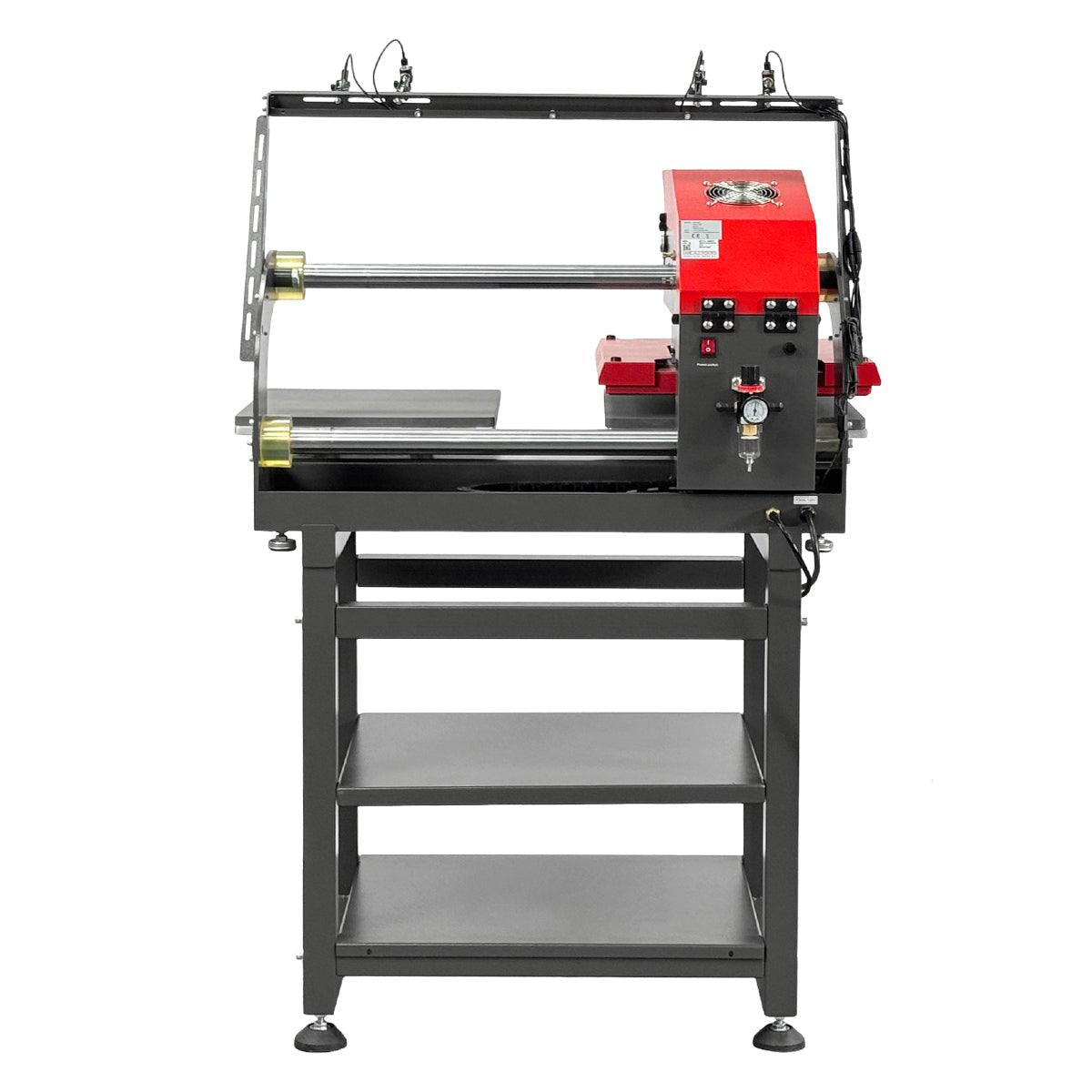

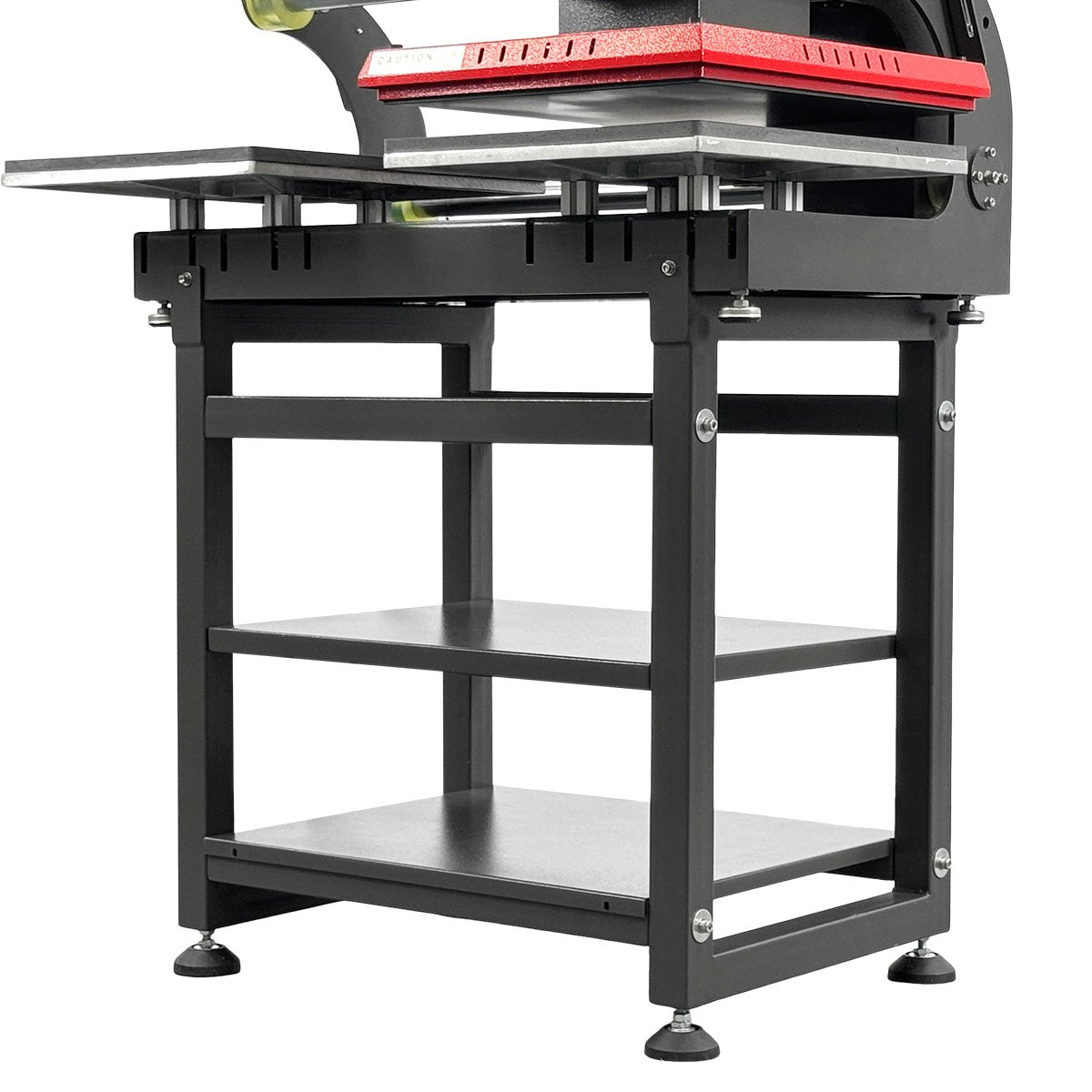

  • Reinforced frame and integrated stand Reinforced frame and integrated stand | Arrives on its own base. No bench to build, no table to reinforce.
  • Two stations, one operator Two stations, one operator | Dress the next garment while the current one presses, at up to 150 pieces an hour.
  • Air-driven, straight vertical press Air-driven, straight vertical press | Consistent pressure every cycle regardless of operator, and even pressure across rigid substrates.

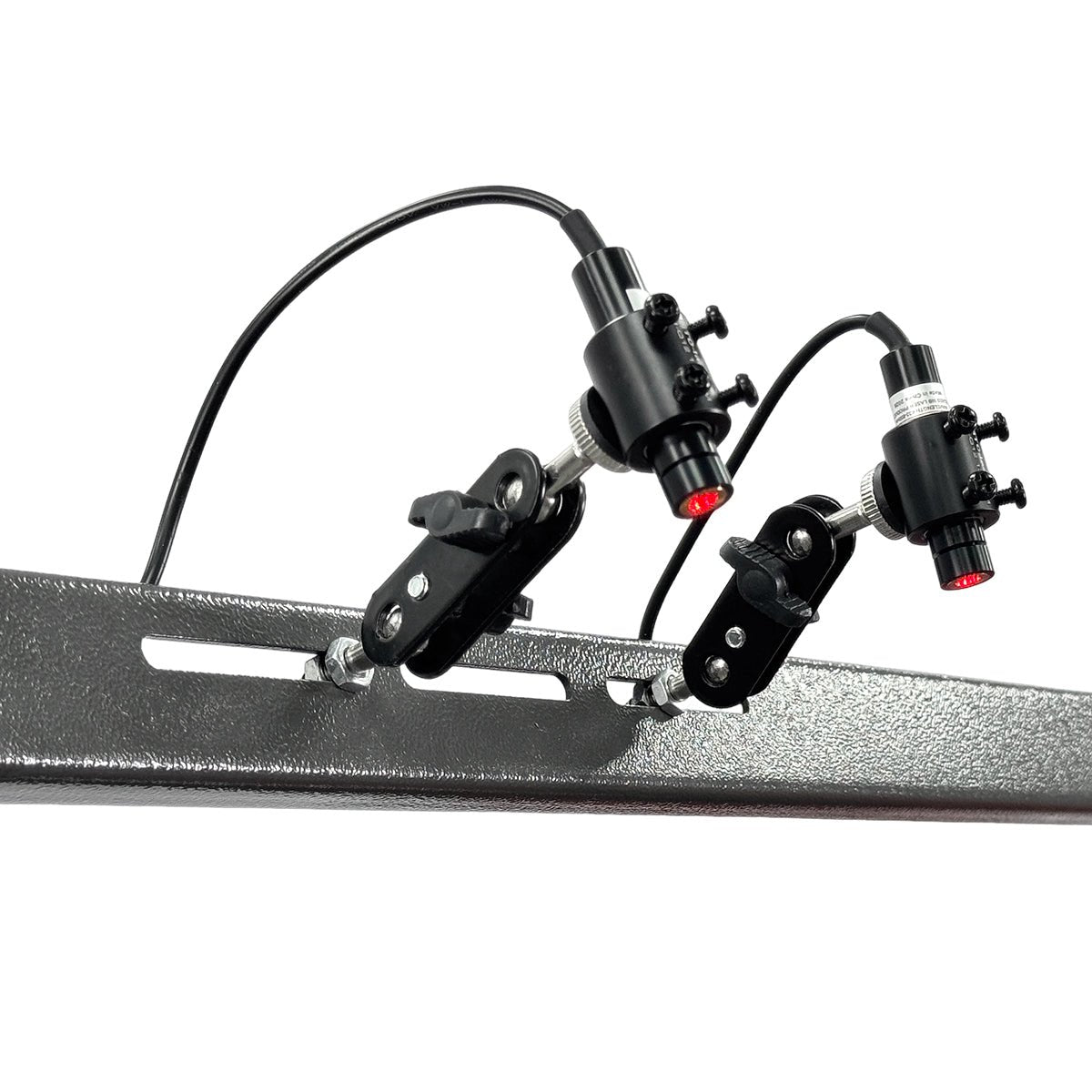

  • Eight-point laser alignment Eight-point laser alignment | Infrared guides put the transfer in the same place on every garment, which is the difference between a run that looks printed and one that looks hand-placed.

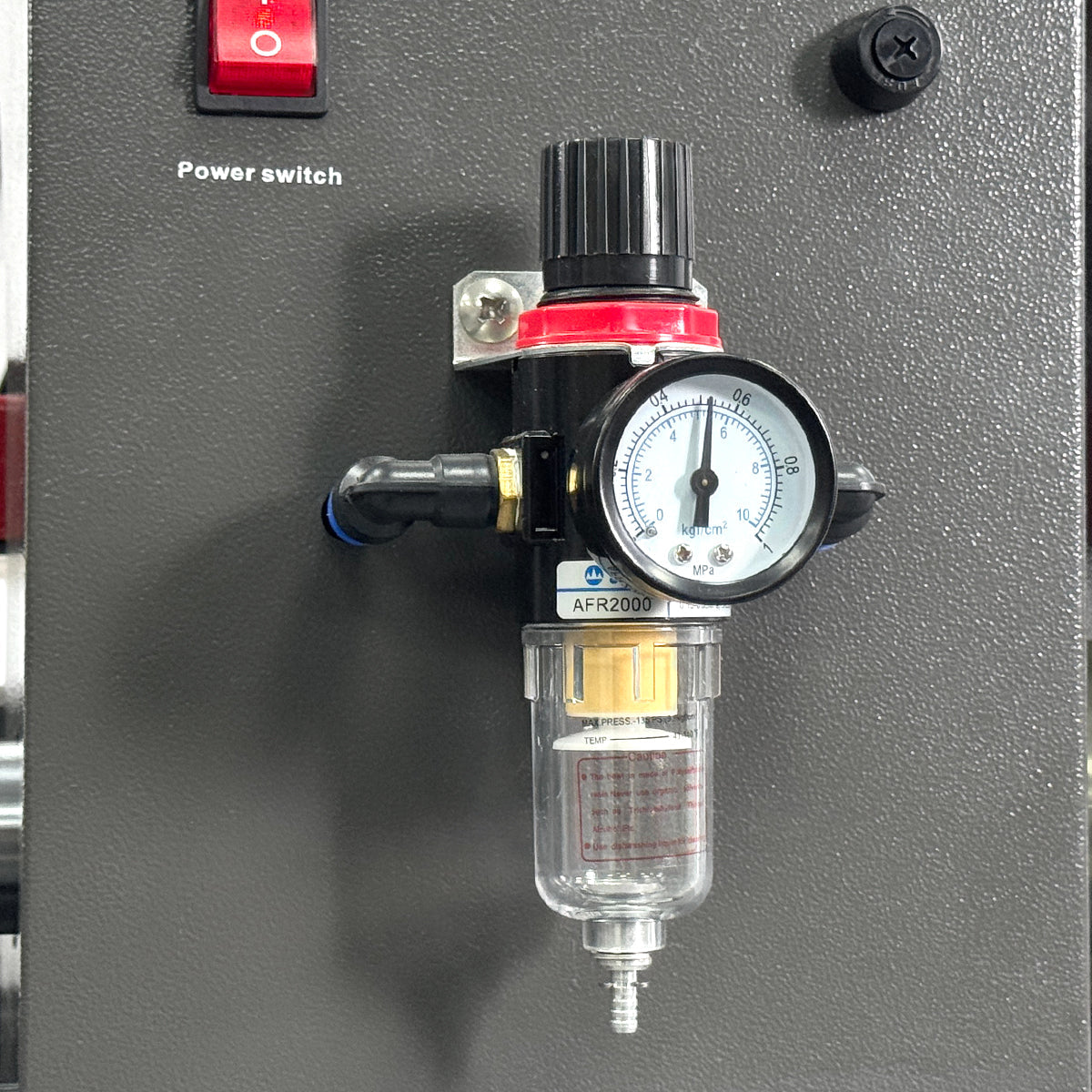

  • Needs a compressor Needs a compressor | 4.2 CFM. Not included, and worth sizing before the machine arrives.

Calculate your return on investment

Enter your numbers to estimate output, profit and how quickly this machine pays for itself.
