Description

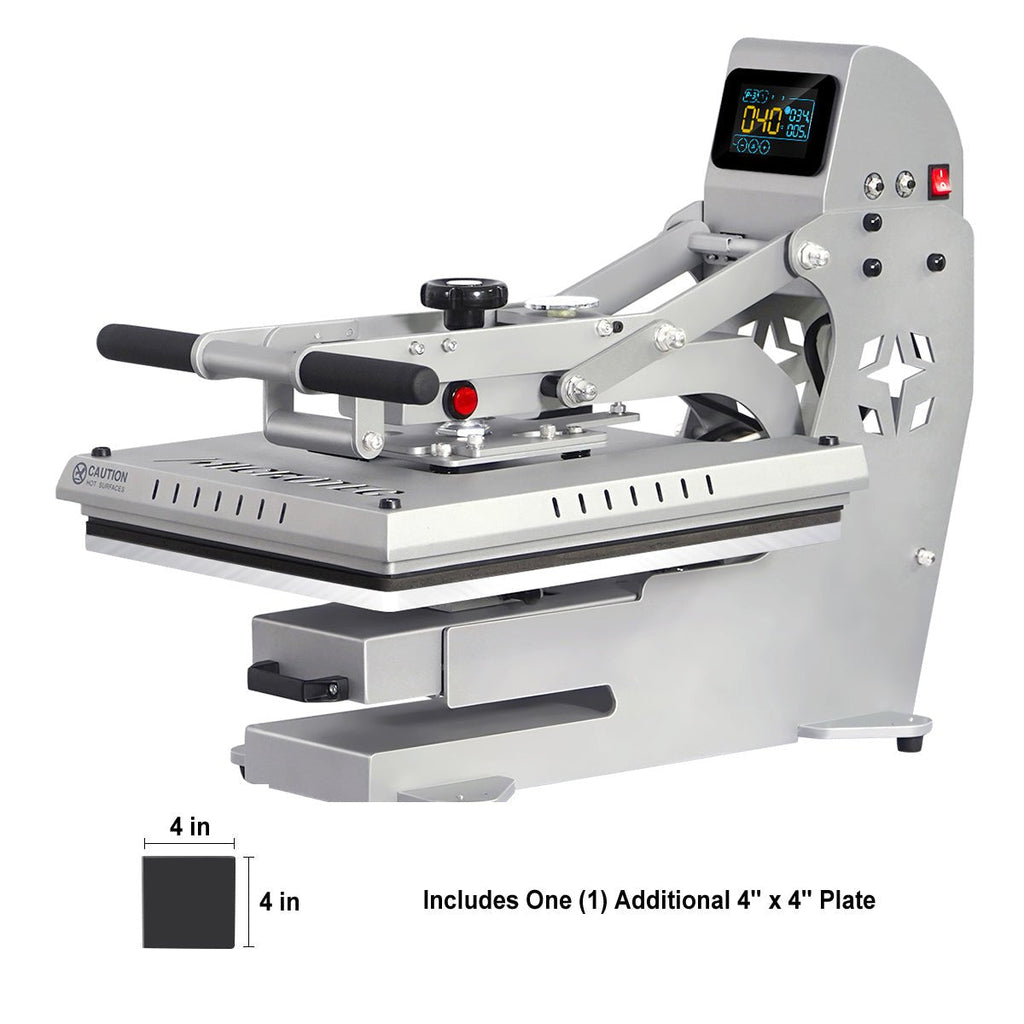

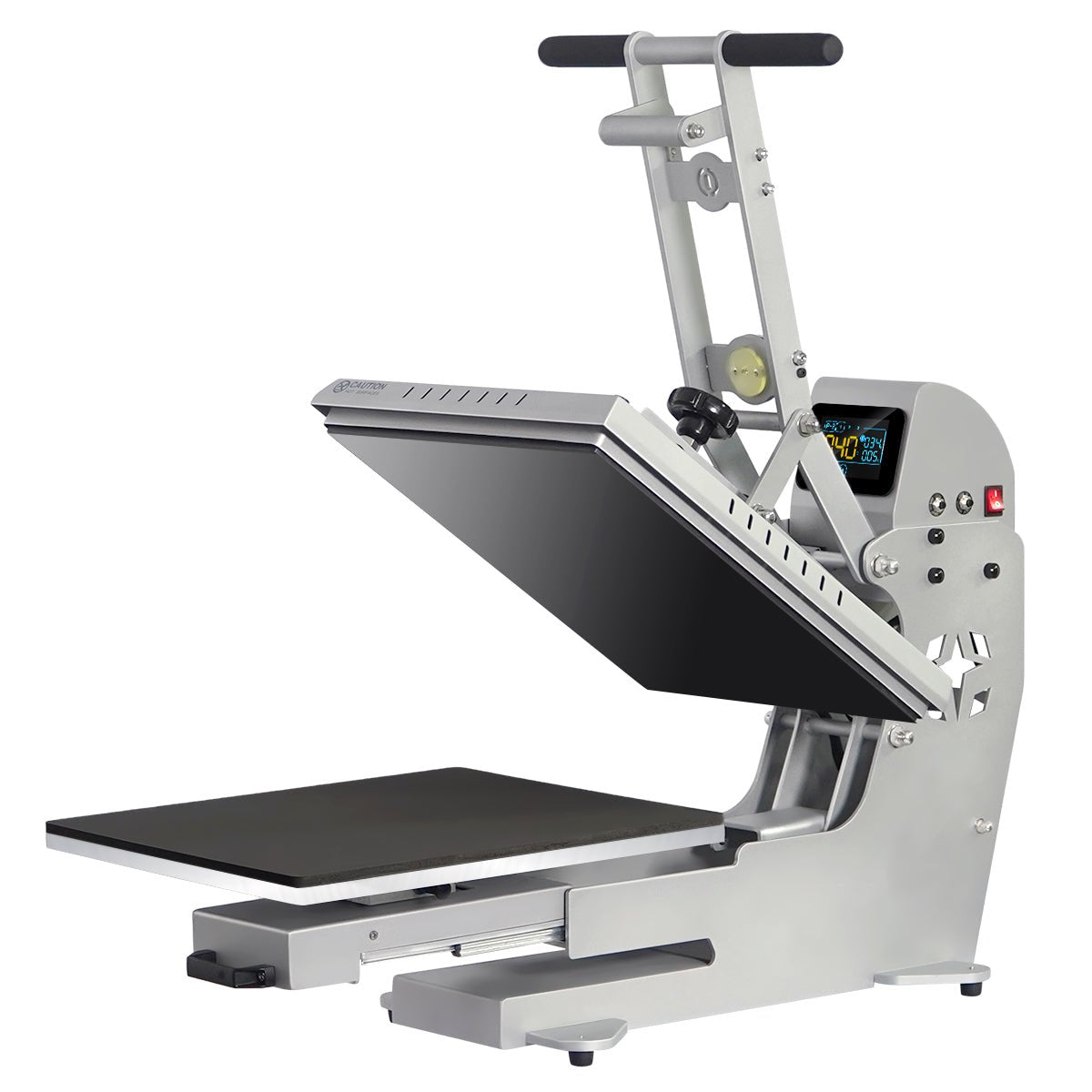

The TITAN 16" x 20" Auto-Open Precision Heat Press by MICROTECUSA is designed for serious production environments where reliability, consistency, and ease of operation matter every day. Built for repeatable performance across a wide range of transfer applications, TITAN gives print shops, commercial decorators, and professional DTF factories a dependable solution for efficient, high-volume workflow.

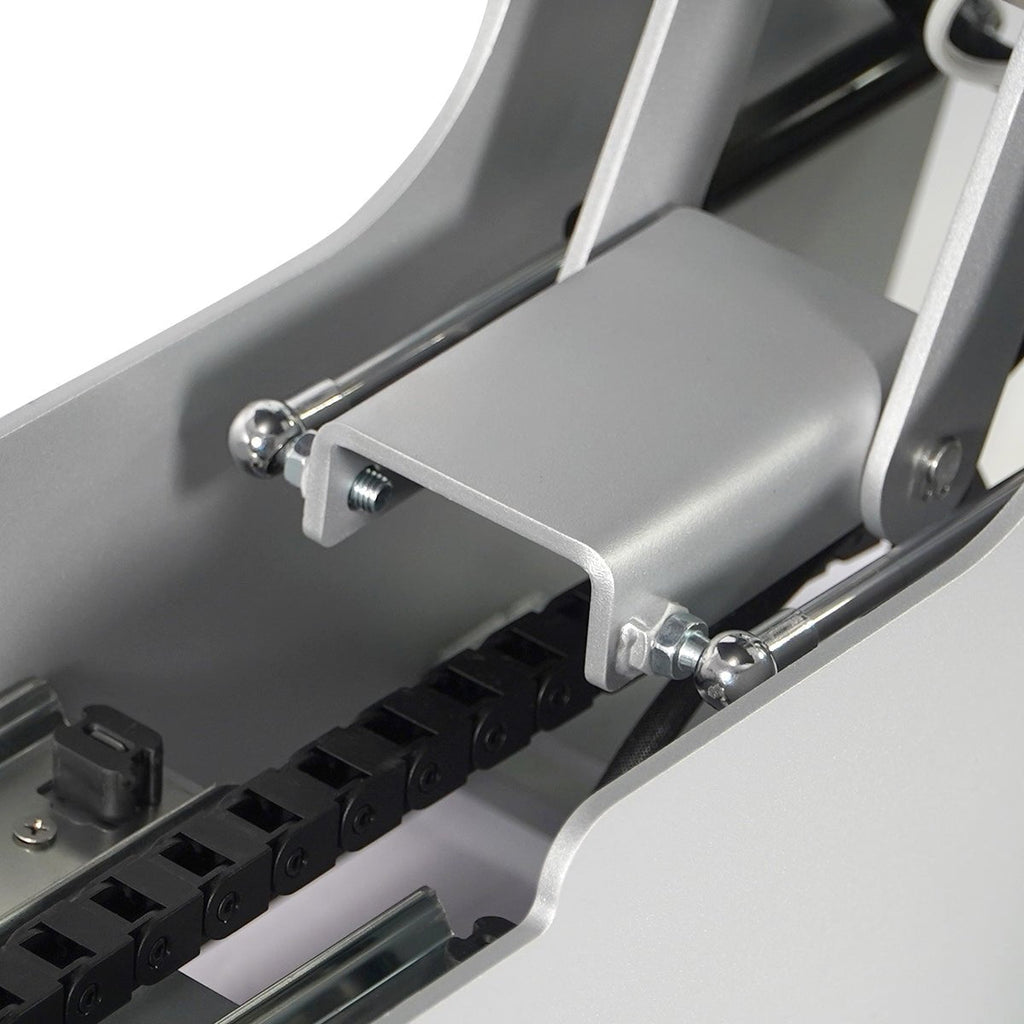

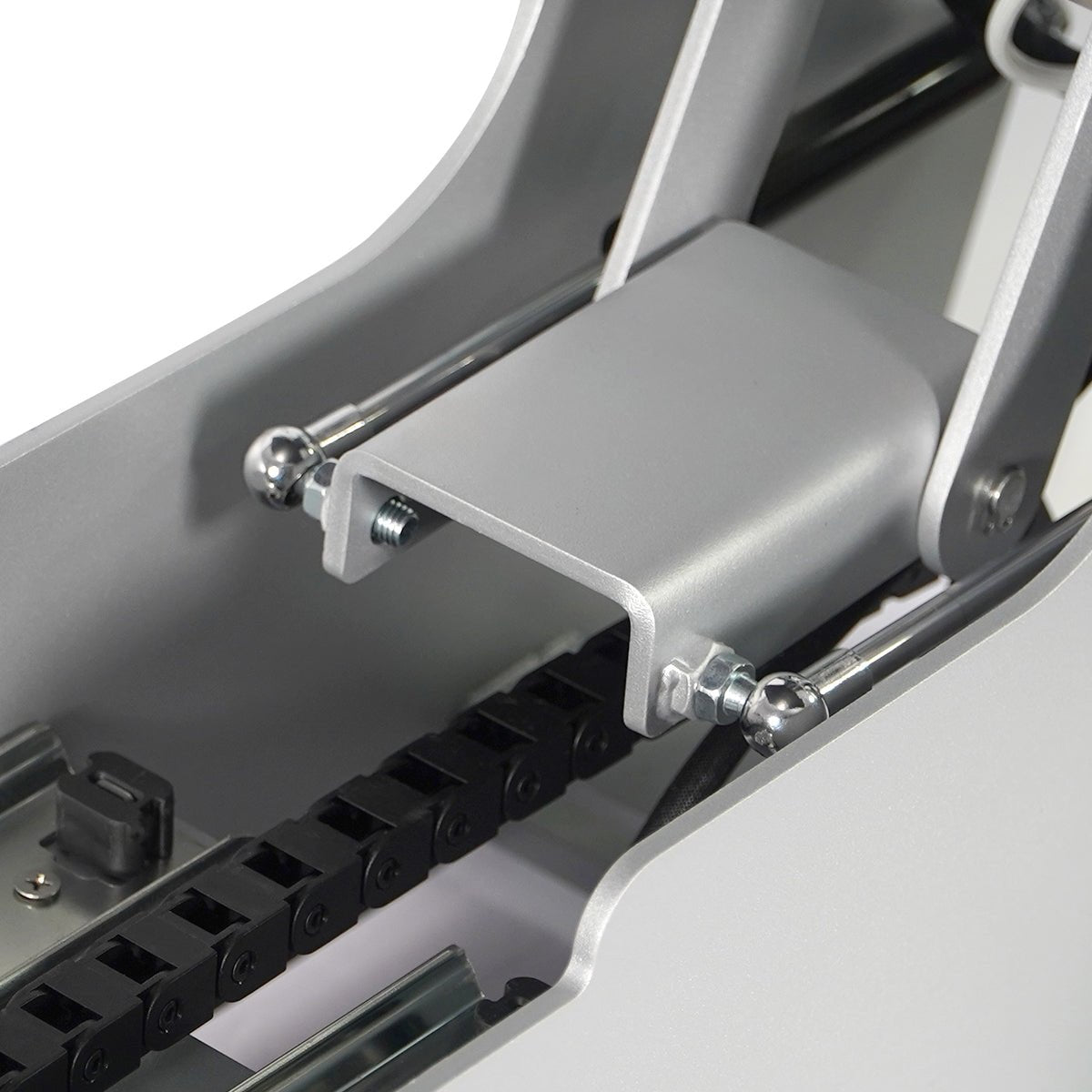

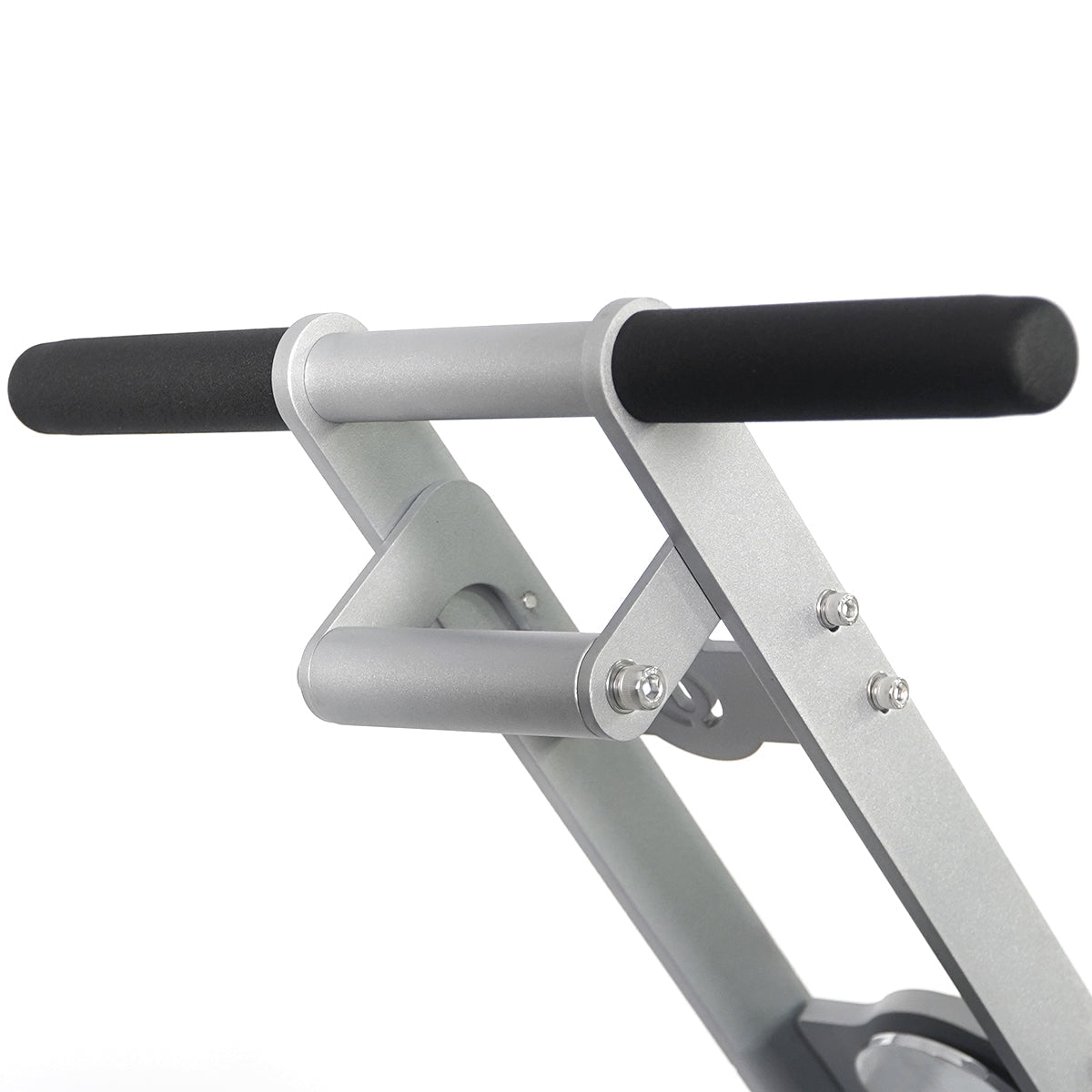

Built on a heavy-duty laser-cut steel frame, TITAN is made to handle demanding commercial use over the long term. Its dual-bar handle and pull-down lever system are engineered to provide smoother, more controlled pressure application, helping operators achieve even contact across different materials and substrate types. This results in more stable transfer performance and greater consistency from one job to the next.
For thermal performance, TITAN features an upgraded heating system designed to deliver improved heat retention, more balanced temperature distribution, and stronger thermal stability during repeated production cycles. Compared with the previous Vector Series design, this upgraded heating assembly offers more consistent performance under continuous use. An integrated anti-burn shield also adds an extra level of operator protection during active production.
To improve daily usability, TITAN is equipped with an upgraded control system that combines convenience with practical production control. The touchscreen interface allows for straightforward operation, while the real-time pressure display gives users better visibility during setup and production. Three programmable preset slots help reduce setup time for repeat jobs and make it easier to move efficiently between commonly used applications. A built-in backup fuse adds another layer of protection and helps reduce avoidable interruptions during operation.

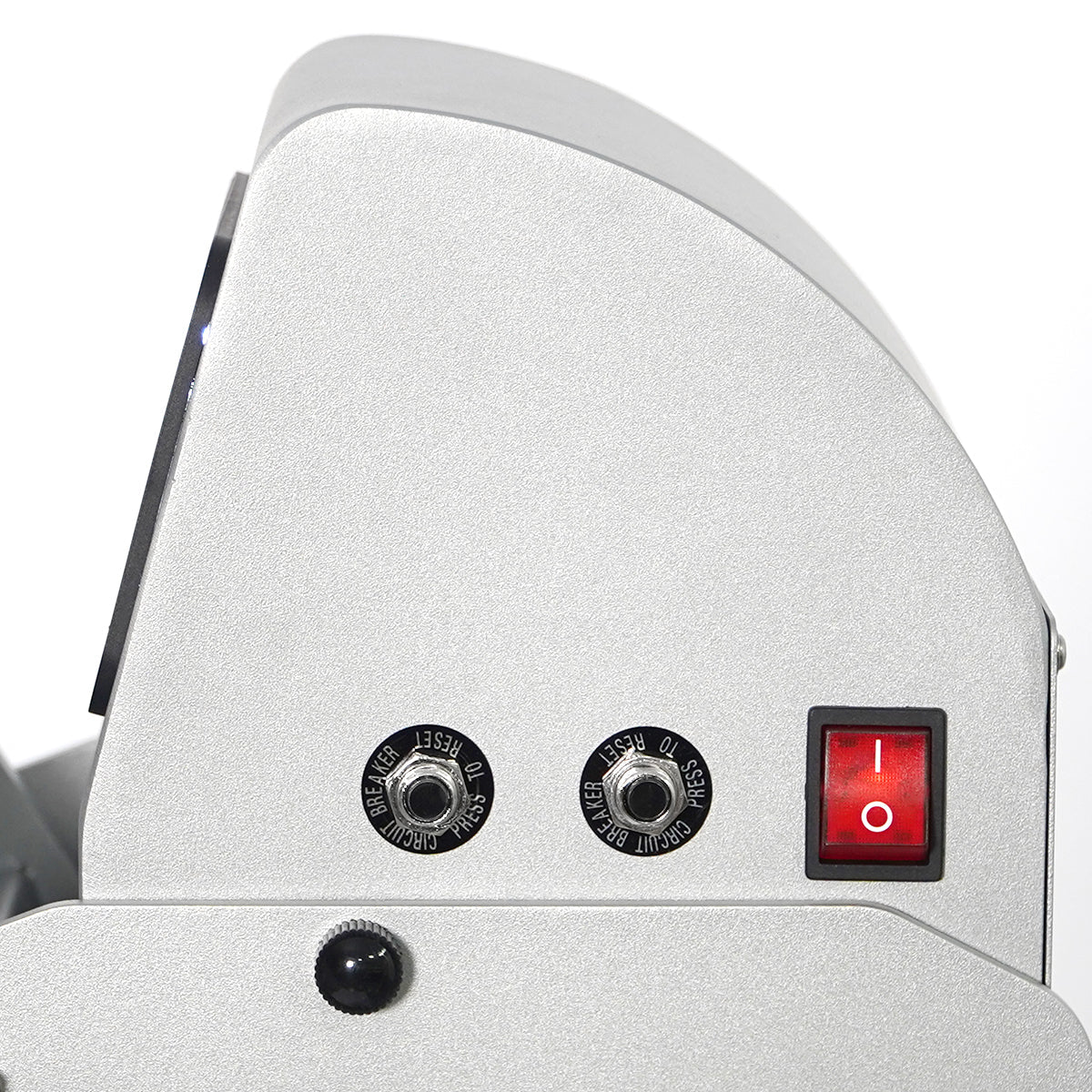

TITAN also incorporates a dual-breaker design to enhance electrical system reliability and provide added operational protection. This configuration helps reduce the likelihood of unnecessary downtime and supports more stable day-to-day performance in busy shop environments.

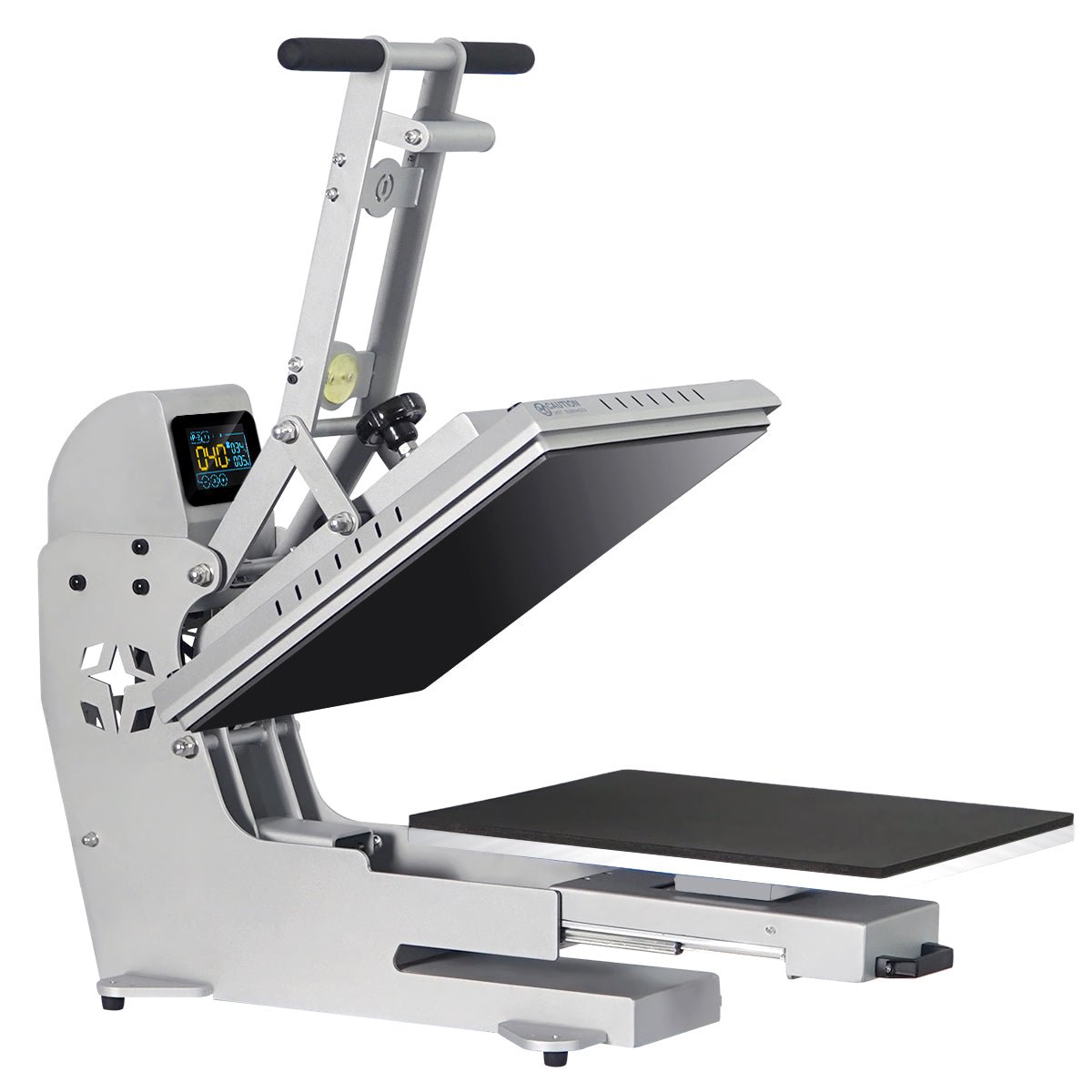

To support different production styles, TITAN can be operated in both auto-open and manual modes. Premium gas shocks assist with smooth opening performance, while interchangeable lower platens allow the machine to adapt more easily to different garment sizes and transfer applications. The slide-out lower platen further improves workflow by giving operators better access during loading and positioning, while also creating a safer and more comfortable working area away from the heated upper platen.
From growing print businesses to professional DTF factories, TITAN is built to meet the demands of modern production with dependable construction, stable heat performance, and operator-focused controls. It is a professional-grade heat press designed to support efficient workflow, repeatable output, and long-term production reliability.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 15.7" x 19.7" |
| Production Capacity | Up to 120 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1700W |
| Voltage | 120V |
| Amps | 15A |
| Machine Dimensions | 32" x 18" x 24.7" |
| Shipping Size | 23" x 36" x 23" |
| Net Weight | 143 lb |
| Shipping Weight | 171 lb |
| Method of Operation | Auto-Open & Slide-Out |
| Machine Line | TITAN |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
Key features
- 21% thicker platen than the Vector series 21% thicker platen than the Vector series | More thermal mass means a flatter temperature across the surface and a faster recovery between presses, which is what keeps transfer 400 looking like transfer 1.
- Reinforced Titan frame Reinforced Titan frame | Built for continuous production, not intermittent use.
- Auto-open release Auto-open release | Opens itself at zero, taking the strain out of long runs.
- Pressure readout Pressure readout | Shows you the pressure you are actually applying, so a setting that worked can be written down and repeated instead of re-guessed.
- More threading clearance More threading clearance | Extra room to work a garment on and align a DTF transfer before you commit.
- Slide-out lower platen Slide-out lower platen | Load away from the heat, then slide it home.

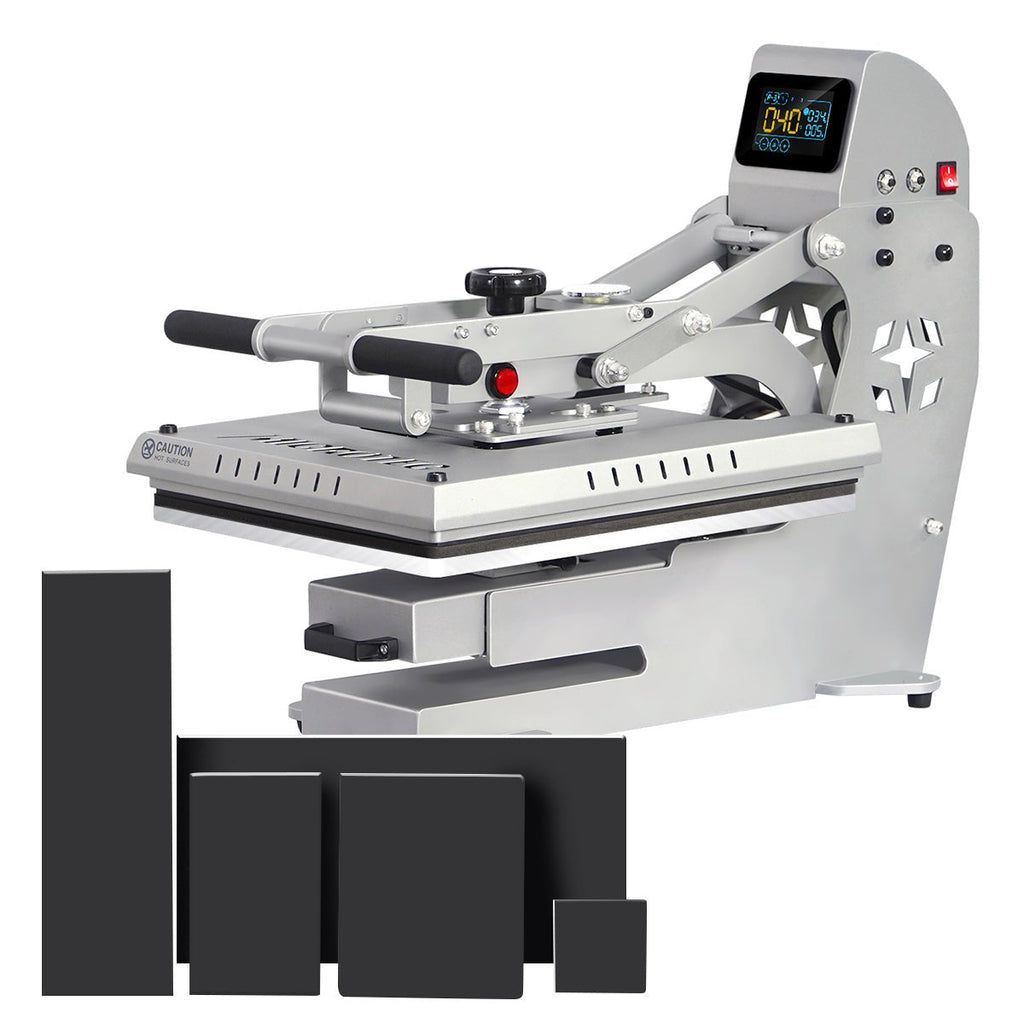

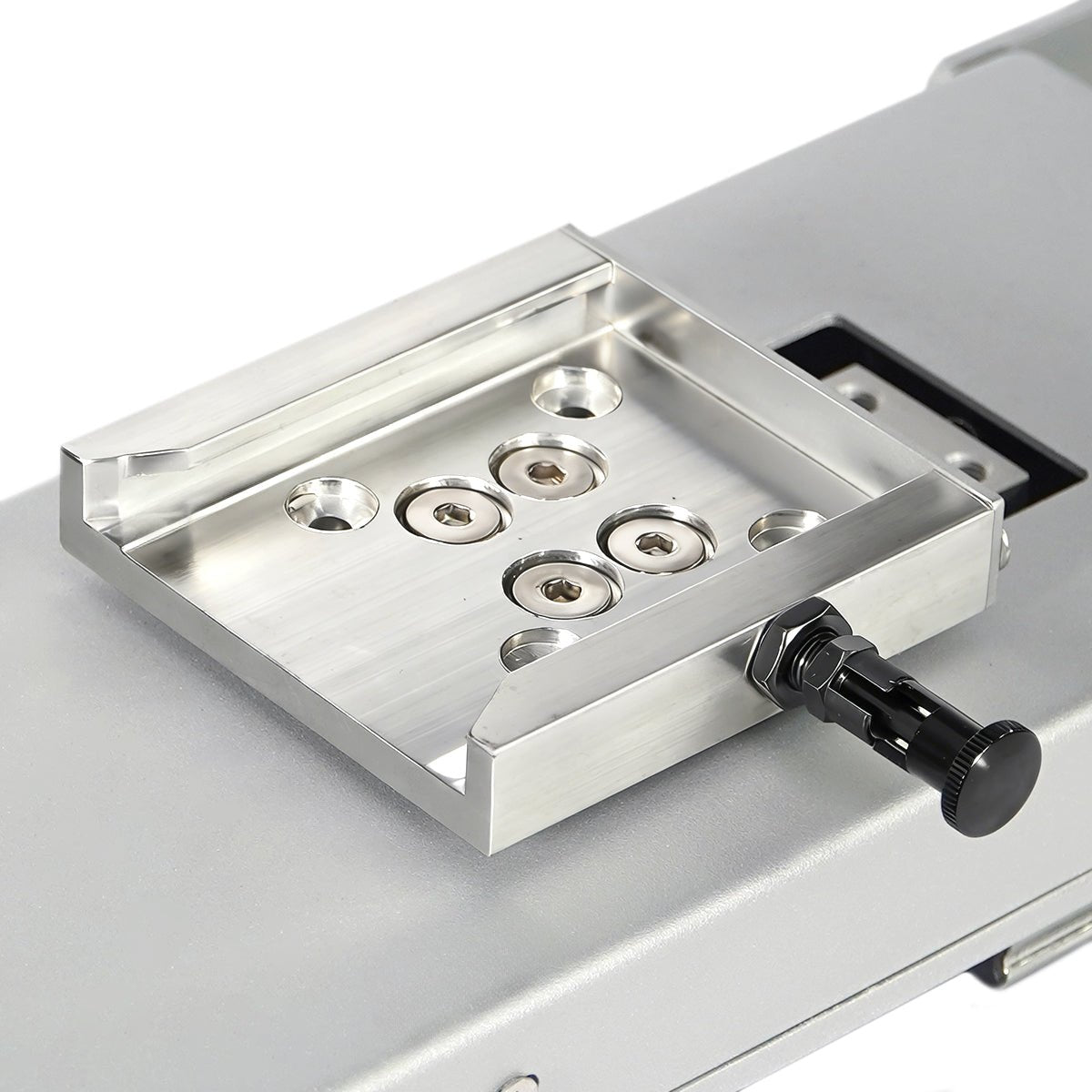

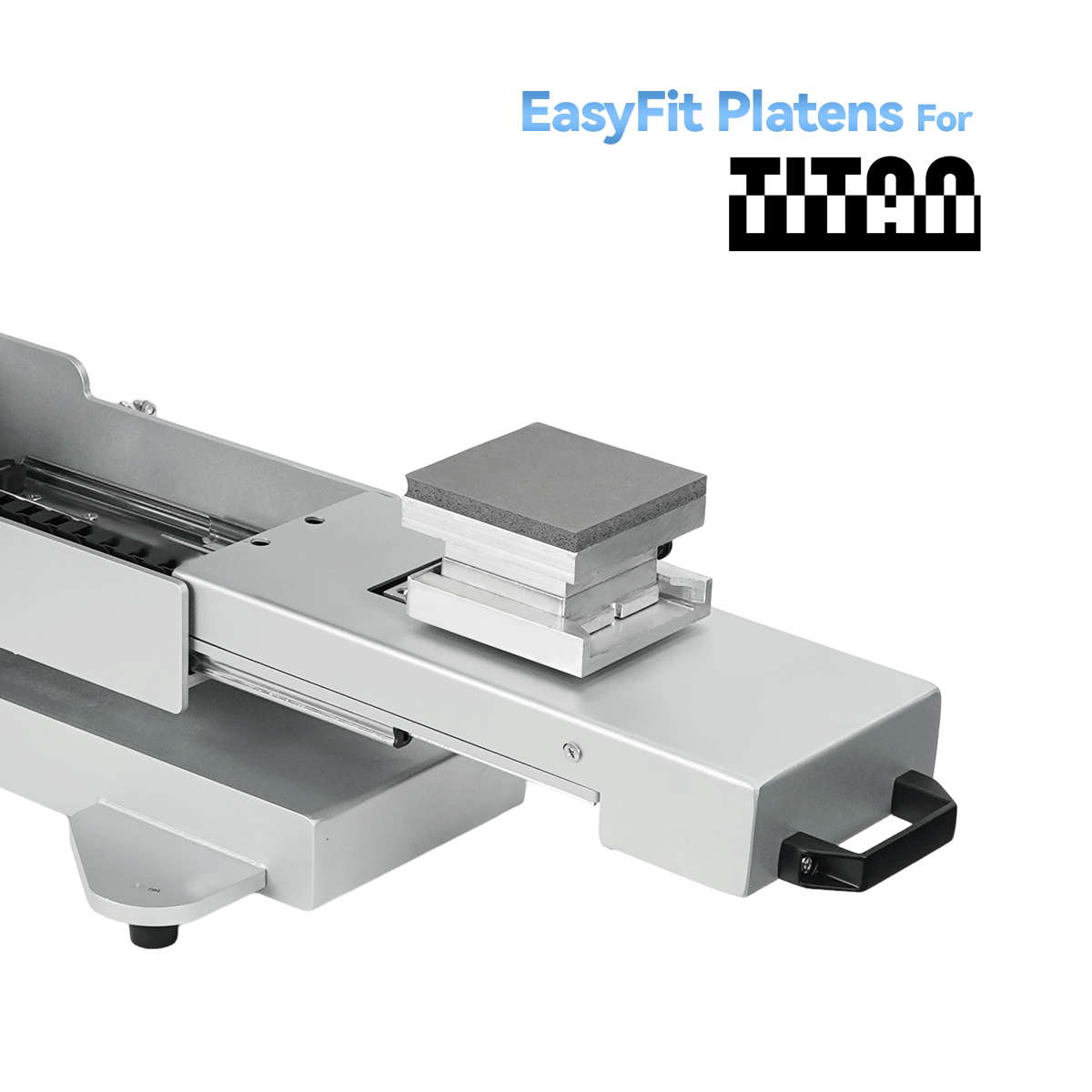

- Up to 12 interchangeable lower platens Up to 12 interchangeable lower platens | Sleeves, pant legs, bags, labels, youth sizes and awkward placements. Platens sold separately.
