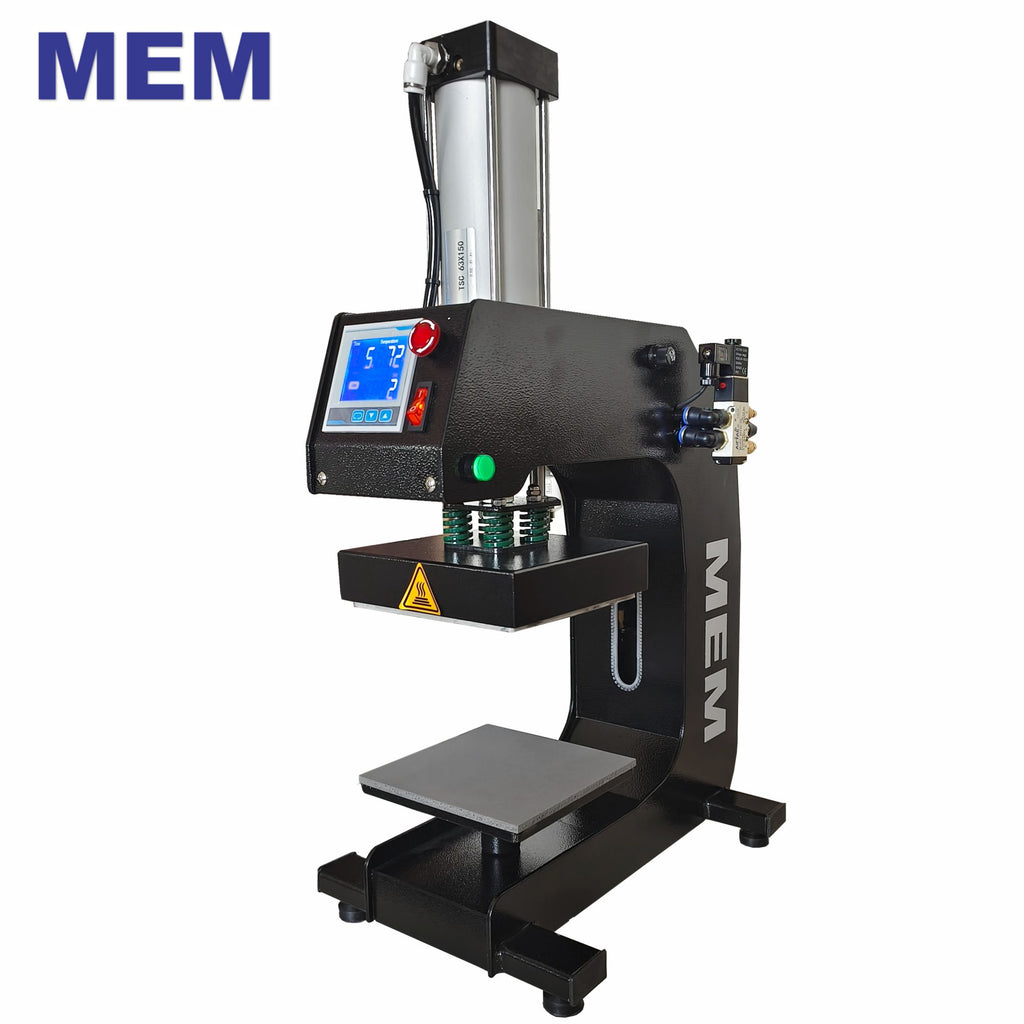

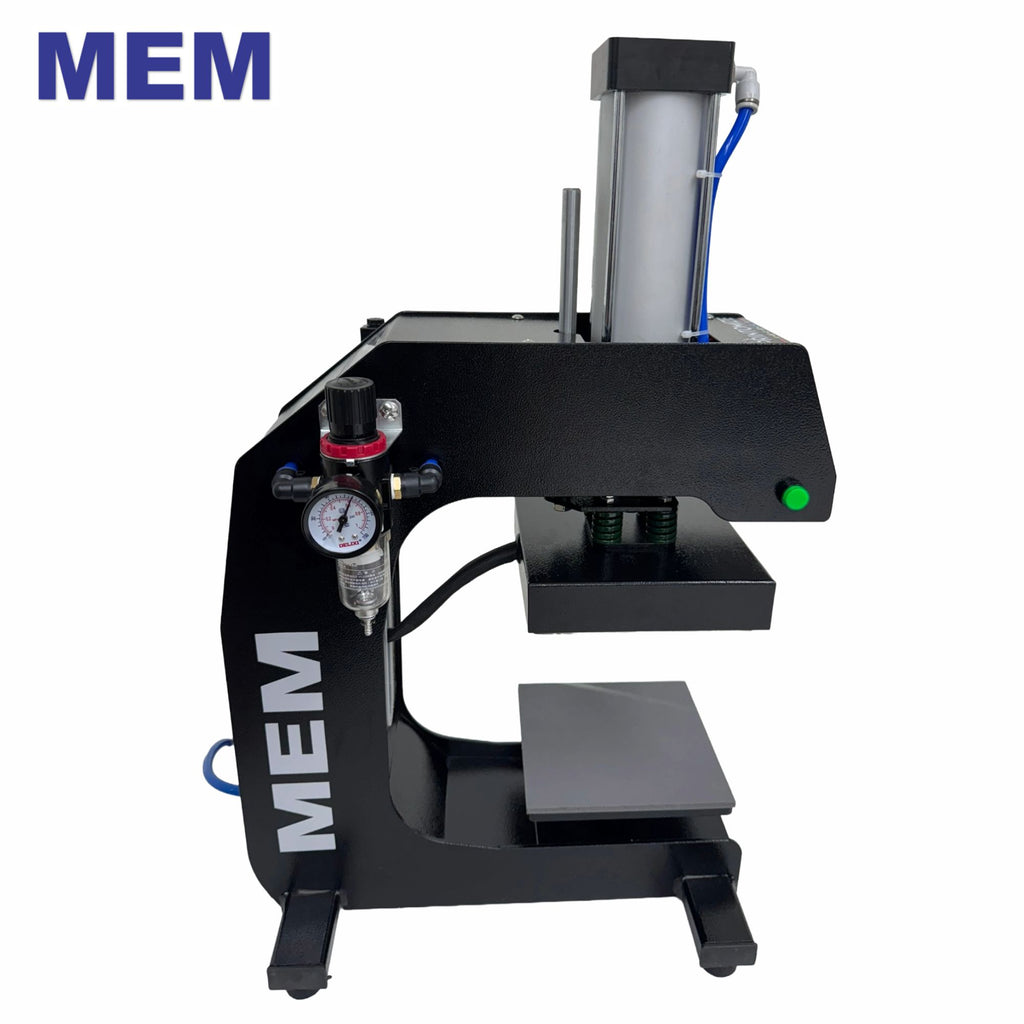

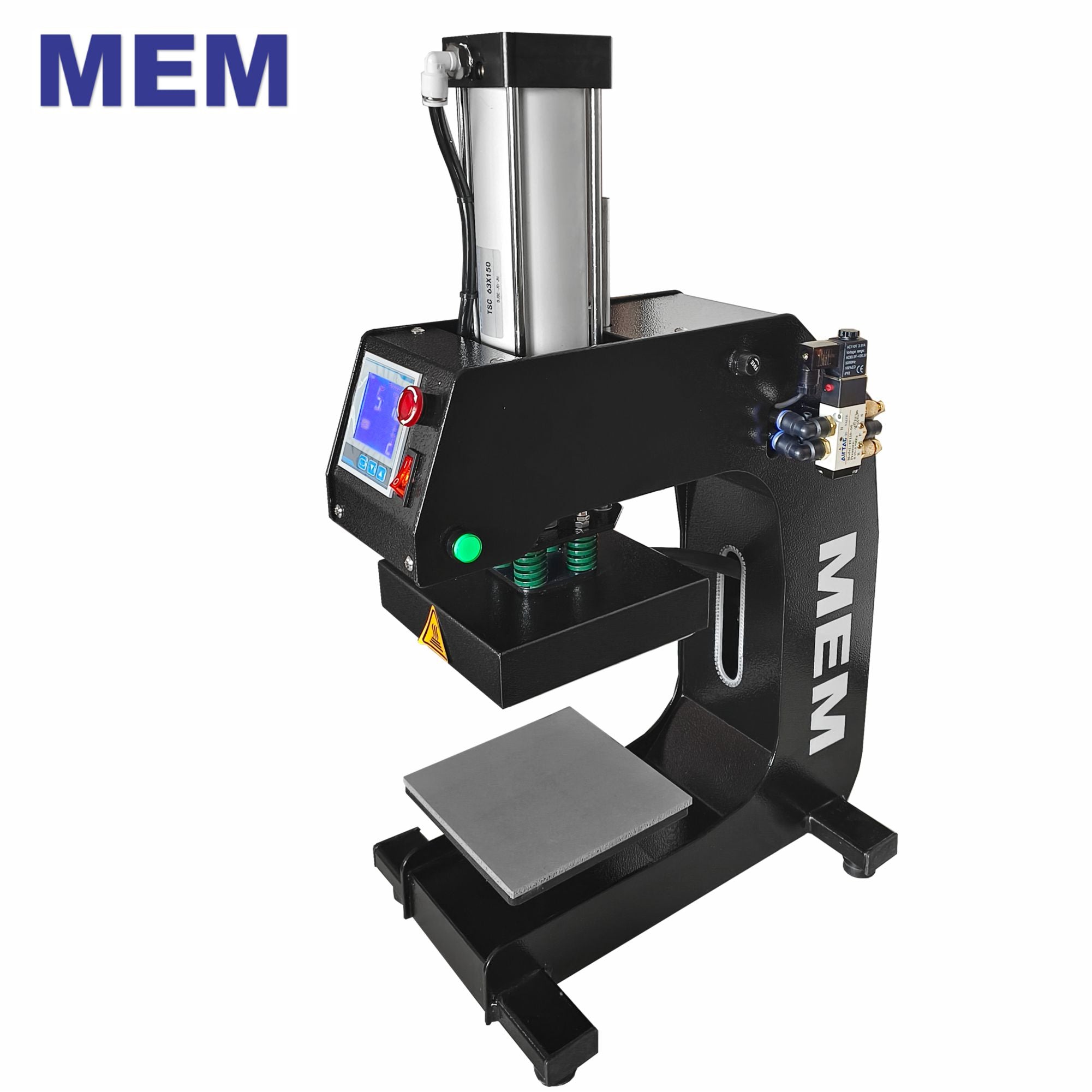

TQ1-1515 Small 6" x 6" Label Pneumatic Heat Press Machine

$1,195.00

    DESCRIPTION

    TQ1-1515 Pneumatic Dual-Station Heat Press – 6" x 6"

    Product Highlights

    • Designed for inner-neck labels, left-chest logos, and other small-format transfers
    • Dual-station system for faster production and continuous workflow
    • Heavy-duty industrial-grade pneumatic construction
    • Includes 6" x 6" and 3" x 3" interchangeable platens
    • Thick cast-aluminum heat plate for consistent, even heat
    • Self-pressure balancing system for uniform transfers
    • Teflon-coated heating plate helps prevent sticking or scorching

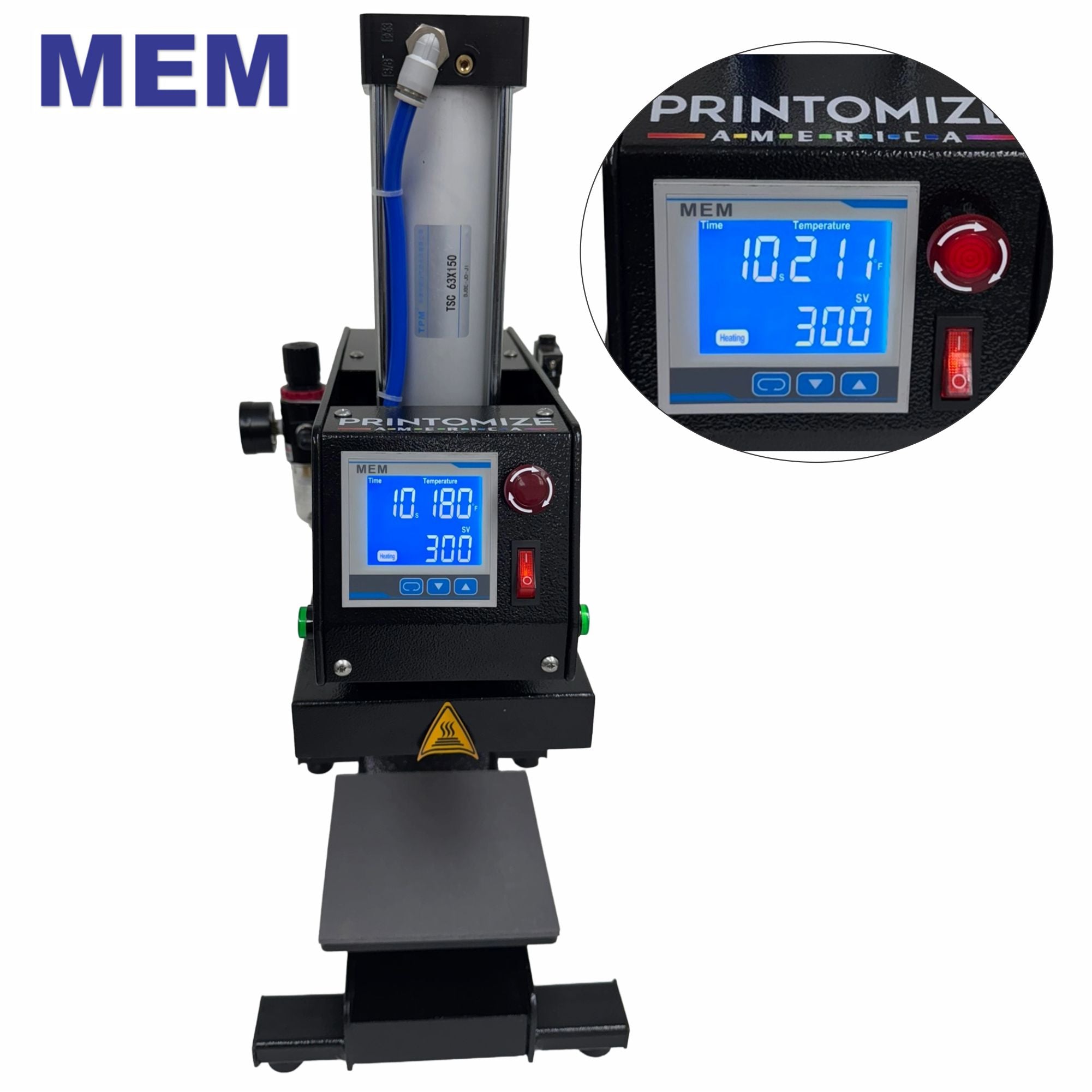

    • Easy-to-read LCD controller displays time and temperature simultaneously
    • Certified 5CE & ROHS compliant
    • Powered by an external air compressor (10-gallon minimum, not included)

    Key Features

    • Max pressure: 0.8 MPa (120 PSI)
    • Max temperature: 500°F
    • Time range: 0–999 seconds
    • Built for high-volume, repetitive label and logo applications
    • Compact footprint, ideal for shop tables or production stations

    Included in the Box

    • 6" x 6" platen
    • 3" x 3" platen
    • 8mm air line hose
    • 8mm to 1/4" compressor connection kit

    Specifications

    Electrical

    • Voltage: 110V
    • Current: 10A
    • Power: 600W

    Machine Dimensions

    • Dimensions: 16" x 11" x 24"
    • Weight: 33 lbs

    Packaging

    • Box size: 18" x 13" x 23"  / 42 lbs

    Ideal For

    • Apparel relabeling
    • Branding programs
    • Uniform programs
    • On-demand short runs
    • High-volume production environments
    • Warranty

    Limited Warranty

    This product comes with a Limited Warranty covering factory-original parts from the date of purchase.*

    Who it Covers

    Original purchaser only (non-transferable)

    Shipping Responsibility

    • Customers are responsible for shipping to and from Atlanta Vinyl (Smyrna, GA) or our partner Printomize America (Torrance, CA).

    Self-Installation

    Customers may install parts themselves, but Atlanta Vinyl is not responsible for damage caused during self-repair.

    What’s Covered

    • Heat Platen: 2-Year Limited Warranty
    • Frame, Controller, Sensors, Switches, Piston, Air System (if applicable): 1-Year Limited Warranty

    What’s NOT Covered

    • Fabric platen covers or Teflon sheets
    • Shipping or cosmetic damage caused by carriers
    • Damage from fire, flood, lightning, or improper electrical current
    • Misuse, neglect, improper installation, or unauthorized modifications
    • Normal wear and tear

    Important Terms

    • Each defective part may be replaced once during the warranty period.
    • Replaced parts must be returned within 15 business days at the customer’s expense; otherwise, the customer will be billed.
    • Warranty is void if the product is altered, modified, or repaired without prior authorization.
    • Defective on Arrival (DOA): 10 days from delivery. Missing or non-working parts will be covered by Atlanta Vinyl. After 10 days, customer is responsible for parts and shipping.
    • Replacement equipment is provided only if the original cannot be repaired and will be new or refurbished to like-new condition.
    • If the original shipping crate is unavailable, a new crate can be purchased for $500 plus shipping.
    • Equipment must be returned safely; warranty does not cover shipping damage caused by poor packing.
