Description

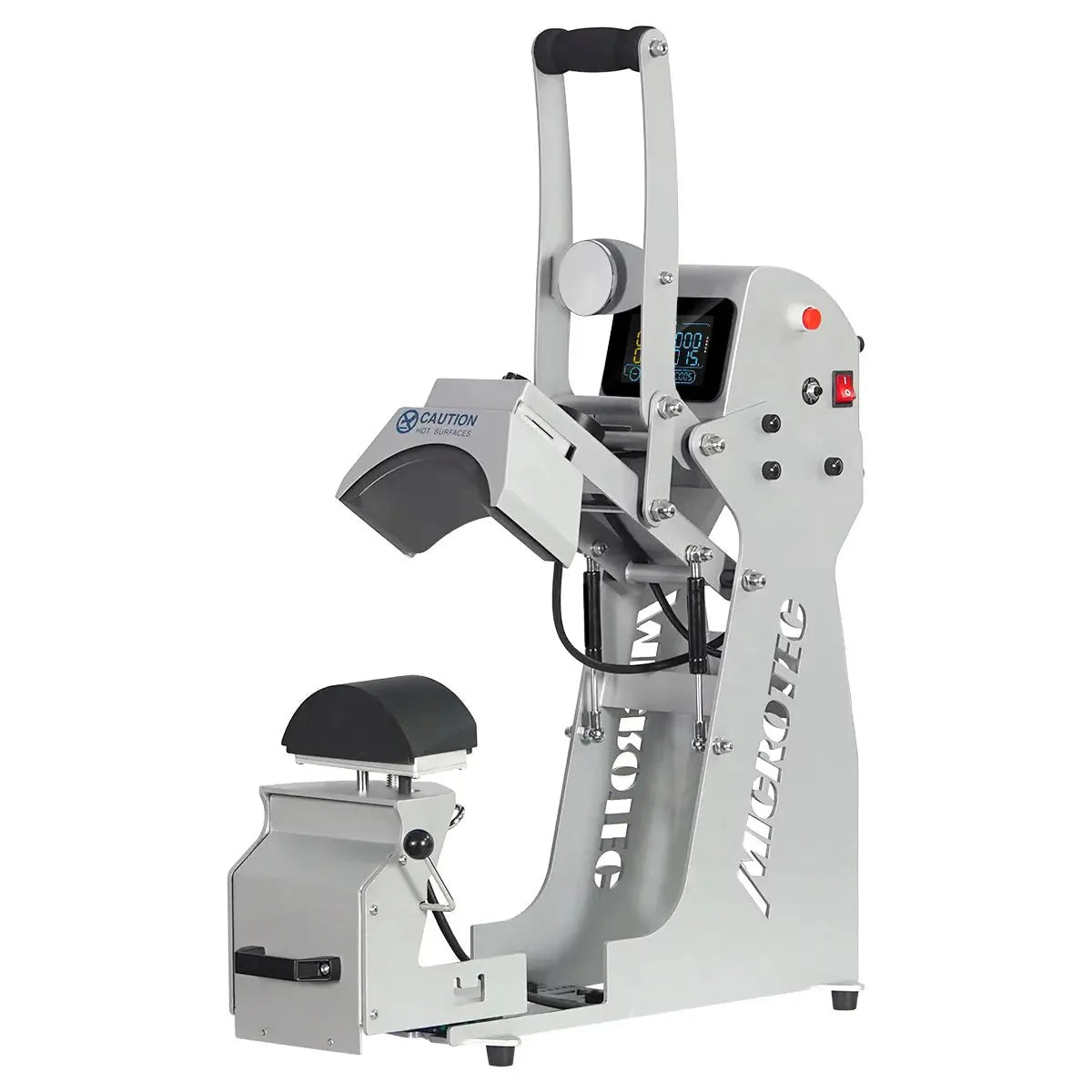

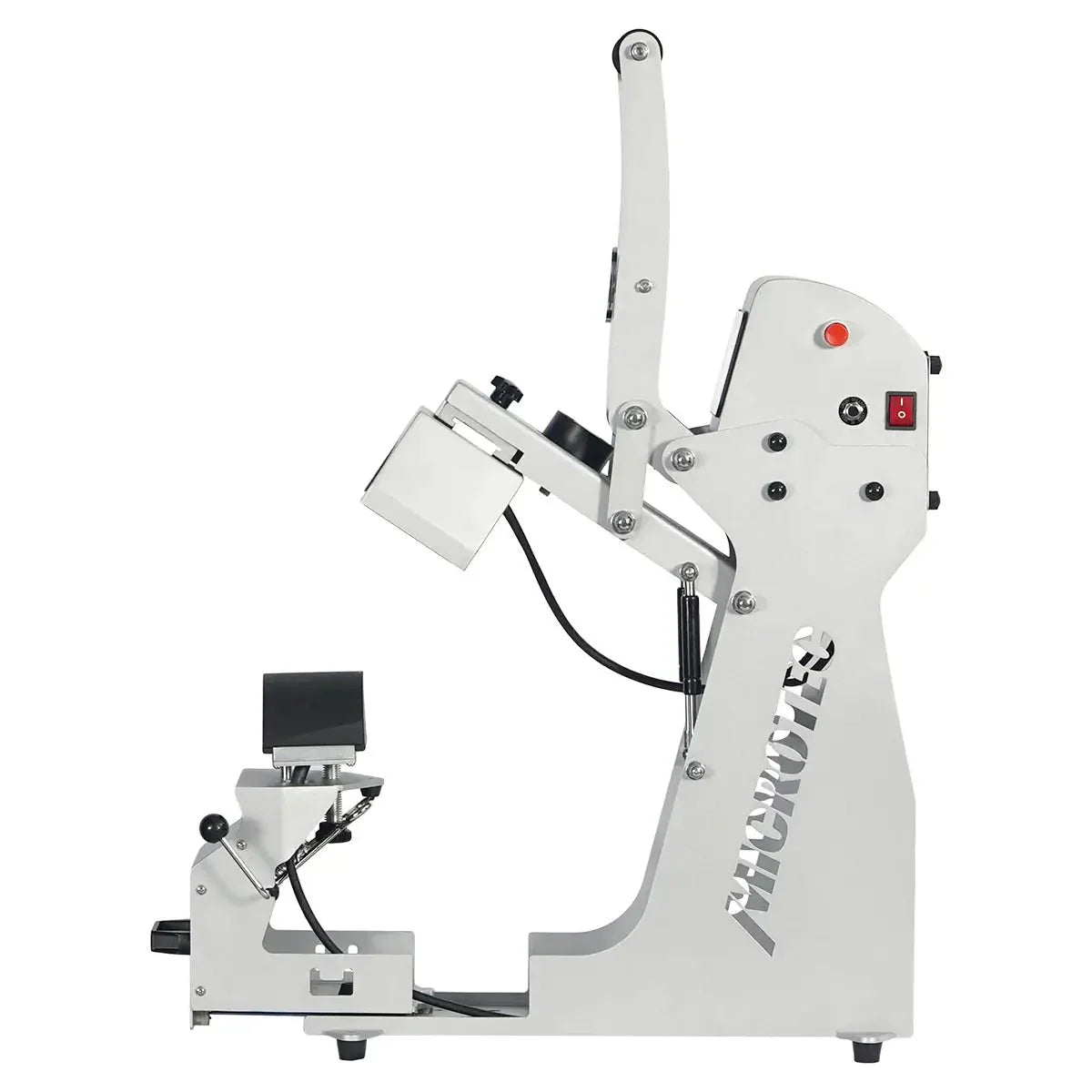

The TITAN TCap-S2 Cap Heat Press is built for decorators who need better control, cleaner application, and more consistent results. Designed for modern cap decoration, it provides improved access and easier positioning for structured caps, specialty patches, and heat-sensitive materials.
To handle a wider range of cap styles, the machine comes standard with four interchangeable silicone pads for better fit and support across different cap profiles. It also helps reduce common issues such as heat marks, scorching, misalignment, and interference from the cap bill.

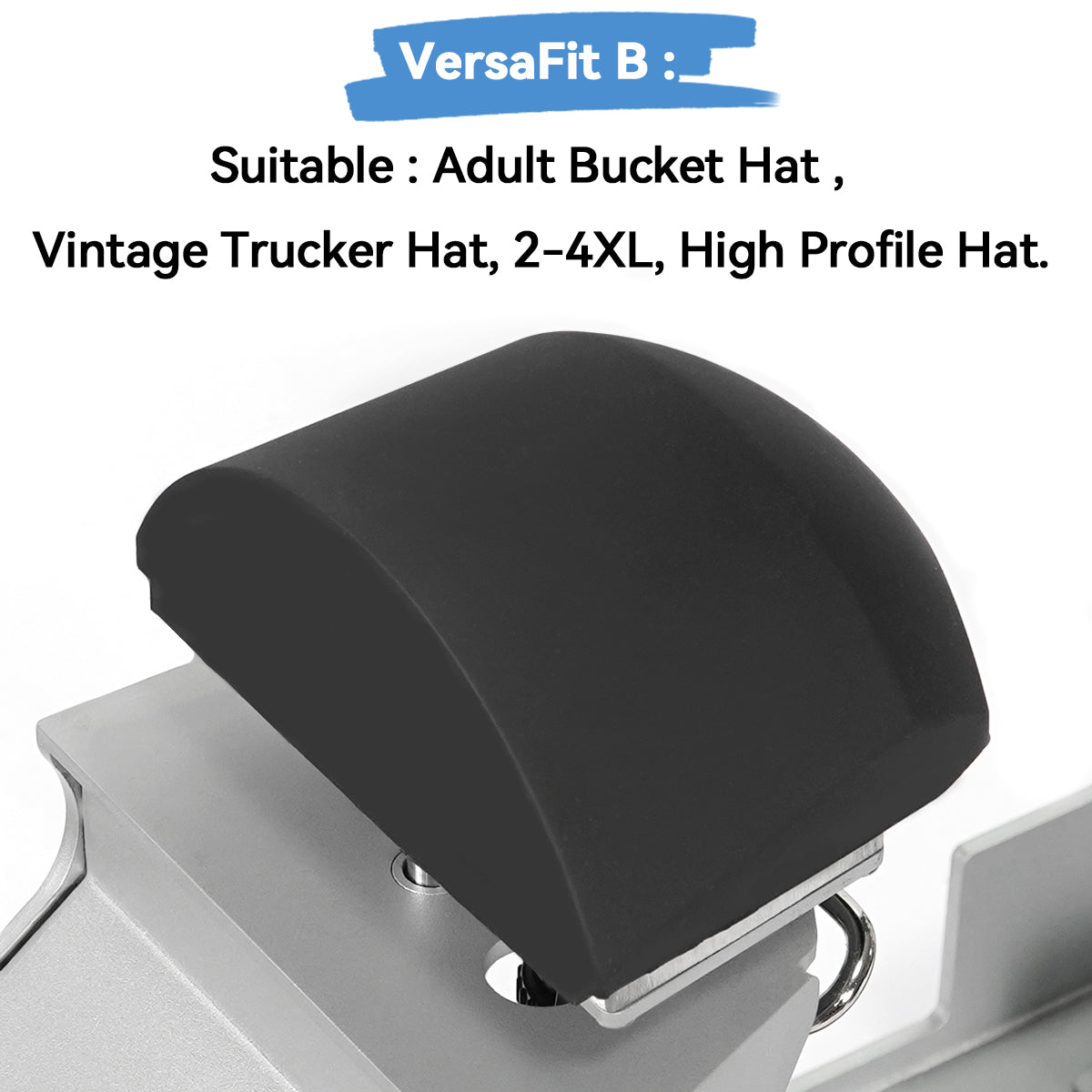

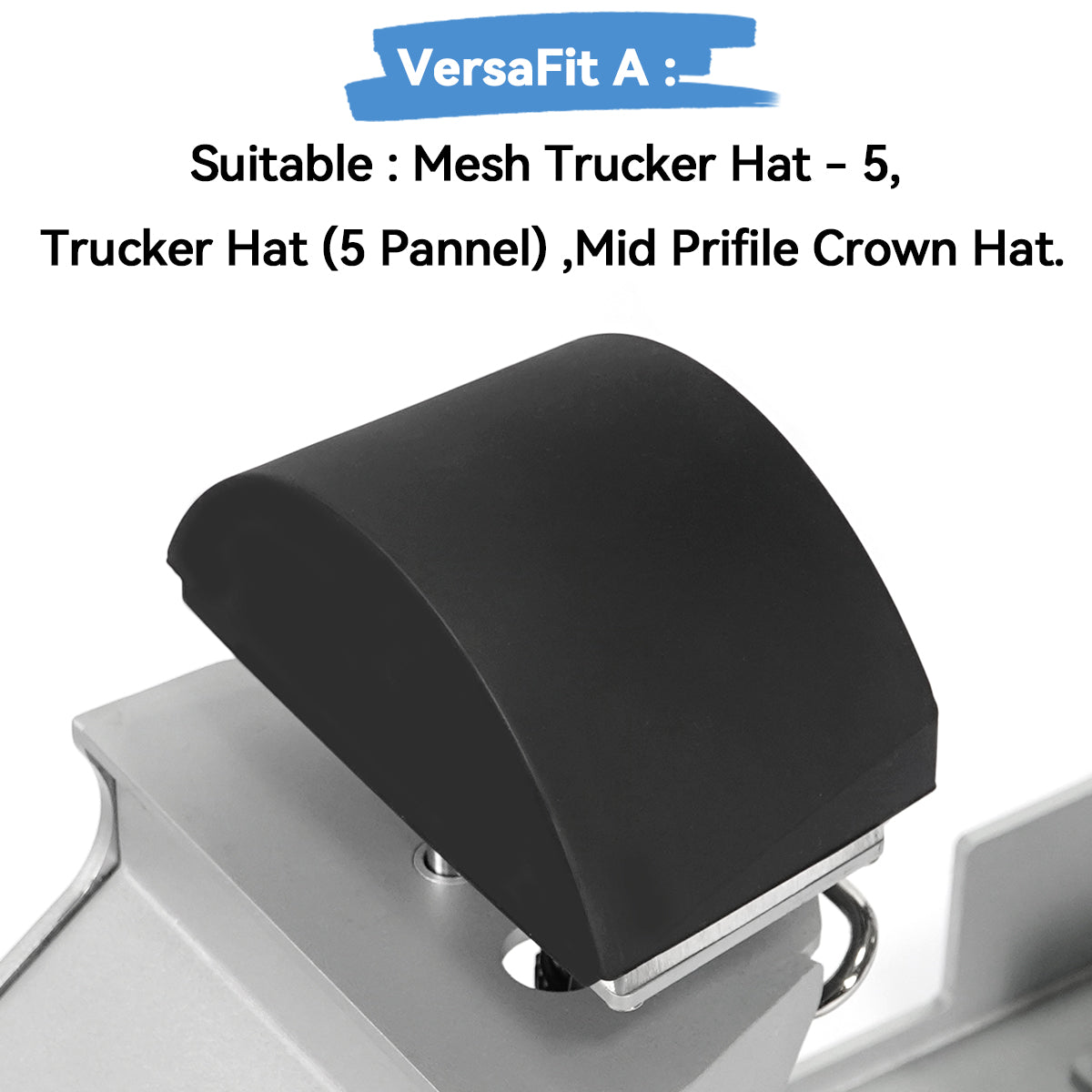

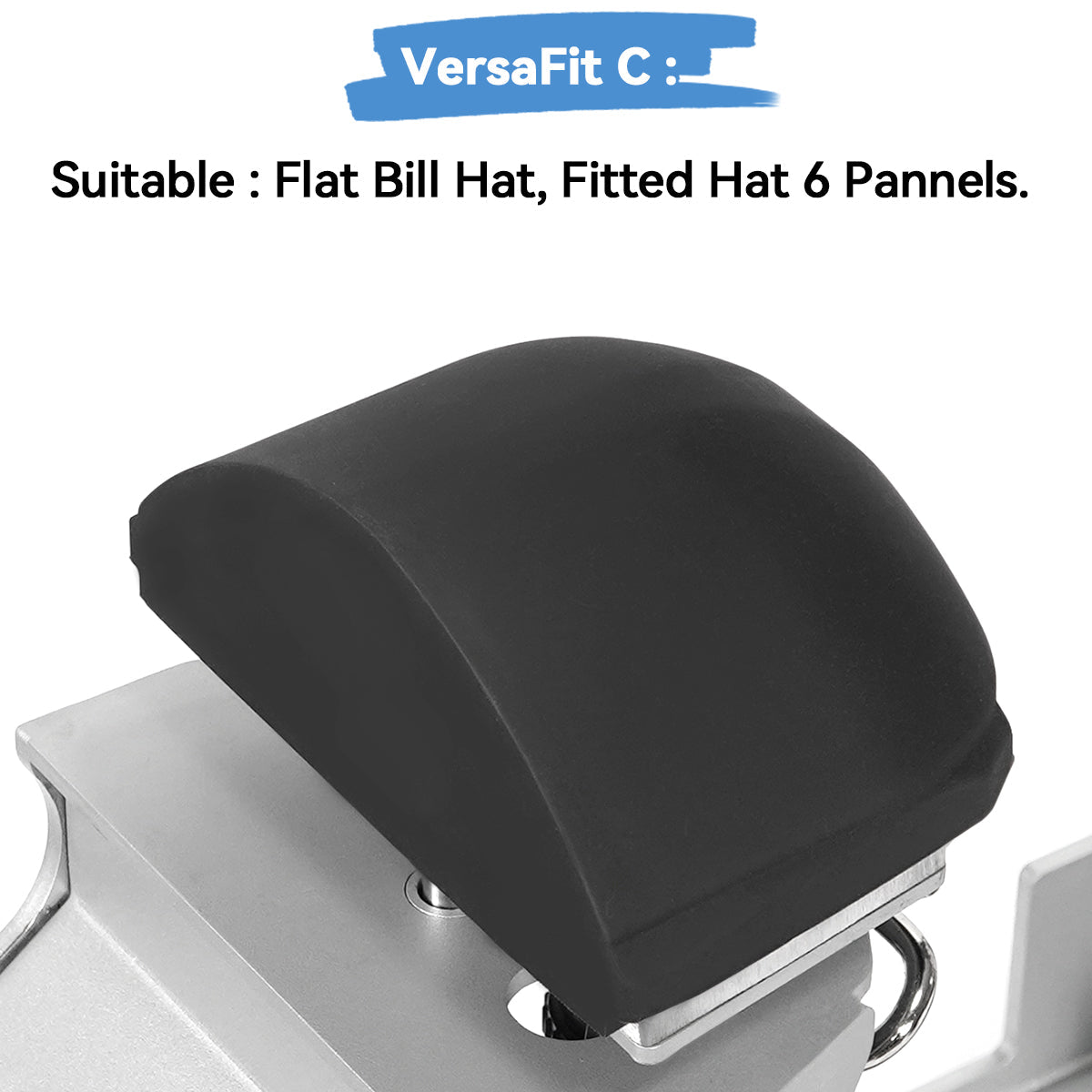

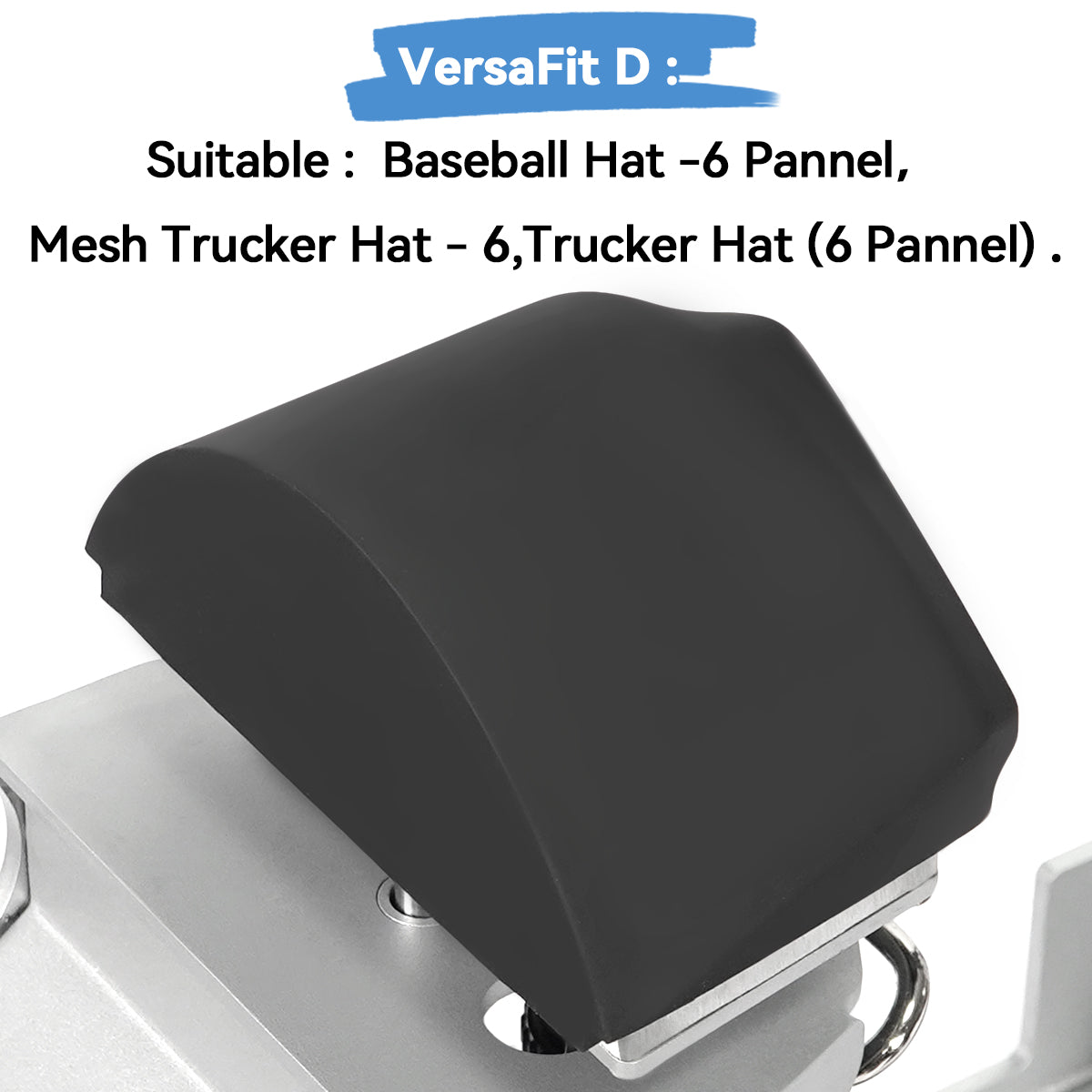

Includes four interchangeable silicone cap pads, allowing your cap heat press to handle more cap styles and maximize its overall versatility.

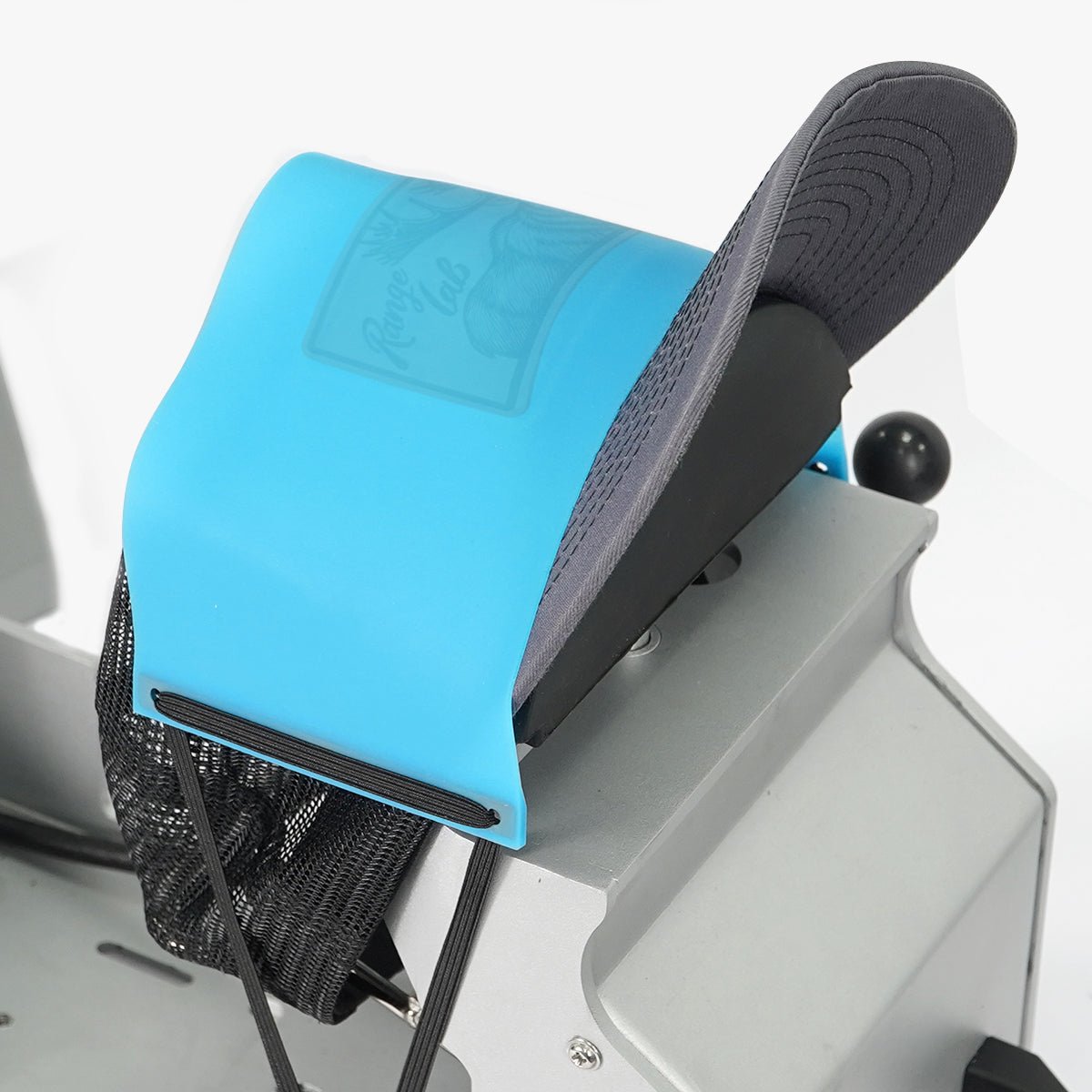

The TCAP HeatVeil™ attachment removes the need for heat-resistant tape, allowing for faster application and cleaner results by helping prevent tape marks after transfer.
For added versatility, the TCap-S2 can also be equipped with an optional 6" x 6" upper and lower heated label platen. This accessory is sold separately and is "not included" with the machine, while expanding the machine’s capabilities for label pressing and other small-format applications.
Specifications
| Workstation Count | Single |
|---|---|
| Platen Size | 3.65" x 7" |
| Production Capacity | Up to 45 units/hour* |
| Temperature Range | 32-446°F |
| Time Range | 0-999 seconds |
| Air Requirements | 0.0 CFM (no compressor needed) |
| Power Consumption | 1200W |
| Voltage | 120V |
| Amps | 10A |
| Machine Dimensions | 9" x 22" x 26" |
| Shipping Size | 26" x 14" x 29" |
| Net Weight | 52.8 lb |
| Shipping Weight | 66 lb |
| Method of Operation | Auto-Open & Slide-Out |
| Machine Line | TITAN |
* Manufacturer figure, calculated using DTF film. Actual output varies with operator, garment and artwork.
Key features
- Heated top and bottom Heated top and bottom | Both platens heat, so thick patches bond from both sides. On many patch jobs that cuts press time by more than half and reduces the scorching you get from holding a long dwell with top heat only.

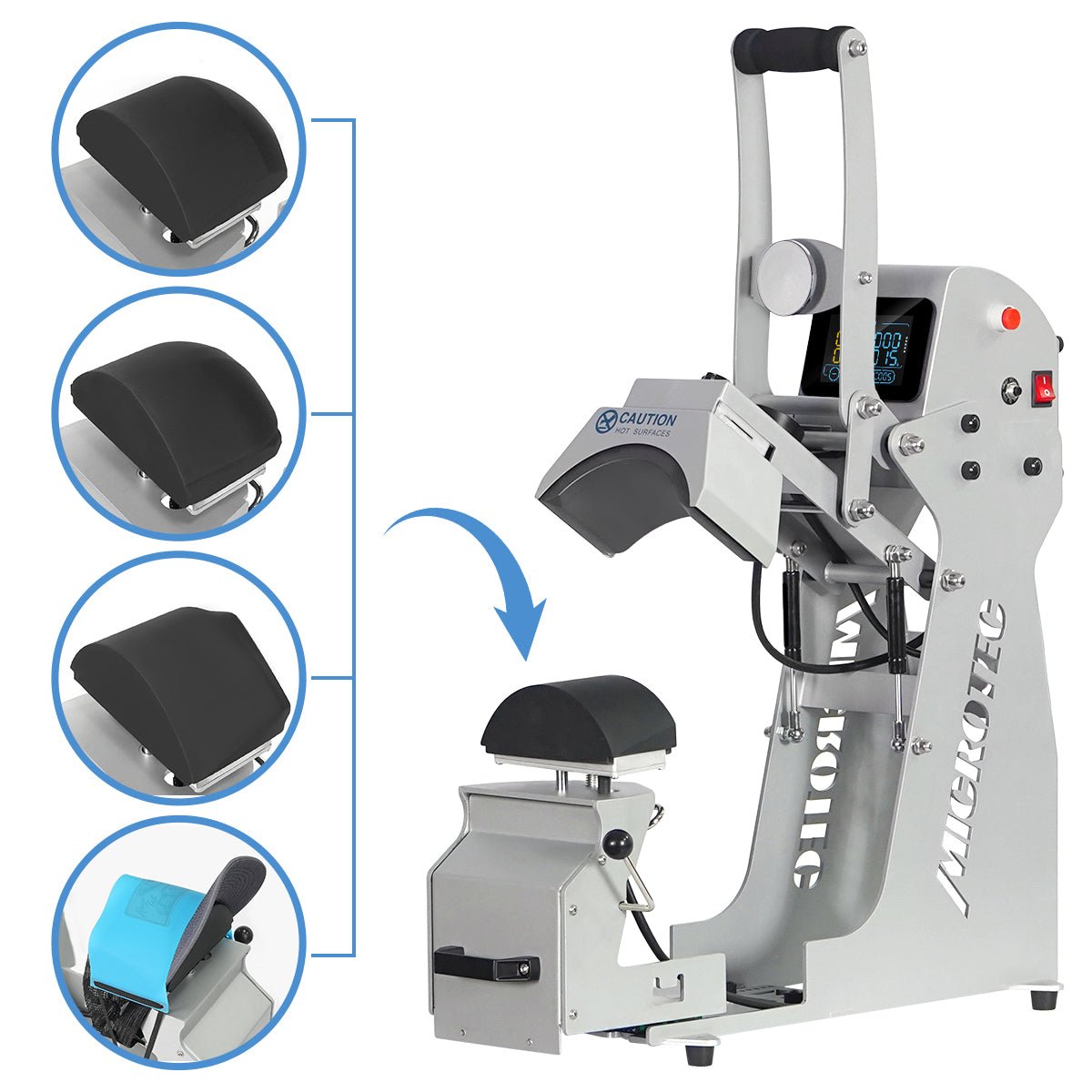

- Four interchangeable silicone cap pads Four interchangeable silicone cap pads | Different crown profiles and cap sizes without buying a second machine.
- Auto-open release Auto-open release | Opens at zero so you can cycle caps quickly.
- Slide-out lower platen Slide-out lower platen | Load away from the heat, then slide it home.

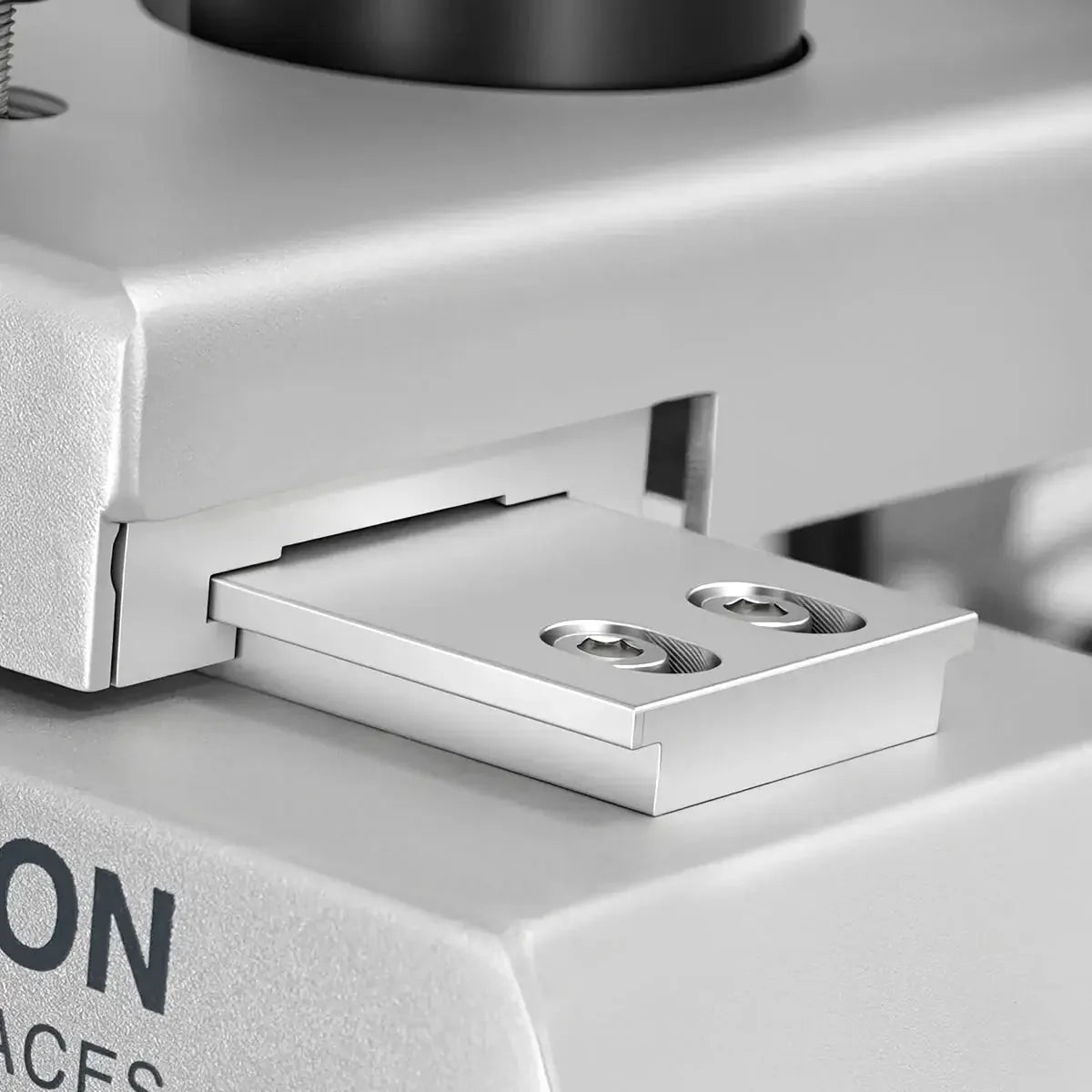

- Platens swap in minutes Platens swap in minutes | Move between caps and labels without downtime.
