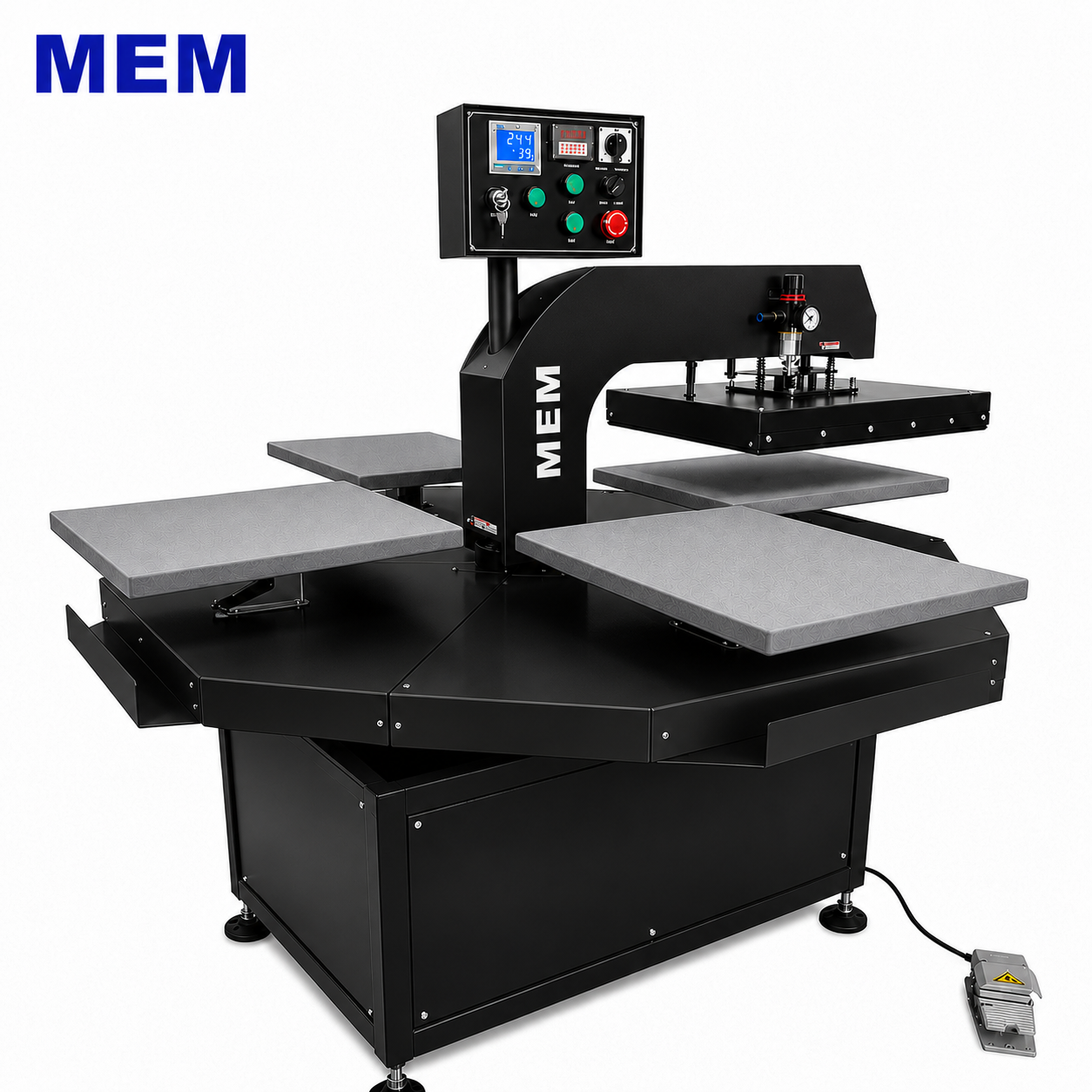

4 Station High Speed Carousel Heat Press

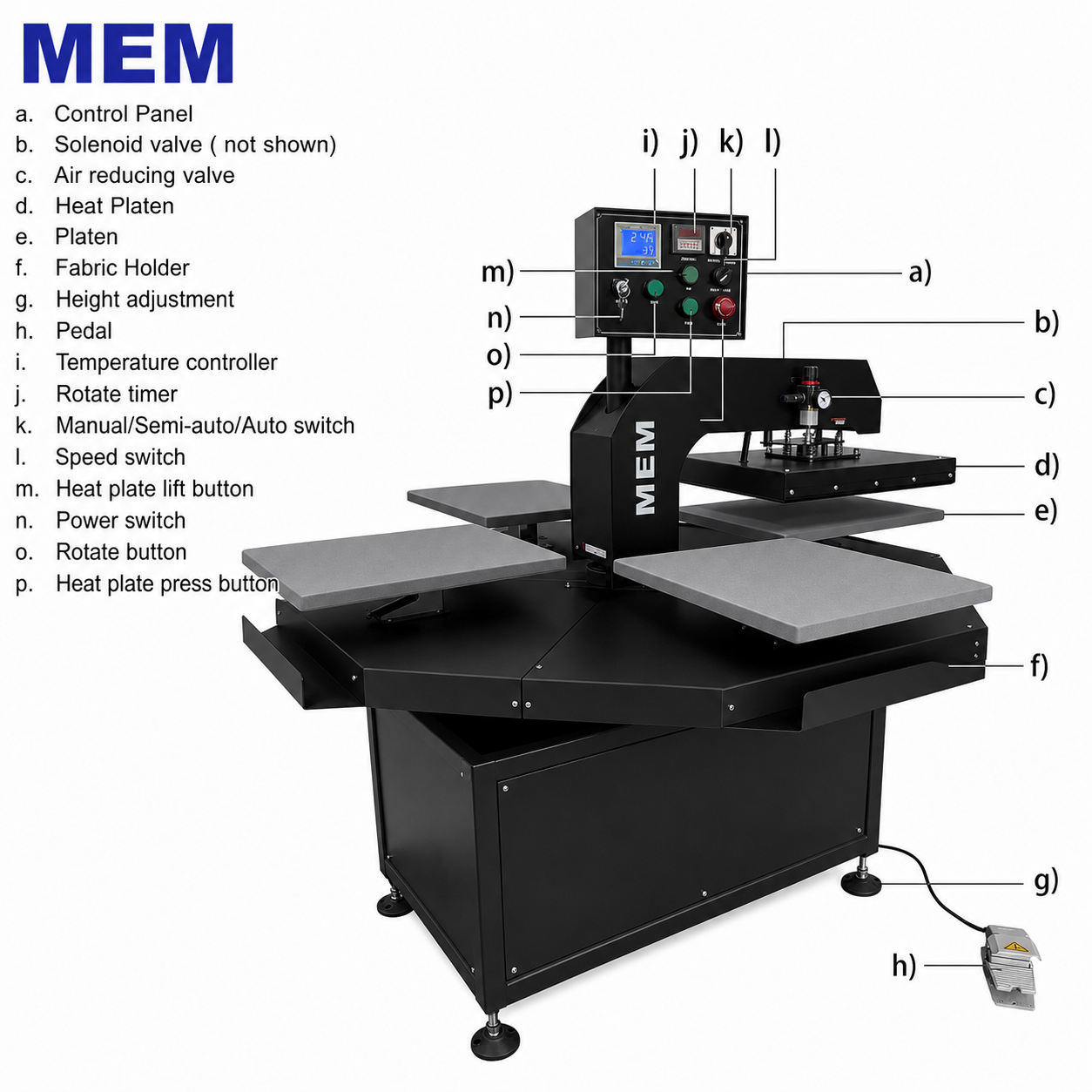

The design of the MEM four station presses combines a heavy-duty solid industrial grade pressing framework with high quality electric components. This provides the operator with the best possible features and equipment needed for today's various heat transfer applications. Using the MEM TZ-4050 four station heat press, all common heat transfer processes (flock, flex, sublimation, transfer, Inkjet-flex etc.) can be conducted professionally and with highest productivity. The desired settings can be set easily with the temperature controller. The pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be adjusted.
| Features: |
Specifications: |
- Industrial grade heavy duty heat press machine 16" x 20"
|
Model: |
TZ-4050 |
|
- Thick cast aluminum heat plate for evenly distributed temperature.
|
Electrical: |
220v , 2700w |
- 5CE & ROHS approved high quality label heat press machine
|
Max Temp: |
500°F |
- 0.6 -0.7 MPa(120 PSI) for heavy pressure application.
|
Time Range: |
0-999sec |
- Self-pressure balancing system
|
Platen: |
4pcs 16" x 20" & 6" x 6" |
- Powered by an air compressor with a minimum of 800w 30L / 8 gallon ( Not included)
|
Dimensions: |
60" x 60" x 55" |
- Includes teflon sheet on the heat plate
|
Weight: |
800lbs |
- Lifetime factory on-line service
|
|
Crate Size: |
57" x 40" x 70" x 2 |
| |
|
Weight: |
1140lbs |
